Q345 Galvanized Dodecagonal Sub Transmission Steel Poles in 16M ~ 20M
| Material: |
Hot rolled steel, Q235,Q345,S235,S355,SS400,Gr 50
|
| Yield strength of Material: |
Minimum yield strength>=235n/mm2 for Q235, S235, and SS400
Minimum yield strength>=345n/mm2 for Q345 S355 and Gr 50
|
| Pole’s height: |
16m –20m
|
| Length of one part |
Within 14m once forming without slip joint
|
| Wall thickness: |
2.5mm-30mm
|
| Pole's Shape Can be made: |
Round, Polygonal, Taper Octagonal, Taper round, Round conical, Taper Square, Square.
|
| Power: |
10~500KV (10KV, 13.8KV,33KV, 35KV, 66KV, 110KV,132KV, 220KV, 230KV, 330KV, 500KV or Others )
|
| Welding |
Advanced submerge-arc welding and CNC welding equipment. It has past flaw testing, internal and external double welding makes the welding beautiful in shape. It confirms with the international welding standard of CWB and AWS D 1.1
|
| Galvanization: |
Hot dip galvanization with thickness of 80-100µm average in accordance with Chinese standard GB/T 13912-2002 or American standard ASTM A123, ISO: 2626-1985.
|
| Manufactury Capacity Per Day: |
250 pcs
|
|
Wall Thickness Tolerance:
|
+- 0.1mm from 2.3mm to 4mm. +- 0.2mm from 5mm to 20mm. +- 0.5mm from 22mm to 30mm
|
| Surface treatment 1: |
Black pole, Rough pole
|
| Surface treatment 2: |
Hot dip Galvanizing antirust.
|
| Surface treatment 3: |
Hot dip galvanizing with powder coating
|
| Temperature range |
-35 °C~+45 °C
|
| Wind Speed: |
Against wind pressure of 120Km/h to 180Km/h, it according to client’s design.
|
| Base plate mounted |
Base plate is square, Polygonal or round in shape with slotted holes for anchor bolt and dimension as per customer’s requirement.
|
| Quality Control |
According to ISO9001-2008 requirements.
|
| Certificates |
ISO9001-2008, SGS Audited Supplier, The AAA grade certificate of goodwill
|
| Other |
Less land occupation & easy maintenance |
Description:
The Galvanized Electrical Power Steel Pole widely used in electrical power transmission line and distribution industry. In order to meet the increasingly higher demand for Electrical Power Pole, our company design and produce many kinds of steel poles for the power transmission and distribution system used to satisfied different customer's request.
After - Sales Service
Our staff supply excellent after service, track and get the product information after our client got the products. We asked our client to fill a “Survey form for Satisfaction degree from Client”. We will solve the problems from clients in 24 hours, and we improve the quality and working method according to the client’s good suggestions.
Standard Accessories
- Top Cap
- Base plate
- Bottom strip
- Standard hole
- Climbing rung
- Anchor bolt
- Bituminous protection
- Painted marking
- Removable ladder
- Grounding Nuts & Bolts
Production Process
- Raw material test
- Cutting
- Bending
- Welding (longitudinal )
- Dimension verify
- Flange welding
- Hole drilling
- Calibration
- Deburr
- Galvanization or powder coating or Bituminous painting
- Recalibration
- Packages
Material Test:
1. All of our materials are purchased from famous mill factory to assure the quality.
2. A mill certificate issued by the mill factory with stamp and signature must be provided before unloading the material in our factory;
3. Before putting into production, all the material must pass the chemical and physical analysis to make sure that they have met the requested strength and components.
Terms and Conditions
1. Price Term: EXW, FOB, CFR or CIF.
Ø EXW: Poles Cost
Ø FOB : Pole Cost + Land Transportation + Fee on Port
Ø CFR : Pole Cost + Land Transportation + Fee on Port + Sea Freight
Ø C I F : Pole Cost + Land Transportation + Fee on Port + Sea Freight + Insurance.
2. MOQ: One 40FT Container.
3. Payment Term: Typically 30% by T/T as a deposit, balance by T/T or L/C at sight before shipment. Other payment way can be negotiated.
4. Delivery Time: 15 working days per container after PI / drawing / prepayment confirmed.

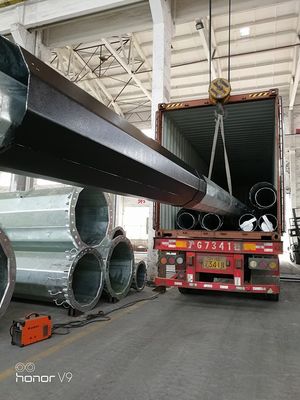

5. Package: Normally wrapped by plastic bags or burlap cloth at the top and bottom,or according to clients’ requirement.
Company Introduce:
Through the efforts of the company staff, the support and cooperation from all over the world. The company's products have been exported to the Philippines, Malaysia, Australia, America, Africa, Latin America, Panama, Suriname, Costa Rica, Colombia, Jordan, Nigeria, etc. We have good export experience and with 1 container export to World per day on average.
