Conical shape galvanised steel posts , 9M Height galvanized fence pipe with Wood Packing

Certification
China Jiangsu Baojuhe Science and Technology Co.,Ltd certification
China Jiangsu Baojuhe Science and Technology Co.,Ltd certification
I'm Online Chat Now

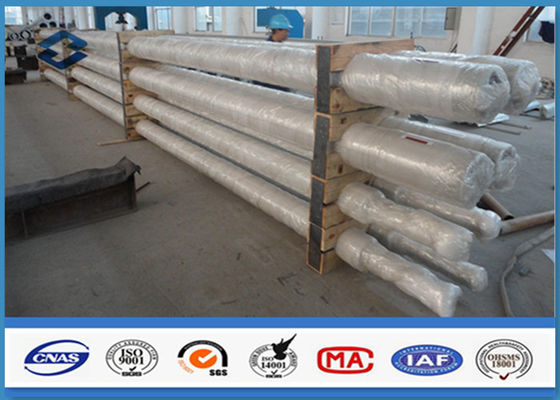

Conical shape galvanised steel posts , 9M Height galvanized fence pipe with Wood Packing

Conical shape galvanised steel posts ,  9M Height galvanized fence pipe with Wood Packing
Conical shape galvanised steel posts ,  9M Height galvanized fence pipe with Wood Packing Conical shape galvanised steel posts ,  9M Height galvanized fence pipe with Wood Packing Conical shape galvanised steel posts ,  9M Height galvanized fence pipe with Wood Packing Conical shape galvanised steel posts ,  9M Height galvanized fence pipe with Wood Packing Conical shape galvanised steel posts ,  9M Height galvanized fence pipe with Wood Packing

Large Image :  Conical shape galvanised steel posts , 9M Height galvanized fence pipe with Wood Packing

Product Details:
Place of Origin: China
Brand Name: JSBS
Certification: ISO9001:2008
Model Number: BS/GS - 14
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: Use sack package the poles or as customer’s request.
Delivery Time: 15 ~ 25 work day
Payment Terms: L/C, T/T, Western Union, D/P
Supply Ability: 2500 Ton per month
Detailed Product Description
Product Name: Galvanized Steel Pole Height: 9M
Material: Steel Q355 Warrantly: More Than 20 Years
Surface Trement: Hot Dip Galvanized. Galvanized: ASTM A 123
Shape: Conical Zinc Coating: ≥ 86 Microns
High Light:

galvanized steel post

,

galvanized metal pipe


Hot Dip Galvanized Conical Steel Pole Metal Pole with Wood Packing

Specification


Steel Yield Strength(MPa) standard Standard Title Metallic element Content
main ingredient Q355 355 for Thickness<=16

GB/T 1591-2008
(ASTM A572/A572M-15 ,EN10025 S355N)

High strength low alloy structural steels C ≤0.20
Mn ≤1.70
Si ≤0.50
Accessories Q235 235

GB/T 700-2006
(ASTM A283 Gr.B ,EN10025 S235JR)

Carbon structural steels
P ≤0.035
S ≤0.035




Welding Standard Standard Title

Pole shafts&multi-sided tubular
Cross arms&all accessories

AWS D1.1/D1.1M:2010 Structural Welding Code-Steel
Welding wire AWS D1.1/D1.1M:2010 Structural Welding Code-Steel




Hot dip galvanizing Standard Steel thickness/mm Mean coating thickness/μm Metallic element Content
Pole shafts,cross arms&bolted on accessories ASTM A123/A123M-15 AS/NZS 4680 >6 85 Mn 0.25%-0.40%
<3-6 70
1.5-3 55 Cu <0.15%
<1.5 55
Bolts,nuts&washers

GB/T 5267.3-2008
(ISO 10684-2004)

_____ ≥ 54 P <0.025%
Foundation bolts ASTM A153/A153M-09 _____ ≥ 54 S <0.03%



Description


1. Our Poles are Non-Standard and normally design according to customer's request. And different specification poles with different price. On the other side, the price is according to each pole weight. The weighter the more expensive. So to save the cost, our factory has the professional technical team to design the practical poles and save the cost for our clients.

But to design the practical poles for customers use, normally we need customer to provide us some parameter, like as following :

-  Pole top design load
-  Where is the position of the load , the distance from the top
- The wind Speed
-  How will the wire distribute
-  Pole type with Burial Type or Base Plate type
-  The connections mode , use slip joint or flange
-  and others we can further more discuss when we need.


Production Process

  • Raw material test
  • Cutting
  • Bending
  • Welding (longitudinal )
  • Dimension verify
  • Flange welding
  • Hole drilling
  • Calibration
  • Deburr
  • Galvanization or powder coating or Bituminous painting
  • Recalibration
  • Packages

Conical shape galvanised steel posts ,  9M Height galvanized fence pipe with Wood Packing 0


Our Services

1. Reply your inquiry in 24 working hours.

2. Experienced staffs answer all your questions in fluent English.

3. Customized design is available. UEM & UBM are welcomed.

4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.

5. Special discount and protection of sales are provided to our distributor.

6. Professional factory : We are manufacturer, specializing in producing all kinds of steel poles
for more than 10 years, competitive with good quantity.

7 Sample: We can send out sample for test in one week if the order quantity is big enough.
But the shipment charges is usually paid by your side, the charges will be rebounded when we have formal order.

8. As an honest seller, we always use superior raw material, advanced machines,
skilled technicians to ensure our products to be finished in high quality and stable feature.

Conical shape galvanised steel posts ,  9M Height galvanized fence pipe with Wood Packing 1


Terms and Conditions
1. Price Term: EXW, FOB, CFR or CIF.


Ø EXW: Poles Cost

Ø FOB : Pole Cost + Land Transportation + Fee on Port

Ø CFR : Pole Cost + Land Transportation + Fee on Port + Sea Freight

Ø C I F : Pole Cost + Land Transportation + Fee on Port + Sea Freight + Insurance.



2. MOQ: One 40FT Container.


3. Payment Term: Typically 30% by T/T as deposit, balance by T/T or L/C at sight before shipment. Other payment way can be negotiated.


4. Delivery Time: 15 working days per container after PI / drawing / prepayment confirmed.


5. Package: Normally wrapped by plastic bags or burlap cloth at the top and bottom,or according to clients’ requirement.



Conical shape galvanised steel posts ,  9M Height galvanized fence pipe with Wood Packing 2



Conical shape galvanised steel posts ,  9M Height galvanized fence pipe with Wood Packing 3
