Jiangsu Baojuhe Science and Technology Co., Ltd.
(previous name Jiangsu Bosheng Steel Poles Co.,Ltd)
Sales & Support:
|
Product Details:
Payment & Shipping Terms:
|
| Material: | Steel Q345 | Shape: | Octagonal |
|---|---|---|---|
| Tolerance: | +-2% | Min Yield Stress: | 345Mpa |
| Tensile Strength: | 470 Mpa ~ 630 Mpa | Finishing: | Hot Dip Galvanized Over 86mm |
| Galvanized: | ASTM A123 | Welding: | AWS D1.1 |
| Length: | 35FT / 10670mm | ||
| High Light: | wind turbine tower,wind turbine mast |
||

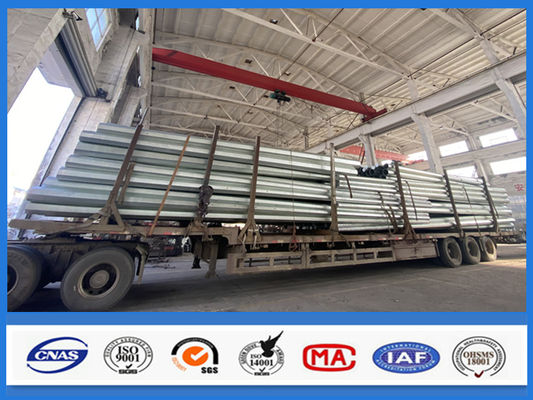

Q345 Material 35FT 3mm Thick Hot Dip Galvanized Electric Steel Poles
Specifications:
Steel Pole of National Electrification Administration
(PHILIPPINES)
Specification for Distribution Steel Pole 25FT, 30FT, 35FT, 40FT,45FT.
|
Height (ft) |
Thickness (mm) |
Butt Diameter (mm) |
Top Diameter (mm) |
Design Load (kg) |
Yield Stress (MPA) |
Zinc Coating (microns) |
| 25 | 2.5 | 152 | 120 | 300 | 345 | 86 |
| 30 | 3.0 | 226 | 127 | 500 | 345 | 86 |
| 35 | 3.0 | 248 | 127 | 500 | 345 | 86 |
| 40 | 3.0 | 317 | 127 | 500 | 345 | 86 |
| 45 | 4.0 | 328 | 127 | 750 | 345 | 86 |
Description
JSBS has passed the ISO 9001 quality management system. And we have our own Lab to do the chemical and mechanical test. For example, we test the raw material component content and the strength when we purchase the raw material. And if the material does not pass the test,we’ll not use it to produce our poles. So customers can be rest assured that we always manufacture the good quality poles. Meanwhile, our factory has the AMT ( Advanced Manufacturing Technology ), all the purposes are to provide high-quality good poles all over the world.
Production Process
Service
|
Best Service: -- Jiangsu Baojuhe Science and Technology Co., Ltd, which always been providing |
|
Quick Lead Time.--We inform the client the exact delivery time when they place the order and work Hard to |
| Unbeatable Prices-- Raw Material Cost + Hot Dip Galvanization Cost + Manufacturing Cost |
| Unbeatable Quality -- We always supply good quality also leading products to all of our customers. |
| Brand Awareness -- We achieve a good reputation among our clients and develop long term business. |
| Special Offers. -- We quote first and then you compare, finally choose us! |
| Special support.-- we have a policy term to support our customers for products also payment. |
Terms and Conditions
1. Price Term: EXW, FOB, CFR or CIF.
Ø EXW: Poles Cost
Ø FOB : Pole Cost + Land Transportation + Fee on Port
Ø CFR : Pole Cost + Land Transportation + Fee on Port + Sea Freight
Ø C I F : Pole Cost + Land Transportation + Fee on Port + Sea Freight + Insurance.
2. MOQ: One 40FT Container.
3. Payment Term: Typically 30% by T/T as a deposit, balance by T/T or L/C at sight before shipment. Other
payment way can be negotiated.
4. Delivery Time: 30 working days after PI/drawing/ prepayment confirmed.
5. Package: Normally wrapped by plastic bags or burlap cloth at the top and bottom, or according to clients’
requirement.
Company Introduce:
Through the efforts of the company staff, the support and cooperation from all over the world. Our company's products have been exported to the Philippines, Malaysia, Australia, America, Africa, Latin America, Panama, Suriname, Costa Rica, Colombia, Jordan, Nigeria, etc. We have good export experience and with 1 container export to World per day on average.
Contact Person: Mrs. Lisa Li
Tel: +86 13601538657
Fax: 86-510-80321126
