Home ProductsStreet Lighting Pole

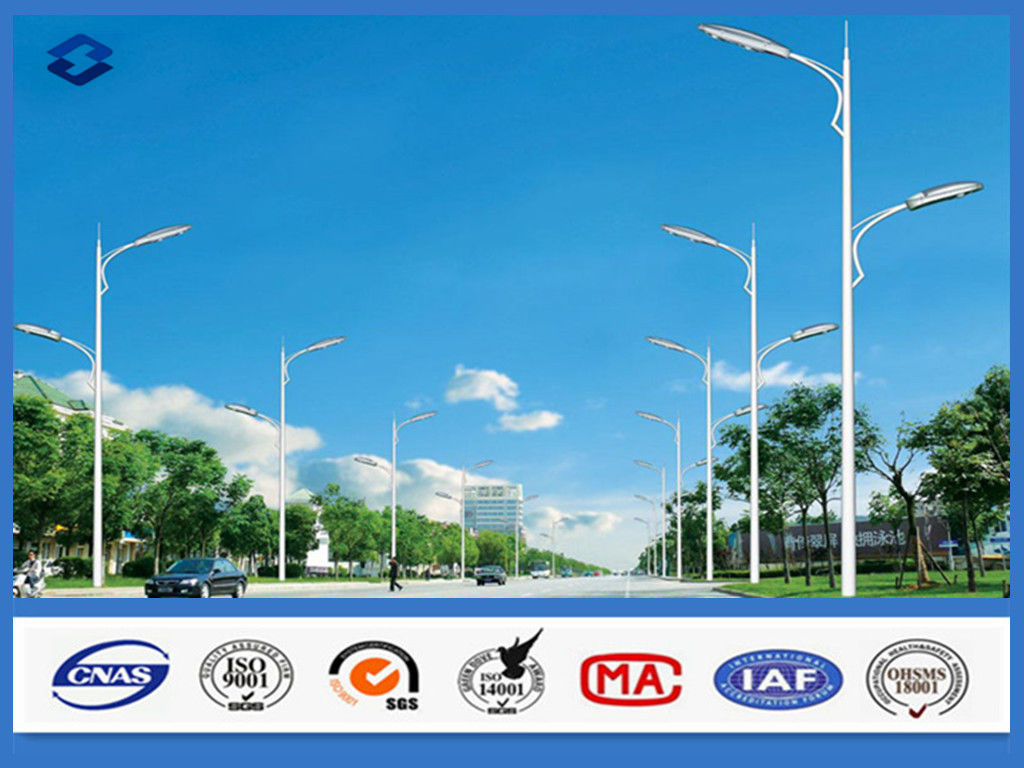

12m High 48mm Arm Diameter Q345 Hot Rolled Steel Galvanized Street Lighting Pole

Certification
China Jiangsu Baojuhe Science and Technology Co.,Ltd certification
China Jiangsu Baojuhe Science and Technology Co.,Ltd certification
Customer Reviews
Nice poles, reliable factory

—— Ryan Gil S. Medina

We have been cooperating with Baojuhe (previous Bosheng) for many years

—— Abraham L. Abesamis

I'm Online Chat Now

12m High 48mm Arm Diameter Q345 Hot Rolled Steel Galvanized Street Lighting Pole

12m High 48mm Arm Diameter Q345 Hot Rolled Steel Galvanized Street Lighting Pole
12m High 48mm Arm Diameter Q345 Hot Rolled Steel Galvanized Street Lighting Pole 12m High 48mm Arm Diameter Q345 Hot Rolled Steel Galvanized Street Lighting Pole 12m High 48mm Arm Diameter Q345 Hot Rolled Steel Galvanized Street Lighting Pole 12m High 48mm Arm Diameter Q345 Hot Rolled Steel Galvanized Street Lighting Pole 12m High 48mm Arm Diameter Q345 Hot Rolled Steel Galvanized Street Lighting Pole 12m High 48mm Arm Diameter Q345 Hot Rolled Steel Galvanized Street Lighting Pole

Large Image :  12m High 48mm Arm Diameter Q345 Hot Rolled Steel Galvanized Street Lighting Pole

Product Details:
Place of Origin: Jiangsu, China
Brand Name: JSBS
Certification: ISO9001 ISO14001 OHSAS18001
Model Number: Q235
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 30-300 per piece
Packaging Details: as request
Delivery Time: within 15 working days
Payment Terms: T/T, , L/C, Western Union
Supply Ability: 18000 tons per year
Detailed Product Description
Surface Treatment: Hot Dip Galvanized & Powder Coated Thickness: 3mm Or Above
Galvanization: 86um Color: White
Arm: Double Material: Steel Sheet
Height: 12m
High Light:

electrical street light pole

,

metal light pole

Double Arm Galvanized and Blue Powder Coated Highway Light Steel Pole


Material Reference
Applied to the material of general-purpose steel GB/T1591-2008, Q235, Q345, Q420, Q460 used in China.

Usually we use Q235 or Q345 for lighting poles.

Q235 = ASTM A36, SS400

Q345 = S355JR



Description:

Material: Hot rolled steel, Q235,Q345
Yield strength of Material Minimum yield strength>=235n/mm2 for Q235
Minimum yield strength>=345n/mm2 for Q345
Pole’s height: 12m
Length of one part Within 12m once forming
Wall thickness 2~15mm or more
Pole's Shape Available

Round, Polygonal, Taper Octagonal, Taper round, Round conical,Taper Square, Square.

Arm type can be made: Double arm
Arm Diameter: Diameter as 42mm, 48mm, 60mm, 76mm and etc, can fit to any diameter’s lamps.
Welding

Advanced submerge-arc welding and CNC welidng equipment.

It has past flaw testing, internal and external double welding makes the welding beautiful in shape.

Manufacture Capacity 200 pcs /day
Wall thickness Tolerance

+- 0.1mm from 2.3mm to 4mm. +- 0.2mm from 5mm to 20mm.

+- 0.5mm from 22mm to 30mm

Painting color ( RAL ) Color card or customized
Surface treatment 1 Hot dip Galvanized
Surface treatment 2 Hot dip galvanizing with power coating
Temperature range -35 °C~+45 °C
Wind Speed: Against wind pressure of 120Km/h to 180Km/h, according to client’s design.
Base plate mounted Base plate is square, octagonal or round in shape with slotted holes for anchor bolt and dimension as per customer’s requirement.
Ground mounted: The length buried underground as per customer’s requirement.
Quality Control According to ISO9001-2008 requirements.
Other Less land occupation & easy maintenance.

12m High 48mm Arm Diameter Q345 Hot Rolled Steel Galvanized Street Lighting Pole 0



Manufacturing

Material preparation-flatting-cutting on the bias-bending-welding-repair and grinding-reforming-flushing-fix bottom plate-welding bottom plate-opening door-welding door strip,electric strip,and locking-bending arm-hot dip galvanization-plastic powder painted-inspection-shipment.



Welding penetration rate is above 95%.

Welding Standard Standard Title

Pole shafts&multi-sided tubular

Cross arms&all accessories

AWS D1.1/D1.1M:2010 Structural Welding Code-Steel
Welding wire AWS D1.1/D1.1M:2010 Structural Welding Code-Steel


After the fabrication process as cutting plate, bending, forming, automatic welding, drilling holes, we get poles checked before galvanized, hot dip galvanized and powder coating and finally we get poles checked according to client's requirements.

12m High 48mm Arm Diameter Q345 Hot Rolled Steel Galvanized Street Lighting Pole 1



Delivery
We normally use 40HQ containers and our Port limit weight for a 40HQ is 26 tons.

12m High 48mm Arm Diameter Q345 Hot Rolled Steel Galvanized Street Lighting Pole 2



FAQ:
1. Port of Loading: Shanghai, China
2. Price term: EXW,FOB,CFR AND CIF.
3. Payment Term: 30%TT in deposit, 70%TT before shipment. Or LC.
4. Delivery: Based on your order quantity. Normally 15 days after receiving your deposit.
