Home ProductsMetal Utility Pole

ASTM A 123 Standard Hot dip Galvanized Metal Utility Pole 8M - 10M Height

Certification
China Jiangsu Baojuhe Science and Technology Co.,Ltd certification
China Jiangsu Baojuhe Science and Technology Co.,Ltd certification
Customer Reviews
Nice poles, reliable factory

—— Ryan Gil S. Medina

We have been cooperating with Baojuhe (previous Bosheng) for many years

—— Abraham L. Abesamis

I'm Online Chat Now

ASTM A 123 Standard Hot dip Galvanized Metal Utility Pole 8M - 10M Height

ASTM A 123 Standard Hot dip Galvanized Metal Utility Pole 8M - 10M Height
ASTM A 123 Standard Hot dip Galvanized Metal Utility Pole 8M - 10M Height

Large Image :  ASTM A 123 Standard Hot dip Galvanized Metal Utility Pole 8M - 10M Height

Product Details:
Place of Origin: China
Brand Name: BOSHENG
Certification: ISO9001:2008
Model Number: BS/HS - 9
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: Pack the poles with sack or straw or wood or steel strap, etc
Delivery Time: 15 - 25 work days
Payment Terms: D/P, L/C, T/T, Western Union
Supply Ability: 2000 Ton per month
Detailed Product Description
Tolerance: +-2% Material: Steel
Shape: Octagonal Finishing: Hot Dip Galvanized
Standard: ASTM A123 Zinc Coating: ≥ 86 μm
Applicant: Railway, Road, Street, Square Product Name: Metal Utility Pole
High Light:

Square Metal Pole

,

galvanized metal posts



Galvanized ASTM A 123 Electric Tubular Pole , Metal Utility Pole , Transmission Power Pole



Specification

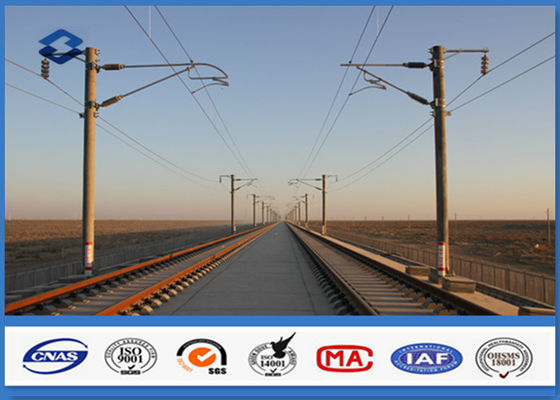

Hot Dip Galvanized Electrical Metal Utility Steel Pole for Railway in Shape Octagonal widely used in electrical power transmission railway station industry. In order to meet the increasingly higher demand for steel poles, our company design and produce many kinds of steel poles for the power transmission and distribution system. Besides, our electrical steel poles have been tested and approved by the Transmission Pole Tower Testing Station.



Products
  • Galvanized ASTM A 123 Electric Tubular Pole, Metal Utility Pole, Transmission Power Pole
Type
  • Straight Pole
Height
  • 8M - 10M.
Shape
  • Octagonal, Conical / Round
Material
  • Hot Roll Steel Sheet Q345, GR50 which equivalent to S355JR.
  • Min Yield Stree 345 Mpa
  • Tensile Strength 470 Mpa ~ 630 Mpa
Wall thickness
  • 4.0mm - 10mm
Once Forming           Yes
Welding
  • Welding complies with AWS D1.1 standard.
  • CO2 welding or submerged arc auto methods
  • No fissure, scar, overlap, layer or other defects
  • Internal and external welding
  • Ensure 100% complete penetration welds.
Joint       No
Base plate
  • Base plate is square/round/Polygon with slotted holes for anchor bolts installation.
Galvanization
  • Hot dip galvanization in accordance with Chinese standard GB/T 13912-2002 or American standard ASTM A123.
Warranty
  • More than 25 years, it is according to installing environment





Description





Through the efforts of the company staff, the support and cooperation from all over the world. The company's products have been exported to the Philippines, Malaysia, Australia, America, Africa, Latin America, Panama, Suriname, Costa Rica, Colombia, Jordan, Nigeria, etc. We have good export experience and with 1 container export to World per day on average.







Material Test:


1. All of our materials are purchased from famous mill factory to assure the quality.

2. A mill certificate issued by the mill factory with stamp and signature must be provided before unloading the material in our factory;


3. Before putting into production, all the material must pass the chemical and physical analysis to make sure that they have met the requested strength and component.





Production Process



  • Raw material test
  • Cutting
  • Bending
  • Welding (longitudinal )
  • Dimension verify
  • Flange welding
  • Hole drilling
  • Calibration
  • Deburr
  • Galvanization or powder coating or Bituminous painting
  • Recalibration
  • Packages

ASTM A 123 Standard Hot dip Galvanized Metal Utility Pole 8M - 10M Height 0



Features:



1. We can supply the product based on client's required drawing, but also can supply the design for any kinds of

    electric poles for customers to select.



2. Matercial : hot rolled coil from Q235 to Q460 ,ASTM573 GR65, GR50 ,SS400, SS490,ST52-3



3. Deal: Hot dip galvanized Following ASTM A 123 or any other standard by client required.



4. Packing: Plastic bubble, Mat &Straw Bale or following client required



5. Length: within 14meters once forming( single section)



6. Thickness: from 2.5mm to 22mm



7. Shape: polygonal(6-side,8side,12-side,16side) round tapered.



8. Easy install and maintenance.





Best Service: -- Jiangsu Bosheng Steel Poles Co., Ltd, which always been providing

our clients with great quality products and superior Customer service.

Quick Lead Time.--We inform the client the exact delivery time when they place the order and work Hard to

ensure that all of your deadlines are met.

Unbeatable Prices-- Raw Material Cost + Produce Cost 1200 RMB/Ton
Unbeatable Quality -- We always supply good quality also leading products to all of our customers.
Brand Awareness -- We achieve a good reputation among our clients and develop  long term business.
Special Offers. -- We quote first and then you compared , finally choose us !
Special support.-- we have a policy term to support our customers for products also payment.





ASTM A 123 Standard Hot dip Galvanized Metal Utility Pole 8M - 10M Height 1



Terms and Conditions


1. Price Term: EXW, FOB, CFR or CIF.



Ø EXW: Poles Cost

Ø FOB : Pole Cost + Land Transportation + Fee on Port

Ø CFR : Pole Cost + Land Transportation + Fee on Port + Sea Freight

Ø C I F : Pole Cost + Land Transportation + Fee on Port + Sea Freight + Insurance.



2. MOQ: One 40FT Container.


3. Payment Term: Typically 30% by T/T as a deposit, balance by T/T or L/C at sight before shipment. Other

    payment way can be negotiated.


4. Delivery Time: 15 working days per container after PI/drawing/ prepayment confirmed.


5. Package: Normally wrapped by plastic bags or burlap cloth at the top and bottom,or according to clients’

    requirement.



ASTM A 123 Standard Hot dip Galvanized Metal Utility Pole 8M - 10M Height 2



After - Sales Service



Our staff supply excellent after service, track and get the product information after our client got the products. We asked our client to fill a “Survey form for Satisfaction degree from Client”. We will solve the problems from clients in 24 hours, and we improve the quality and working method according to client’s good suggestions.
