Curved End Steel Lighting Pole Single Arm 12M Grade50 Galvanized Light Post
Product Details:
| Place of Origin: | China |
| Brand Name: | Hongxin |
| Certification: | ISO 9001 |
| Model Number: | HX-12 |
| Document: | Company Profile-HX.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 tons |
|---|---|
| Price: | 800 USD |
| Packaging Details: | Bare delivery, Sack Wrap or Fabrics |
| Delivery Time: | Within 15 working days |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 1000 tons per month |
|
Detail Information |
|||
| Height: | 12M | Shape: | Round |
|---|---|---|---|
| Material: | Q255B | Thick: | 3.0mm |
| Arm: | Single | Surface: | Hot Dip Galvanized / Powder Coating |
| Welding: | AWS D1.1 | Applied: | Street, Park, Garden, Railway, Airport |
| Warranty: | 5 Years | ||
| Highlight: | Curved End Steel Lighting Pole,Steel Lighting Pole 12M,Grade50 galvanized light post |
||
Product Description
Curved End Single Arm 12M Galvanized Steel Street Lighting Pole
Direct China Steel Pole Factory: Yixing Hongxin Illumination Facilites Co.,Ltd.
Over 25 Years History! 30 Million RMB Registered Capital! 15000 Square Meters!
Advanced Machines! Experienced Engineers! Skilled Workers!
Specialized in Manufacturing Hot Dip Galvanizing Steel Poles!
Production Capacity Over 1000 Tons Per Month!
Material
We usually use Q235B steel for the lighting poles
Raw material of general-purpose steel GB/T1591-2008, Q255, Q355, Q420, Q460 used in China.
|
China-GB |
America-ASTM |
Equivalent |
|
Q255 |
Grade D |
SS400,S235JO |
|
Q355 |
Grade50[345] |
S355JR |
|
Q420 |
Grade60[415] |
S420NL |
|
Q460 |
Grade65[450] |
S460NL |
Manufacturing Process
Our factory owns advanced production lines and machines including two bending calibration machines, hydraulic plate shearing machine, cutting machine, slitting machine, two gas welding machines, hydraulic straightener, etc. All insure us to produce steel poles with best quality.

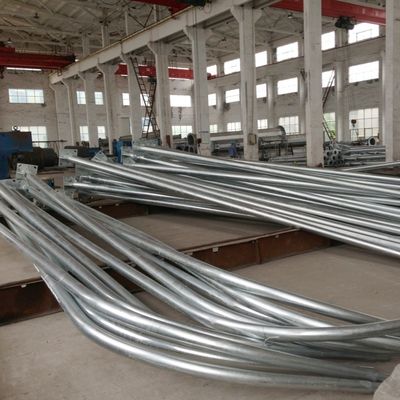

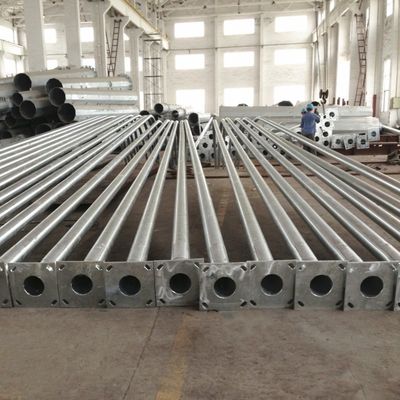

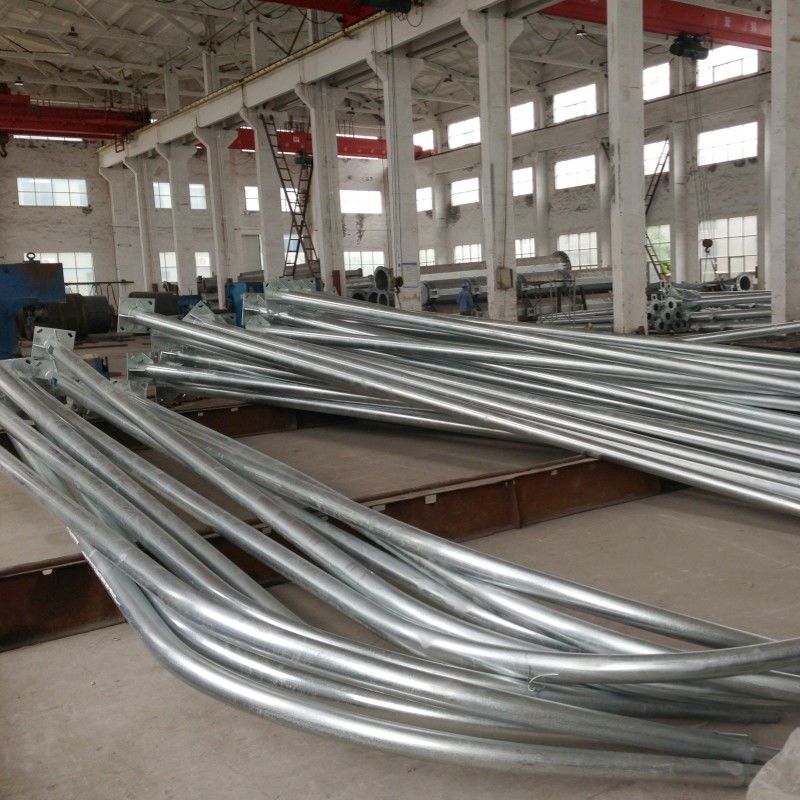

Finshed Products
Door Treatment:
Normally there are one or two electric bars inside the door.
Door will be bolted on the pole.
Pole Arm:
Single Arm: Curved end arm or seperate arm
Double Arms: Seperated from the pole
Diameter: Ø 48 mm--Ø 80mm
Thickness: Above 3.0mm
Inspection
To ensure the quality, we have professional engineers to inspect the poles during the manufacturing and before delivery. We have Lab Test, Workload Test, Steel thickness Test, Galvanization thickness Test, etc.

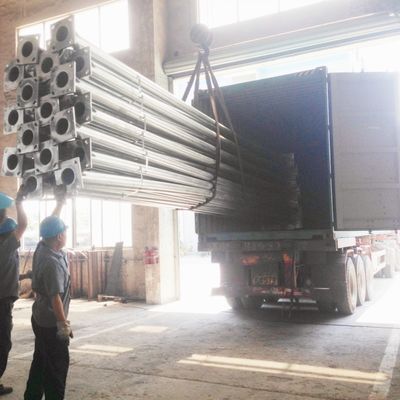

Delivery
We normally use 40HQ containers and our Port limit weight for a 40HQ is 26 tons.
