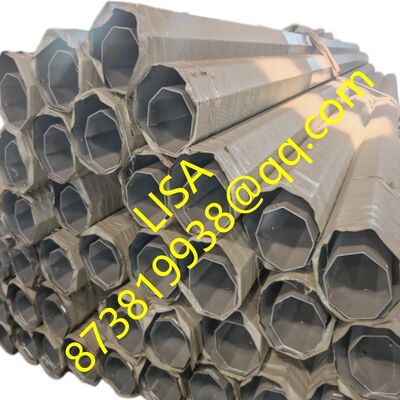

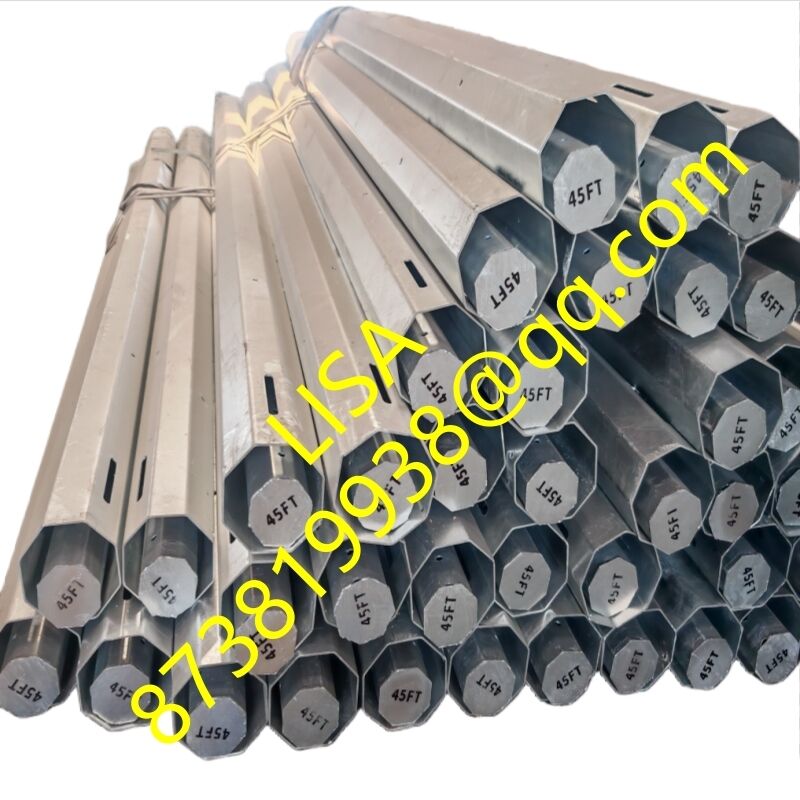

45FT Q355B Hot-dip Galvanized Steel Pole for Distribution Lines with 750KG Break Load
Product Details:
| Place of Origin: | China |
| Brand Name: | Hongxin |
| Certification: | ISO 9001 |
| Model Number: | HX-45 |
| Document: | Company Profile-HX.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 tons |
|---|---|
| Price: | 800 USD |
| Packaging Details: | Bare delivery, Sack Wrap or Fabrics |
| Delivery Time: | Within 15 working days |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 1000 tons per month |
|
Detail Information |
|||
| Height: | 45FT | Shape: | Octagonal/ 8 Sides |
|---|---|---|---|
| Material: | Q355B | Thick: | 4.0mm |
| Load: | 750KGF | Surface: | Hot Dip Galvanized |
| Galvanizing Thick: | Min Average Over 86 Microns | Applied: | Distribution Power Line |
| Warranty: | 5 Years | ||
| Highlight: | 45FT galvanized steel distribution pole,Q355B steel pole with 750KG load,hot-dip galvanized distribution line pole |
||
Product Description
45FT Q355B 4mm Octagonal Hot-dip Galvanized Distribution Steel Poles
These 45FT steel poles are specifically designed for distribution lines applications. Manufactured by Yixing Hongxin Illumination Facilities Co., Ltd., a direct factory with over 25 years of experience, these poles combine advanced machinery with skilled engineering to deliver superior quality products.
Material Specifications
Raw material conforms to GB/T1591-2008 standards with the following international equivalents:
| China-GB | America-ASTM | Equivalent |
|---|---|---|
| Q255 | Grade D | SS400, S235JO |
| Q355 | Grade50[345] | S355JR |
| Q420 | Grade60[415] | S420NL |
| Q460 | Grade65[450] | S460NL |
Manufacturing Process
Our factory utilizes advanced production equipment including bending calibration machines, hydraulic plate shearing machines, cutting machines, slitting machines, gas welding machines, and hydraulic straighteners to ensure the highest quality steel poles.
Product Specifications
Steel Pole of National Electrification Administration (PHILIPPINES) - Specification for Distribution Steel Pole
| Height (ft) | Thickness (mm) | Butt Diameter (mm) | Top Diameter (mm) | Design Load (kg) | Yield Stress (MPA) | Zinc Coating (microns) |
|---|---|---|---|---|---|---|
| 25 | 2.5 | 152 | 120 | 300 | 345 | 86 |
| 30 | 3.0 | 226 | 127 | 500 | 345 | 86 |
| 35 | 3.0 | 248 | 127 | 500 | 345 | 86 |
| 40 | 3.0 | 317 | 127 | 500 | 345 | 86 |
| 45 | 4.0 | 328 | 127 | 750 | 345 | 86 |
Quality Inspection
Our professional engineering team conducts comprehensive inspections throughout the manufacturing process and before delivery. Quality control includes Lab Testing, Workload Testing, Steel Thickness Testing, and Galvanization Thickness Testing to ensure product reliability.
Delivery Information
We typically use 40HQ containers for shipping with a port limit weight of 26 tons per container.
Frequently Asked Questions
- Are you a manufacturer or trading company?
We are both a direct factory manufacturer and trading company. - Where is your company located?
Our factory is located at Yinhe Road No.3, Wanshi town, Jiangsu, China. - What are your main products?
Electric poles, street lighting poles, high mast poles, telecommunication tower poles, traffic signal poles, and wind generation poles. - What's your nearest port?
Shanghai Port is our nearest port. - What's your payment term?
Normally 30% deposit with the balance by TT before shipping, or L/C. - What's your delivery time?
Typically within 15 working days, or approximately one month for large quantities during busy periods. - What's your price term?
EXW, FOB, CFR, or CIF pricing options available.
