25FT 30FT 35FT 40FT 45FT 355Mpa Metal Utility Pole Octagonal Hot-Dip Galvanized Steel
Product Details:
| Place of Origin: | China |
| Brand Name: | Hongxin |
| Certification: | ISO 9001 |
| Model Number: | HX-2545 |
| Document: | Company Profile-HX.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 tons |
|---|---|
| Price: | 800 USD |
| Packaging Details: | Bare delivery, Sack Wrap or Fabrics |
| Delivery Time: | Within 15 working days |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 1000 tons per month |
|
Detail Information |
|||
| Height: | 25FT/30FT/35FT/40FT/45FT | Shape: | Octagonal/ 8 Sides |
|---|---|---|---|
| Material: | 355Mpa | Thick: | 2.5mm-4.0mm |
| Load: | 300KGF-750KGF | Segment: | 1-2 Segments |
| Surface: | Hot Dip Galvanized | Galvanizing Thick: | Min Average Over 86 Microns |
| Applied: | Power Line | Warranty: | 5 Years |
| Highlight: | 40FT Metal Utility Pole,Octagonal Metal Utility Pole,Hot-Dip Galvanized Utility Pole |
||
Product Description
25FT 30FT 35FT 40FT 45FT 355Mpa Octagonal Hot-dip Galvanized Steel Metal Utility Pole
Specifications
Height: 25FT (9150mm)-45FT(13716mm)
Thickness: 2.5mm-4.0mm
Segments: 1-2 sections
Design Load: 300KGF-750KGF
Surface: Hot Dip Galvanized with min average coating thickness 86 microns

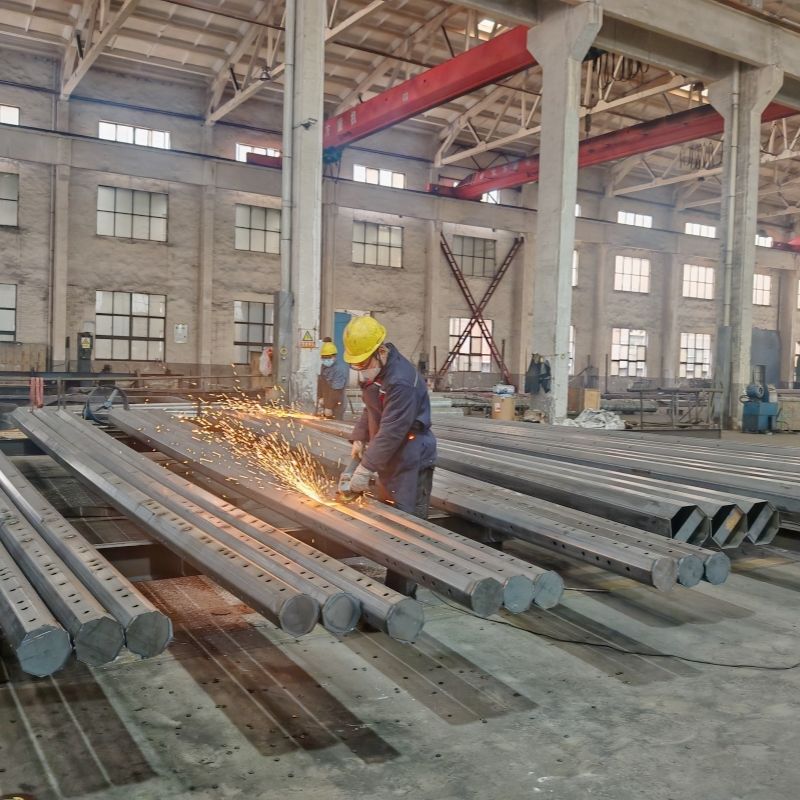

Manufacturing Process
Our factory owns advanced production lines and machines including two bending calibration machines, hydraulic plate shearing machine, cutting machine, slitting machine, two gas welding machines, hydraulic straightener, etc. All insure us to produce steel poles with best quality.
Material
Raw material of general-purpose steel GB/T1591-2008, Q255, Q355, Q420, Q460 used in China.
Finshed Products
Steel Pole of National Electrification Administration
(PHILIPPINES)
Specification for Distribution Steel Pole 25FT, 30FT, 35FT, 40FT,45FT.
|
Height (ft) |
Thickness (mm) |
Butt Diameter (mm) |
Top Diameter (mm) |
Design Load (kg) |
Yield Stress (MPA) |
Zinc Coating (microns) |
|
25 |
2.5 |
152 |
120 |
300 |
345 |
86 |
|
30 |
3.0 |
226 |
127 |
500 |
345 |
86 |
|
35 |
3.0 |
248 |
127 |
500 |
345 |
86 |
|
40 |
3.0 |
317 |
127 |
500 |
345 |
86 |
|
45 |
4.0 |
328 |
127 |
750 |
345 |
86 |
Inspection
To ensure the quality, we have professional engineers to inspect the poles during the manufacturing and before delivery.
We have Lab Test, Workload Test, Steel thickness Test, Galvanization thickness Test, etc.

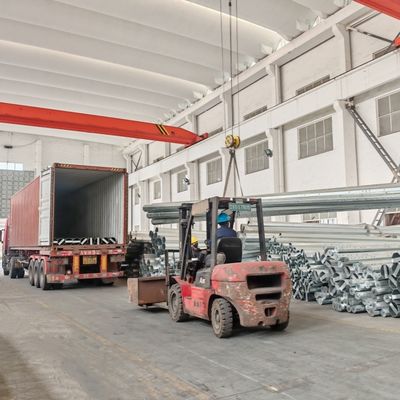

Delivery
We normally use 40HQ containers and our Port limit weight for a 40HQ is 26 tons.
