9M 3mm Thick 345Mpa 5kN Steel Utility Pole Octagonal HDG Galvanized
Product Details:
| Place of Origin: | China |
| Brand Name: | Hongxin |
| Certification: | ISO 9001 |
| Model Number: | HX-09 |
| Document: | Company Profile-HX.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 tons |
|---|---|
| Price: | 800 USD |
| Packaging Details: | Bare delivery, Sack Wrap or Fabrics |
| Delivery Time: | Within 15 working days |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 1000 tons per month |
|
Detail Information |
|||
| Height: | 9M | Shape: | Octagonal/ 8 Sides |
|---|---|---|---|
| Material: | Q355 | Thick: | 3.0mm |
| Load: | 500kN | Segment: | One Segment |
| Surface: | Hot Dip Galvanized | Galvanizing Thick: | Min Average Over 86 Microns |
| Applied: | Power Line | Warranty: | 5 Years |
| Highlight: | 3mm Thick steel utility pole,5kN steel utility pole,9M galvanized octagonal pole |
||
Product Description
9M 3mm Thick 345Mpa 5kN Octagonal HDG Galvanized Utility Steel Pole
Specifications
Height: 9000mm
Thickness: 3mm
Segments: 1
Design Load: 5kN
Surface: Hot Dip Galvanized with min average coating thickness 86 microns

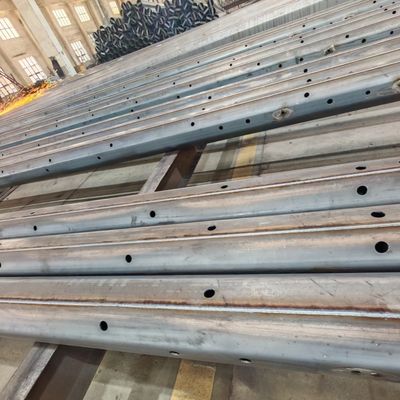

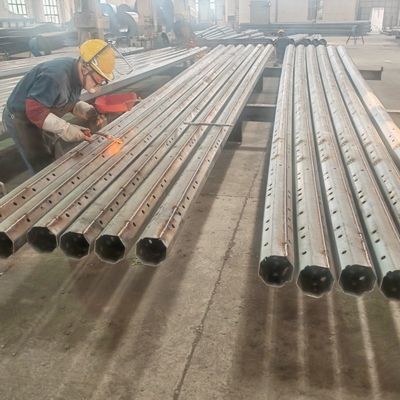

Manufacturing Process
Our factory owns advanced production lines and machines including two bending calibration machines, hydraulic plate shearing machine, cutting machine, slitting machine, two gas welding machines, hydraulic straightener, etc. All insure us to produce steel poles with best quality.
Material
Raw material of general-purpose steel GB/T1591-2008, Q255, Q355, Q420, Q460 used in China.

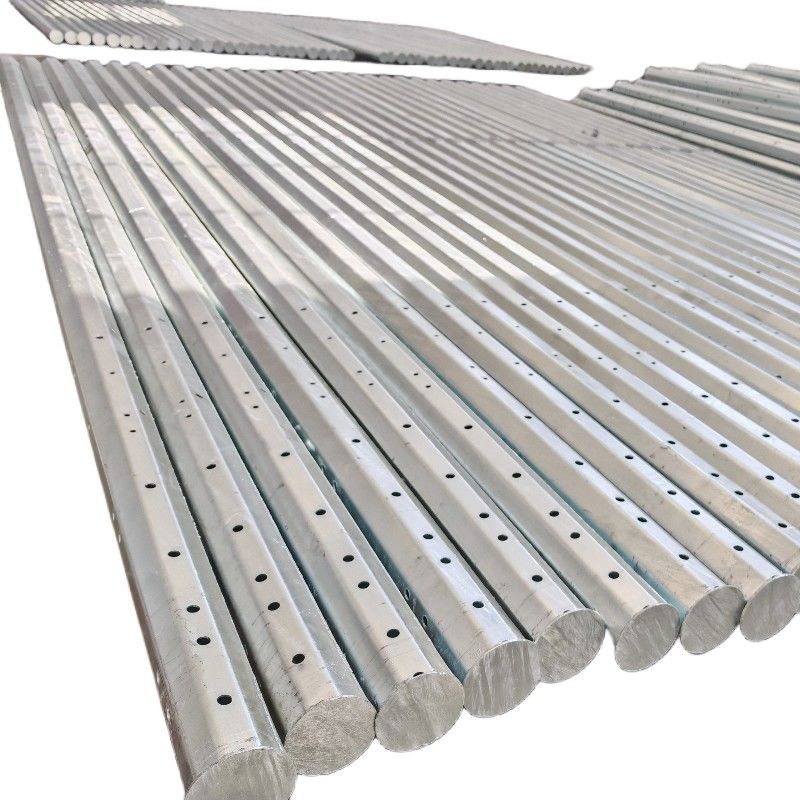

Finshed Products
Steel Pole of National Electrification Administration
(PHILIPPINES)
Specification for Distribution Steel Pole 25FT, 30FT, 35FT, 40FT,45FT.
|
Height (ft) |
Thickness (mm) |
Butt Diameter (mm) |
Top Diameter (mm) |
Design Load (kg) |
Yield Stress (MPA) |
Zinc Coating (microns) |
|
25 |
2.5 |
152 |
120 |
300 |
345 |
86 |
|
30 |
3.0 |
226 |
127 |
500 |
345 |
86 |
|
35 |
3.0 |
248 |
127 |
500 |
345 |
86 |
|
40 |
3.0 |
317 |
127 |
500 |
345 |
86 |
|
45 |
4.0 |
328 |
127 |
750 |
345 |
86 |
Inspection
To ensure the quality, we have professional engineers to inspect the poles during the manufacturing and before delivery.
We have Lab Test, Workload Test, Steel thickness Test, Galvanization thickness Test, etc.
Delivery
We normally use 40HQ containers and our Port limit weight for a 40HQ is 26 tons.
