50FT NEA NGCP Standard Transmission Power Steel Pole
Product Details:
| Brand Name: | Hongxin |
| Certification: | ISO |
| Model Number: | HX-01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | Per Client's Requirment |
| Delivery Time: | 20days |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 1000TON/Month |
|
Detail Information |
|||
| Height: | 4-50 Meters | Color: | Customized |
|---|---|---|---|
| Accessories: | Insulators, Crossarms, Brackets, Etc. | Pole Top Design: | Customizable |
| Corrosion Resistance: | High | Material: | Steel |
| Connection Type: | Overlap Or Flange | Wind Resistance: | Depends On Height And Design |
| Highlight: | NGCP Standard Transmission Power steel pole,NEA Transmission Power steel pole,50FT galvanized steel electrical pole |
||
Product Description
|
Type |
Straight Pole ,Tensile Pole ,Turn Pole |
|
Suit for |
Power pole for electricity transmission line |
|
Shape |
Conoid ,Multi-pyramidal,Octagonal,polygonal or conical |
|
Tolerance of dimension |
+- 2% |
|
Power |
13KV ,35 KV ~132KV,550 KV |
|
Safety Factor |
From 1.0-3.0 depend on requirment |
|
Quality materials |
Usually Q345B/A572, minimum yield strength>=345n/mm2 |
|
Design Load in Kg |
300~ 3000 Kg appliced to 50cm from the to pole |
|
Marks |
Nane palte through rivert or glue ,engrave ,emboss as per customer requirement |
|
Joint of Poles |
Insert mode, inner flange mode, face to face joint mode |
|
Design of pole |
Against earthquake of 8 grade |
|
Wind Speed |
Max:160 Km/Hour |
|
Minimum yield strength |
345 mpa |
|
Minimum ultimate tensile strength |
490 mpa |
|
Max ultimate tensile strength |
620 mpa |
|
Standard |
ISO 9001 |
|
Length of per section |
Within 14m once forming without slip joint. |
|
Thickness |
2.5mm to 30mm |
Prodecure of product

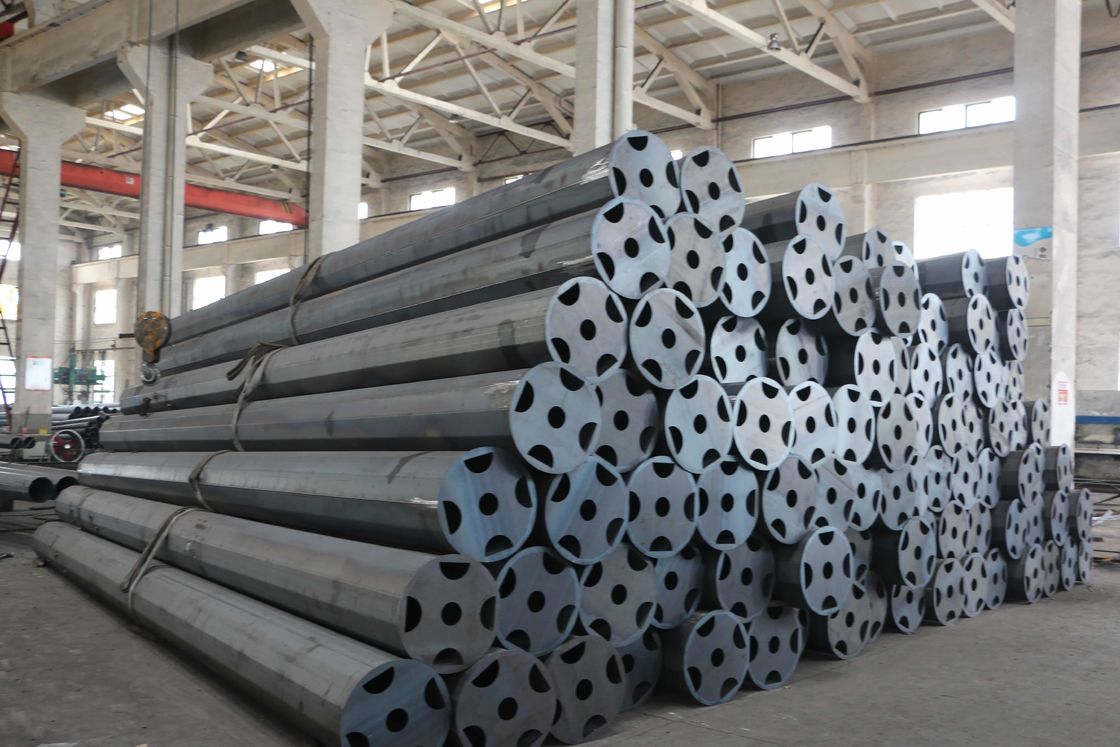

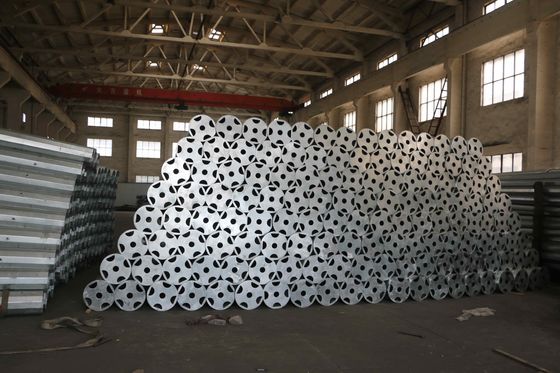

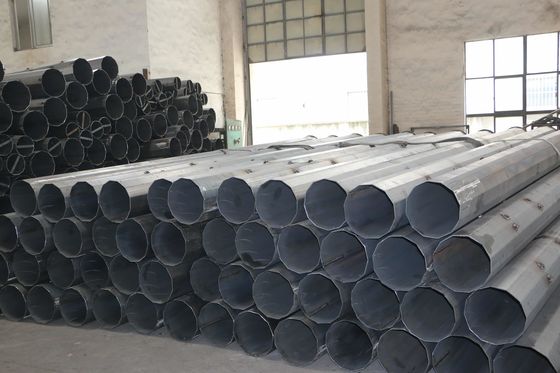

Picture of steel pole
FAQ
Q1:Tell me about your company?
A:Yixing Hongxin ILLumination Facilities Co., Ltd., as a professional factory of all kinds of steel poles,including Power transmission steel pole, street lamp pole, traffic signla pole, high mast post, and other steel pole
Q2:How can I get the price of needed pole?
A:1. If you have detailed drawing or specs, we can make quotaitonon these.
If you don’t have available drawing, pls share your requirment with us. Let us know what exact you need.
Then we can make design based on your requirment.
Q3: what’s your main product?
A: Our product inlcude electric power pole, transmission steel pole, high mast lamp pole, traffic signal poles, street lamp post , all kinds of metallic lighting poles and so on
Q4:what’s your payment terms?
A: T/T, L/C both ok
Q5: What’s your delivery time?
A: Usually 20days after confirming orders
