75FT ASTM A572 Gr50 Metal Utility Pole Octagonal Hot Dip Galvanized Steel
Product Details:
| Place of Origin: | China |
| Brand Name: | Hongxin |
| Certification: | ISO 9001 |
| Model Number: | HX-75 |
| Document: | Company Profile-HX.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 tons |
|---|---|
| Price: | 800 USD |
| Packaging Details: | Bare delivery, Sack Wrap or Fabrics |
| Delivery Time: | Within 15 working days |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 1000 tons per month |
|
Detail Information |
|||
| Height: | 75FT | Shape: | Octagonal |
|---|---|---|---|
| Material: | Q355B | Thick: | 5mm |
| Load: | 1200KGF | Surface: | Hot Dip Galvanized / Black Tar Painting/ Sack Wrap |
| Galvanizing Thick: | Min Average Over 86 Microns | Applied: | 69KV Power Line |
| Warranty: | 5 Years | ||
| Highlight: | Octagonal Metal Utility Steel Pole,75FT Metal Utility Steel Pole,75FT metal utility pole |
||
Product Description
75FT ASTM A572 Gr50 Octagonal Hot Dip Galvanized Metal Utility Steel Pole
Specifications
Pole height: 75FT(22860mm)
Application: Power Line
Design Load: 1200KGF
Shape: Octagonal
Material: Q355B with min yield strength 355Mpa
Bare Metal Thickness: 5.0mm
Transmission Pole 50FT 55FT 60FT 65FT 70FT 75FT 80FT 85FT 90FT are with non-standard specifications, so we design and manufacture poles according to customers’ various requests each time.
Direct China Steel Pole Factory: Yixing Hongxin Illumination Facilites Co.,Ltd.
Over 25 Years History! 30 Million RMB Registered Capital! 15000 Square Meters!
Advanced Machines! Experienced Engineers! Skilled Workers!
Specialized in Manufacturing Hot Dip Galvanizing Steel Poles!
Production Capacity Over 1000 Tons Per Month!
Material
Raw material of general-purpose steel GB/T1591-2008, Q255, Q355, Q420, Q460 used in China.
|
China-GB |
America-ASTM |
Equivalent |
|
Q255 |
Grade D |
SS400,S235JO |
|
Q355 |
Grade50[345] |
S355JR |
|
Q420 |
Grade60[415] |
S420NL |
|
Q460 |
Grade65[450] |
S460NL |
Manufacturing Process

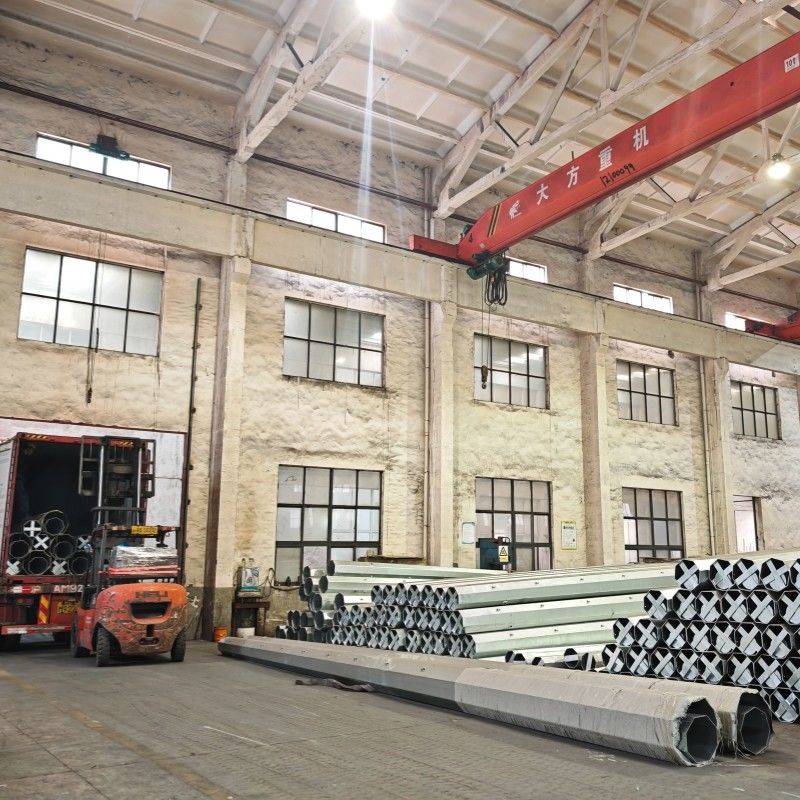

Our factory owns advanced production lines and machines including two bending calibration machines, hydraulic plate shearing machine, cutting machine, slitting machine, two gas welding machines, hydraulic straightener, etc. All insure us to produce steel poles with best quality.
Inspection
To ensure the quality, we have professional engineers to inspect the poles during the manufacturing and before delivery.We have Lab Test, Workload Test, Steel thickness Test, Galvanization thickness Test, etc.
Delivery

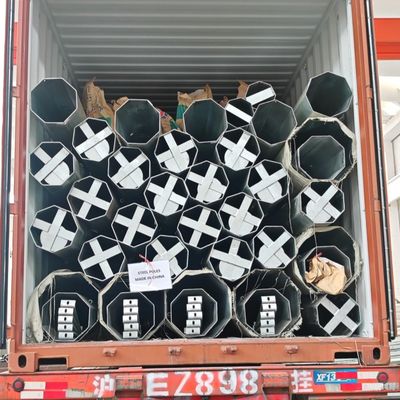

We normally use 40HQ containers and our Port limit weight for a 40HQ is 26 tons.
