2.75mm Electrical Steel Cross Arm Power Pole Cross Arm For Pole Line Hardware
Product Details:
| Place of Origin: | China |
| Brand Name: | Hongxin |
| Certification: | ISO 9001 |
| Model Number: | HX-081012 |
| Document: | Company Profile-HX.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 tons |
|---|---|
| Price: | 800 USD |
| Packaging Details: | Bare delivery, Sack Wrap or Fabrics |
| Delivery Time: | Within 15 working days |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 1000 tons per month |
|
Detail Information |
|||
| Height: | 8FT 10FT 12FT | Shape: | Rectangular |
|---|---|---|---|
| Material: | Q355/Q235 | Thick: | 2.75mm/ 3.0mm |
| Surface: | Hot Dip Galvanized | Galvanizing Thick: | Min Average Over 86 Microns |
| Applied: | Power Distribution | Warranty: | 5 Years |
| Highlight: | 2.75mm Steel Cross Arm,Electrical Steel Cross Arm,2.75mm power pole cross arm |
||
Product Description
These 8FT, 10FT, and 12FT rectangular crossarms for distribution lines are crafted from robust steel. Ideal for supporting electrical conductors, they ensure stable installations with high load - bearing capacity and long - lasting durability.
Direct China Steel Pole Factory: Yixing Hongxin Illumination Facilites Co.,Ltd.
Over 25 Years History! 30 Million RMB Registered Capital! 15000 Square Meters!
Advanced Machines! Experienced Engineers! Skilled Workers!
Specialized in Manufacturing Hot Dip Galvanizing Steel Poles!
Production Capacity Over 1000 Tons Per Month!
Material
Raw material of general-purpose steel GB/T1591-2008, Q255, Q355, Q420, Q460 used in China.
|
China-GB |
America-ASTM |
Equivalent |
|
Q255 |
Grade D |
SS400,S235JO |
|
Q355 |
Grade50[345] |
S355JR |
|
Q420 |
Grade60[415] |
S420NL |
|
Q460 |
Grade65[450] |
S460NL |
Manufacturing Process
Our factory owns advanced production lines and machines including two bending calibration machines, hydraulic plate shearing machine, cutting machine, slitting machine, two gas welding machines, hydraulic straightener, etc. All insure us to produce steel poles with best quality.
Finshed Products
8FT Crossarm Size: 80*100*2438mm
10FT Crossarm Size: 80*100*3048mm
Besides the Nea standard poles, our factory also produces 50FT-120FT Transmission poles, Steel Lighting Poles, Traffic Signal Poles, Substation Structures, Steel Crossarm, Steel Towers and other steel components.

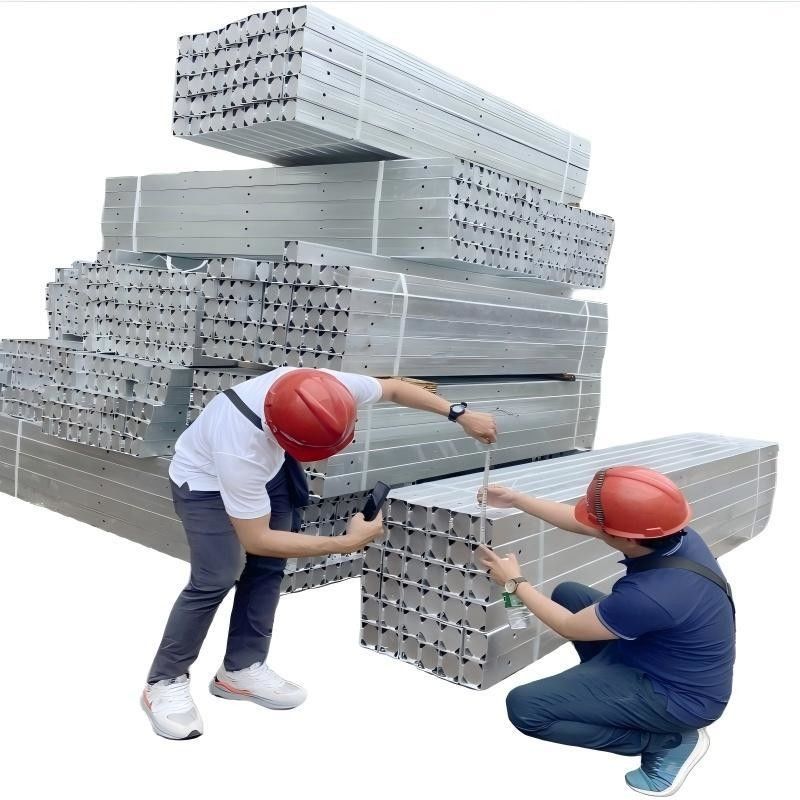

Inspection
To ensure the quality, we have professional engineers to inspect the poles during the manufacturing and before delivery.
We have Lab Test, Workload Test, Steel thickness Test, Galvanization thickness Test, etc.
Delivery
We normally use 40HQ containers and our Port limit weight for a 40HQ is 26 tons.
