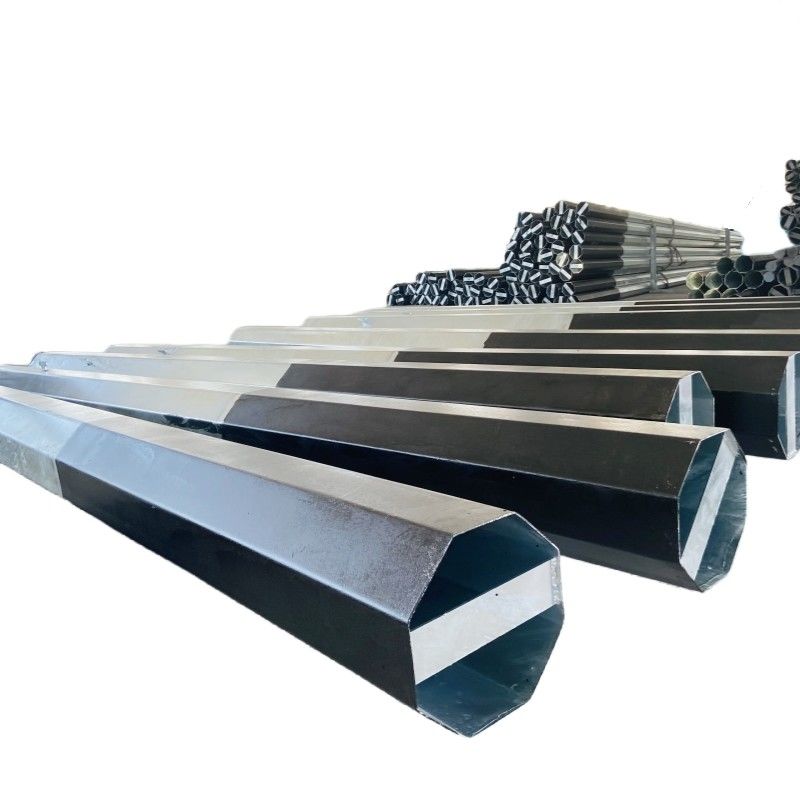

30FT Philippines Distribution Steel Pole Galvanized Poles with Bitumen Painting
Product Details:
| Place of Origin: | China |
| Brand Name: | Hongxin |
| Certification: | ISO 9001 |
| Model Number: | HX-30 |
| Document: | Company Profile-HX.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 tons |
|---|---|
| Price: | 800 USD |
| Packaging Details: | Bare delivery, Sack Wrap or Fabrics |
| Delivery Time: | Within 15 working days |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 1000 tons per month |
|
Detail Information |
|||
| Height: | 30FT | Shape: | Octagonal/ 8 Sides |
|---|---|---|---|
| Material: | Q355/Q235 | Thick: | 2.75mm/ 3.0mm |
| Load: | 500KGF | Surface: | Hot Dip Galvanized / Black Tar/ Bitumen Painting |
| Galvanizing Thick: | Min Average Over 86 Microns | Applied: | 15kv 69Kv Power Line |
| Warranty: | 5 Years | ||
| Highlight: | Distribution Steel Pole,Philippines Distribution Steel Pole,galvanized fence poles Bitumen Painting |
||
Product Description
30FT Philippines Octagonal Nea Standard Galvanized Steel Poles with Bitumen Painting
The Philippines Nea Standard 30FT steel poles are widely used in the 15KV power lines.
With over 25 years history, advanced machines, experienced engineers and skilled workers, Yixing Hongxin Illumination Facilities Co.,Ltd. is the direct factory specialized in manufacturing the hot dip galvanized 30FT electric steel poles.
Material
Raw material of general-purpose steel GB/T1591-2008, Q255, Q355, Q420, Q460 used in China.
|
China-GB |
America-ASTM |
Equivalent |
|
Q255 |
Grade D |
SS400,S235JO |
|
Q355 |
Grade50[345] |
S355JR |
|
Q420 |
Grade60[415] |
S420NL |
|
Q460 |
Grade65[450] |
S460NL |
Manufacturing Process
Our factory owns advanced production lines and machines including two bending calibration machines, hydraulic plate shearing machine, cutting machine, slitting machine, two gas welding machines, hydraulic straightener, etc. All insure us to produce steel poles with best quality.
Finshed Products
Steel Pole of National Electrification Administration
(PHILIPPINES)
Specification for Distribution Steel Pole 25FT, 30FT, 35FT, 40FT,45FT.
|
Height (ft) |
Thickness (mm) |
Butt Diameter (mm) |
Top Diameter (mm) |
Design Load (kg) |
Yield Stress (MPA) |
Zinc Coating (microns) |
|
25 |
2.5 |
152 |
120 |
300 |
345 |
86 |
|
30 |
3.0 |
226 |
127 |
500 |
345 |
86 |
|
35 |
3.0 |
248 |
127 |
500 |
345 |
86 |
|
40 |
3.0 |
317 |
127 |
500 |
345 |
86 |
|
45 |
4.0 |
328 |
127 |
750 |
345 |
86 |
Inspection
To ensure the quality, we have professional engineers to inspect the poles during the manufacturing and before delivery.
We have Lab Test, Workload Test, Steel thickness Test, Galvanization thickness Test, etc.
Delivery
We normally use 40HQ containers and our Port limit weight for a 40HQ is 26 tons.
