45FT 13716mm Electrical Service Pole ASTM A36 4.0mm Galvanised Steel Pole
Product Details:
| Place of Origin: | China |
| Brand Name: | Hongxin |
| Certification: | ISO 9001 |
| Model Number: | HX-45 |
| Document: | Company Profile-HX.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 tons |
|---|---|
| Price: | 800 USD |
| Packaging Details: | Bare delivery, Sack Wrap or Fabrics |
| Delivery Time: | Within 15 working days |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 1000 tons per month |
|
Detail Information |
|||
| Height: | 45FT/13716mm | Shape: | Octagonal/ 8 Sides |
|---|---|---|---|
| Material: | Q355 | Thick: | 4.0mm |
| Load: | 750KGF | Surface: | Hot Dip Galvanized |
| Galvanizing Thick: | Min Average Over 86 Microns | Applied: | 15kv Power Line |
| Warranty: | 5 Years | ||
| Highlight: | 45FT electrical service pole,13716mm electrical service pole ASTM A36,4.0mm galvanised steel pole |
||
Product Description
45FT 13716mm ASTM A36 Galvanized Octagonal Steel Electric Poles
This Nea Standard 45FT steel poles are widely used in 15kv power lines in the Philippines. It's easily transported and installed. Yixing Hongxin Illumination Facilities Co.,Ltd. is the direct China factroy with production capacity of 1000 tons per month. Diameters of the poles are as follows:
Pole height:45FT(13716mm)
Shape: Octagonal
Material: ASTM A572 with Fy≥50ksi min yield strength (equals to Q355B Steel)
Top diameter: 127mm
Butt diameter: 328mm
Thickness: 4.0mm
Design load: 750KGF
Material
Raw material of general-purpose steel GB/T1591-2008, Q255, Q355, Q420, Q460 used in China.
|
China-GB |
America-ASTM |
Equivalent |
|
Q255 |
Grade D |
SS400,S235JO |
|
Q355 |
Grade50[345] |
S355JR |
|
Q420 |
Grade60[415] |
S420NL |
|
Q460 |
Grade65[450] |
S460NL |
Manufacturing Process

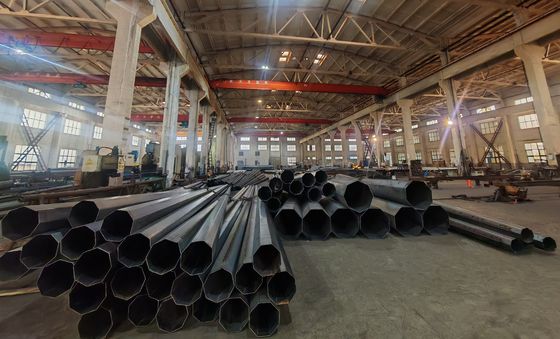

Our factory owns advanced production lines and machines including two bending calibration machines, hydraulic plate shearing machine, cutting machine, slitting machine, two gas welding machines, hydraulic straightener, etc. All insure us to produce steel poles with best quality.

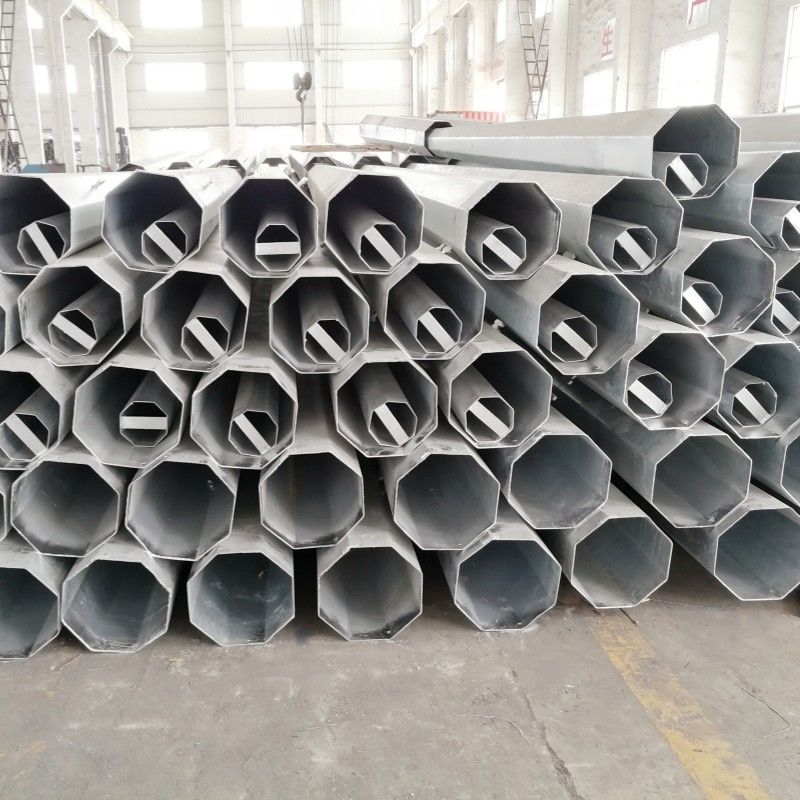

Finshed Products
Steel Pole of National Electrification Administration
(PHILIPPINES)
Specification for Distribution Steel Pole 25FT, 30FT, 35FT, 40FT,45FT.
|
Height (ft) |
Thickness (mm) |
Butt Diameter (mm) |
Top Diameter (mm) |
Design Load (kg) |
Yield Stress (MPA) |
Zinc Coating (microns) |
|
25 |
2.5 |
152 |
120 |
300 |
345 |
86 |
|
30 |
3.0 |
226 |
127 |
500 |
345 |
86 |
|
35 |
3.0 |
248 |
127 |
500 |
345 |
86 |
|
40 |
3.0 |
317 |
127 |
500 |
345 |
86 |
|
45 |
4.0 |
328 |
127 |
750 |
345 |
86 |
Inspection
To ensure the quality, we have professional engineers to inspect the poles during the manufacturing and before delivery.
We have Lab Test, Workload Test, Steel thickness Test, Galvanization thickness Test, etc.
Delivery
We normally use 40HQ containers and our Port limit weight for a 40HQ is 26 tons.
