65FT 20M ASTM GR65 Electric Hot Dip Galvanized Power Transmission Steel Pole
Product Details:
| Place of Origin: | China |
| Brand Name: | Hongxin |
| Certification: | ISO 9001 |
| Model Number: | HX-65 |
| Document: | Company Profile-HX.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 tons |
|---|---|
| Price: | 800 USD |
| Packaging Details: | Bare delivery, Sack Wrap or Fabrics |
| Delivery Time: | Within 15 working days |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 1000 tons per month |
|
Detail Information |
|||
| Height: | 65FT | Shape: | Dodecagonal/ 12sides |
|---|---|---|---|
| Material: | Q355/Q420/Q460 | Thick: | 4.0mm-8.0mm |
| Load: | 1200KGF-10000KGF | Surface: | Hot Dip Galvanized / Black Tar Painting |
| Galvanizing Thick: | Min Average Over 86 Microns | Applied: | 69KV Power Line |
| Warranty: | 5 Years | ||
| Highlight: | 65FT octagonal street light pole,20M octagonal street light pole,ASTM GR65 power distribution pole |
||
Product Description
65FT 20M ASTM GR65 Electric Hot Dip Galvanized Steel Pole
Specifications:
Pole Height: 65FT
Shape: Dodecagonal/ 12 Sides
Material: Q460/ ASTM A572 GR65
Thick: 4.0mm/5.0mm
Design Load: 1200KGF-10000KGF
Material
Raw material of general-purpose steel GB/T1591-2008, Q255, Q355, Q420, Q460 used in China.
|
China-GB |
America-ASTM |
Equivalent |
|
Q255 |
Grade D |
SS400,S235JO |
|
Q355 |
Grade50[345] |
S355JR |
|
Q420 |
Grade60[415] |
S420NL |
|
Q460 |
Grade65[450] |
S460NL |
Manufacturing Process
Our factory owns advanced production lines and machines including two bending calibration machines, hydraulic plate shearing machine, cutting machine, slitting machine, two gas welding machines, hydraulic straightener, etc. All insure us to produce steel poles with best quality.
Finshed Products
Transmission Pole 50FT 55FT 60FT 65FT 70FT 75FT 80FT 85FT 90FT.
These are non-standard specifications, so we manufacture poles according to customers’ various requests each time.
Our factory has professional engineers to design the practical poles and save the cost for our clients.
But to design the practical poles for customers use, normally we need customer to provide us some parameter, like as following :
- Pole top design load
- Where is the position of the load (the distance from the top)
- The wind Speed
- How will the wire distribute
- Pole type with Burial Type or Base Plate type
- The connections mode , use slip joint or flange
- and others we can further more discuss when we need.
Inspection

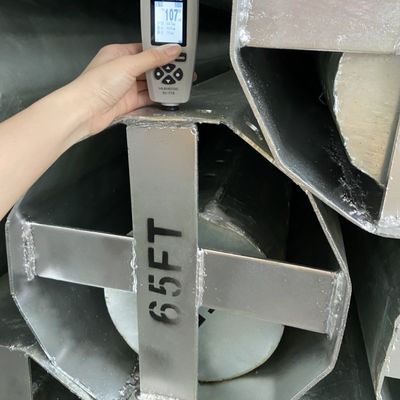

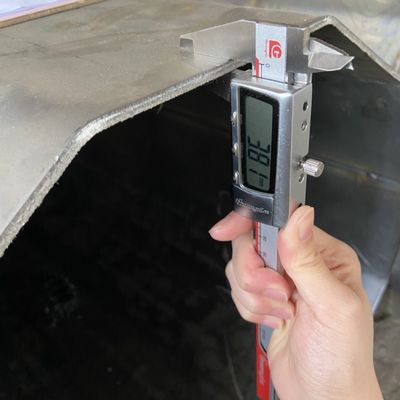

To ensure the quality, we have professional engineers to inspect the poles during the manufacturing and before delivery. We have Lab Test, Workload Test, Steel thickness Test, Galvanization thickness Test, etc.
Delivery
We normally use 40HQ containers and our Port limit weight for a 40HQ is 26 tons.
