30FT 9150mm ASTM A36 Galvanized Octagonal 15kV Steel Power Pole
Product Details:
| Place of Origin: | China |
| Brand Name: | Hongxin |
| Certification: | ISO 9001 |
| Model Number: | HX-30 |
| Document: | Company Profile-HX.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 tons |
|---|---|
| Price: | 800 USD |
| Packaging Details: | Bare delivery, Sack Wrap or Fabrics |
| Delivery Time: | Within 15 working days |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 1000 tons per month |
|
Detail Information |
|||
| Height: | 30FT | Material: | Q355/Q235 |
|---|---|---|---|
| Diameter: | 127mm/226mm | Thick: | 2.75mm/ 3.0mm |
| Shape: | Octagonal/ 8 Sides | Load: | 300KGF-500KGF |
| Surface: | Hot Dip Galvanized | Galvanizing Thick: | Min Average Over 86 Microns |
| Applied: | 15kv Power Line | Warranty: | 5 Years |
| Highlight: | 30FT steel tubular electric pole,9150mm steel telephone pole,ASTM A36 Steel Power Pole |
||
Product Description
30FT 9150mm ASTM A36 Galvanized Octagonal 15kV Steel Power Pole
Finshed Products
This galvanized steel pole is an ideal choice for electric applications. It has a silver coating and is made of galvanized steel, making it highly resistant to corrosion. It has a length of 9150mm and weighs 130KG, making it strong and durable enough for long-term use in outdoor settings. With its heavy-duty construction and anti-corrosion properties, this 30FT steel pole is perfect for both residential and commercial electric applications.
Steel Pole of National Electrification Administration
(PHILIPPINES)
Specification for Distribution Steel Pole 25FT, 30FT, 35FT, 40FT,45FT.
|
Height (ft) |
Thickness (mm) |
Butt Diameter (mm) |
Top Diameter (mm) |
Design Load (kg) |
Yield Stress (MPA) |
Zinc Coating (microns) |
|
25 |
2.5 |
152 |
120 |
300 |
345 |
86 |
|
30 |
3.0 |
226 |
127 |
500 |
345 |
86 |
|
35 |
3.0 |
248 |
127 |
500 |
345 |
86 |
|
40 |
3.0 |
317 |
127 |
500 |
345 |
86 |
|
45 |
4.0 |
328 |
127 |
750 |
345 |
86 |
Material
Raw material of general-purpose steel GB/T1591-2008, Q255, Q355, Q420, Q460 used in China.
|
China-GB |
America-ASTM |
Equivalent |
|
Q255 |
Grade D |
SS400,S235JO |
|
Q355 |
Grade50[345] |
S355JR |
|
Q420 |
Grade60[415] |
S420NL |
|
Q460 |
Grade65[450] |
S460NL |

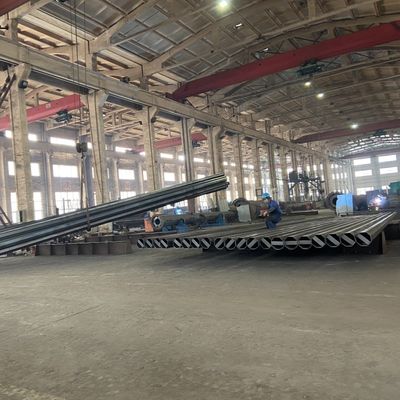

Manufacturing Process
Our factory owns advanced production lines and machines including two bending calibration machines, hydraulic plate shearing machine, cutting machine, slitting machine, two gas welding machines, hydraulic straightener, etc. All insure us to produce steel poles with best quality.
Inspection
To ensure the quality, we have professional engineers to inspect the poles during the manufacturing and before delivery.
We have Lab Test, Workload Test, Steel thickness Test, Galvanization thickness Test, etc.

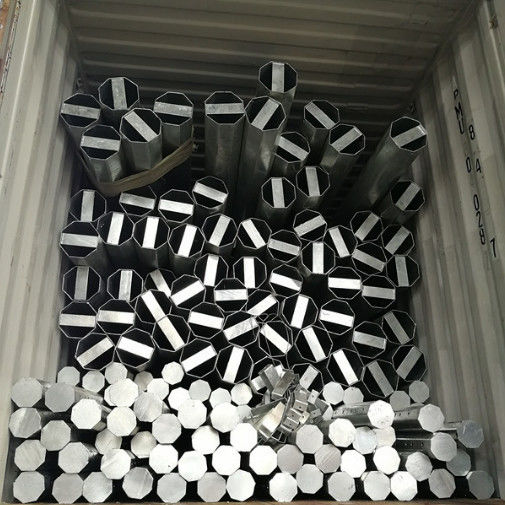

Delivery
We normally use 40HQ containers and our Port limit weight for a 40HQ is 26 tons.
