25FT To 45FT Electric Steel Pole Davao Nea Standard Galvanized Steel Post
Product Details:
| Place of Origin: | China |
| Brand Name: | Hongxin |
| Certification: | ISO 9001 |
| Model Number: | HX-2545 |
| Document: | Company Profile-HX.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 tons |
|---|---|
| Price: | 800 USD |
| Packaging Details: | Bare delivery, Sack Wrap or Fabrics |
| Delivery Time: | Within 15 working days |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 1000 tons per month |
|
Detail Information |
|||
| Height: | 25FT-45FT | Top Diameter: | 127mm |
|---|---|---|---|
| Material: | Q355/Q235 | Thick: | 2.75mm/3.0mm |
| Shape: | Octagonal | Load: | 350KGF/ 500KGF |
| Welding: | AWS D1.1 | Surface: | Hot Dip Galvanized ASTM A123 |
| Galvanizing Thick: | Min Average Over 86 Microns | Applied: | 15KV Power Line |
| Warranty: | 5 Years | ||
| Highlight: | 25FT Electric Steel Pole,45FT Electric Steel Pole,Nea Standard galvanized steel post |
||
Product Description

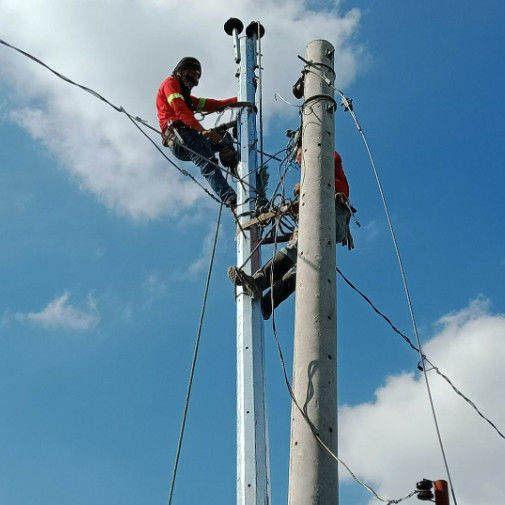

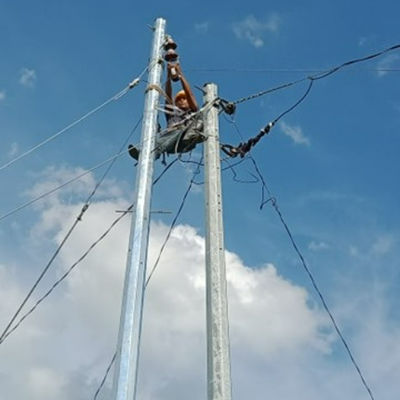

25FT-45FT Philippines Davao Nea Standard Galvanized Electric Steel Poles
Factory Profile
YIXING HONGXIN ILLUMINATION FACILITIES CO., LTD. is located in Yinhe Road No.3,Wanshi Industrial District (South Area), Yixing City, Jiangsu,China.
Hongxin was established in 2001 with a registered capital of 30 million RMB yuan. The factory covers an area of 15,000 square meters. With 50 staff working together, the monthly production capacity of our factory is more than 1000 tons of steel poles and steel tube components. Moreover, our factory has the professional engineer team, experienced overseas department and domestic marketing department. Advanced test equipment, high-quality producing machines and sophisticated technology ensures us to provide the best products and services to meet customers’ different requirements.
Our main products include power transmission poles, wind power generation poles, railway electrification supporting poles, various high-mast lamp poles, and street lighting poles used in expressways, airports, bus stations, parking lots, train stations, etc. We also provide garden lighting poles, traffic signal poles, communication towers, light rail towers, aerial cable car towers, and flag poles (made of steel or stainless steel).
Finshed Products
Steel Pole of National Electrification Administration
(PHILIPPINES)
Specification for Distribution Steel Pole 25FT, 30FT, 35FT, 40FT,45FT.
|
Height (ft) |
Thickness (mm) |
Butt Diameter (mm) |
Top Diameter (mm) |
Design Load (kg) |
Yield Stress (MPA) |
Zinc Coating (microns) |
|
25 |
2.5 |
152 |
120 |
300 |
345 |
86 |
|
30 |
3.0 |
226 |
127 |
500 |
345 |
86 |
|
35 |
3.0 |
248 |
127 |
500 |
345 |
86 |
|
40 |
3.0 |
317 |
127 |
500 |
345 |
86 |
|
45 |
4.0 |
328 |
127 |
750 |
345 |
86 |
Material
Raw material of general-purpose steel GB/T1591-2008, Q255, Q355, Q420, Q460 used in China.
|
China-GB |
America-ASTM |
Equivalent |
|
Q255 |
Grade D |
SS400,S235JO |
|
Q355 |
Grade50[345] |
S355JR |
|
Q420 |
Grade60[415] |
S420NL |
|
Q460 |
Grade65[450] |
S460NL |
Manufacturing Process
Our factory owns advanced production lines and machines including two bending calibration machines, hydraulic plate shearing machine, cutting machine, slitting machine, two gas welding machines, hydraulic straightener, etc. All insure us to produce steel poles with best quality.
Inspection
To ensure the quality, we have professional engineers to inspect the poles during the manufacturing and before delivery.
We have Lab Test, Workload Test, Steel thickness Test, Galvanization thickness Test, etc.
Packing and Delivery
* We have different packing to meet your requirement.
1. No packing, just bare poles to be delivered directly. This is the most economic way.
2. Sack wrap.
3. Non-woven fabrics wrap.
* We normally use 40ft container and our Port limit weight for 40ft container is 26Ton.
* If poles are with flange or in order to avoid any scratch while delivery, we will use 40ft open top container, which is a
bit more costive than the 40ft container.
We normally use 40HQ containers and our Port limit weight for a 40HQ is 26 tons.
