AWS Welding 15kv Galvanised Metal Posts Electric Power Distribution Pole
Product Details:
| Place of Origin: | China |
| Brand Name: | Hongxin |
| Certification: | ISO 9001 |
| Model Number: | HX-2545 |
| Document: | Company Profile-HX.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 tons |
|---|---|
| Price: | 800 USD |
| Packaging Details: | Bare delivery, Sack Wrap or Fabrics |
| Delivery Time: | Within 15 working days |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 1000 tons per month |
|
Detail Information |
|||
| Height: | 25FT 30FT 35FT 40FT 45FT | Shape: | Octagonal/ 8 Sides |
|---|---|---|---|
| Material: | Q355/Q235 | Thick: | 2.75mm/ 3.0mm |
| Load: | 300KGF/ 500KGF/ 750KGF | Welding: | AWS D1.1 |
| Surface: | Hot Dip Galvanized / Black Tar Painting | Galvanizing Thick: | Min Average Over 86 Microns |
| Applied: | 15kv Power Line | Warranty: | 5 Years |
| Highlight: | AWS Welding galvanised metal posts,15kv galvanised metal posts,AWS Electric Power Distribution Pole |
||
Product Description

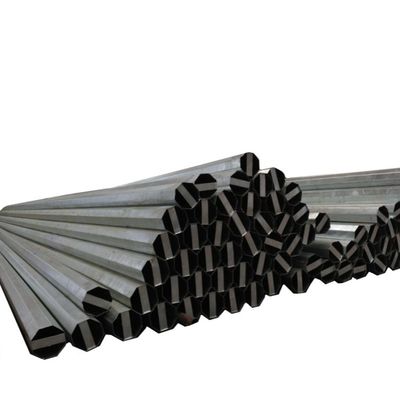

Galvanized Octagonal Metal Pole Electric Power Distribution Steel Pole
Yixing Hongxin Illumination Facilities mainly produces the hot dip galvanized steel poles.
2-25m height,hot-dipped galvanization, Bitumen painting or spraying powder
Electric steel poles in round, octagonal or polygonal shapes.
1) The welding seam is smooth and straight.
2) Use automatic gas welding or automatic submerged arc welding
3) Both the adjustment of the color and that of the height are alternative.
4) Strict control and test measures ensure the high quality.
5) Zinc coating thickness at least 86um in average.
Material
Raw material of general-purpose steel GB/T1591-2008, Q255, Q355, Q420, Q460 used in China.
|
China-GB |
America-ASTM |
Equivalent |
|
Q255 |
Grade D |
SS400,S235JO |
|
Q355 |
Grade50[345] |
S355JR |
|
Q420 |
Grade60[415] |
S420NL |
|
Q460 |
Grade65[450] |
S460NL |
Manufacturing Process
Our factory owns advanced production lines and machines including two bending calibration machines, hydraulic plate shearing machine, cutting machine, slitting machine, two gas welding machines, hydraulic straightener, etc. All insure us to produce steel poles with best quality.

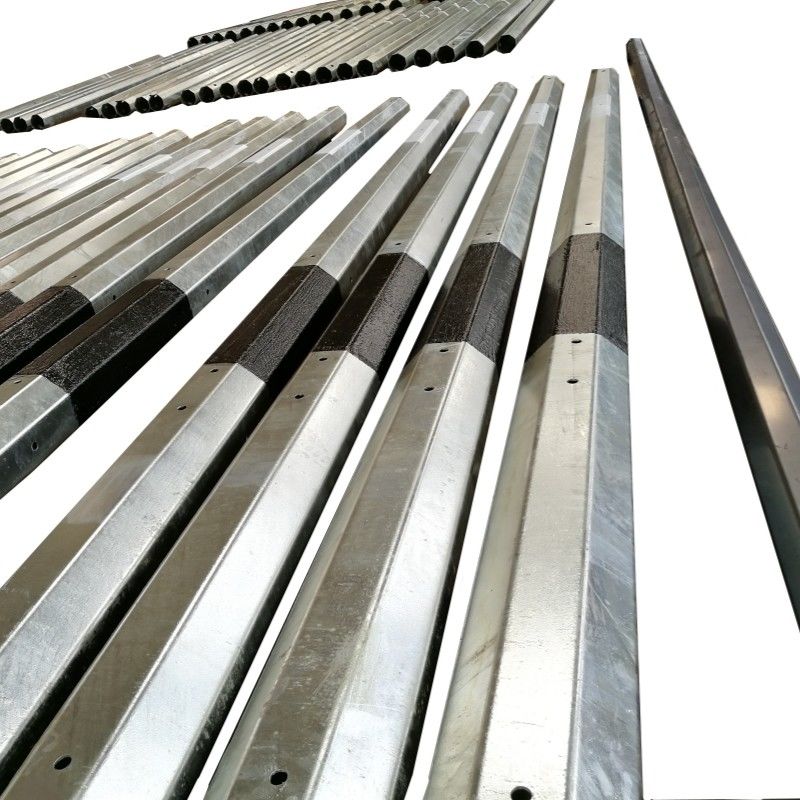

Finshed Products
Steel Pole of National Electrification Administration
(PHILIPPINES)
Specification for Distribution Steel Pole 25FT, 30FT, 35FT, 40FT,45FT.
|
Height (ft) |
Thickness (mm) |
Butt Diameter (mm) |
Top Diameter (mm) |
Design Load (kg) |
Yield Stress (MPA) |
Zinc Coating (microns) |
|
25 |
2.5 |
152 |
120 |
300 |
345 |
86 |
|
30 |
3.0 |
226 |
127 |
500 |
345 |
86 |
|
35 |
3.0 |
248 |
127 |
500 |
345 |
86 |
|
40 |
3.0 |
317 |
127 |
500 |
345 |
86 |
|
45 |
4.0 |
328 |
127 |
750 |
345 |
86 |
Inspection
To ensure the quality, we have professional engineers to inspect the poles during the manufacturing and before delivery.
We have Lab Test, Workload Test, Steel thickness Test, Galvanization thickness Test, etc.
Delivery
We normally use 40HQ containers and our Port limit weight for a 40HQ is 26 tons.
