35FT 40FT Smart Electrical Distribution Steel Pole Galvanised Steel Posts 350KGF
Product Details:
| Place of Origin: | China |
| Brand Name: | Hongxin |
| Certification: | ISO 9001 |
| Model Number: | HX-2545 |
| Document: | Company Profile-HX.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 tons |
|---|---|
| Price: | 800 USD |
| Packaging Details: | Bare delivery, Sack Wrap or Fabrics |
| Delivery Time: | Within 15 working days |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 1000 tons per month |
|
Detail Information |
|||
| Height: | 25FT 30FT 35FT 40FT 45FT | Shape: | Octagonal/ 8 Sides |
|---|---|---|---|
| Material: | Q355/Q235 | Thick: | 2.75mm/ 3.0mm |
| Load: | 500KGF/350KGF | Surface: | Hot Dip Galvanized / Black Tar Painting |
| Galvanizing Thick: | Min Average Over 86 Microns | Applied: | 15kv 69Kv Power Line |
| Warranty: | 5 Years | ||
| Highlight: | 35FT Distribution Steel Pole,40FT Distribution Steel Pole,galvanised steel posts 350KGF |
||
Product Description
20FT 30FT 35FT 40FT Smart Electrical Steel Pole Galvanized Electric Power Pole Good Price
Company Profile
YIXING HONGXIN ILLUMINATION FACILITIES CO., LTD. is located in Yinhe Road No.3,Wanshi Industrial District (South Area), Yixing City, Jiangsu,China.
Hongxin was established in 2001 with a registered capital of 30 million RMB yuan. The factory covers an area of 15,000 square meters. With 50 staff working together, the monthly production capacity of our factory is more than 1000 tons of steel poles and steel tube components. Moreover, our factory has the professional engineer team, experienced overseas department and domestic marketing department. Advanced test equipment, high-quality producing machines and sophisticated technology ensures us to provide the best products and services to meet customers’ different requirements.
Our main products include power transmission poles, wind power generation poles, railway electrification supporting poles, various high-mast lamp poles, and street lighting poles used in expressways, airports, bus stations, parking lots, train stations, etc. We also provide garden lighting poles, traffic signal poles, communication towers, light rail towers, aerial cable car towers, and flag poles (made of steel or stainless steel).
Through the efforts of the company staff, the support and cooperation from clients all over
the world, our company's products have been exported to Philippines, Australia, America,
Africa, Latin America, Jordan, Panama, etc. We have good export experience with 3 containers exported overseas in average every day.
We sincerely welcome all new and old customers to visit us and develop together! Welcome your inquiries and visits!
Material
Raw material of general-purpose steel GB/T1591-2008, Q255, Q355, Q420, Q460 used in China.
|
China-GB |
America-ASTM |
Equivalent |
|
Q255 |
Grade D |
SS400,S235JO |
|
Q355 |
Grade50[345] |
S355JR |
|
Q420 |
Grade60[415] |
S420NL |
|
Q460 |
Grade65[450] |
S460NL |
Manufacturing Process
Our factory owns advanced production lines and machines including two bending calibration machines, hydraulic plate shearing machine, cutting machine, slitting machine, two gas welding machines, hydraulic straightener, etc. All insure us to produce steel poles with best quality.

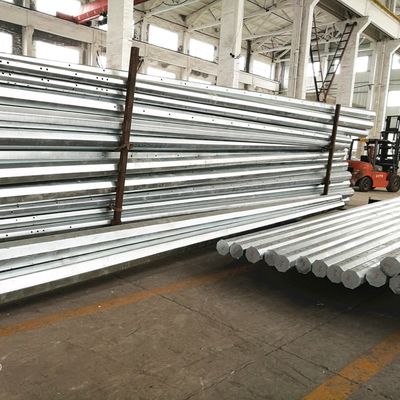

Finshed Products
Steel Pole of National Electrification Administration
(PHILIPPINES)
Specification for Distribution Steel Pole 25FT, 30FT, 35FT, 40FT,45FT.
|
Height (ft) |
Thickness (mm) |
Butt Diameter (mm) |
Top Diameter (mm) |
Design Load (kg) |
Yield Stress (MPA) |
Zinc Coating (microns) |
|
25 |
2.5 |
152 |
120 |
300 |
345 |
86 |
|
30 |
3.0 |
226 |
127 |
500 |
345 |
86 |
|
35 |
3.0 |
248 |
127 |
500 |
345 |
86 |
|
40 |
3.0 |
317 |
127 |
500 |
345 |
86 |
|
45 |
4.0 |
328 |
127 |
750 |
345 |
86 |
Inspection
To ensure the quality, we have professional engineers to inspect the poles during the manufacturing and before delivery.
We have Lab Test, Workload Test, Steel thickness Test, Galvanization thickness Test, etc.
Delivery
We normally use 40HQ containers and our Port limit weight for a 40HQ is 26 tons.
