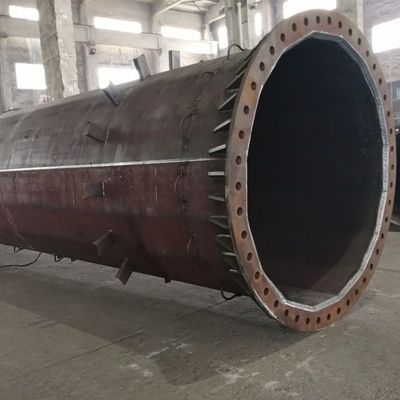

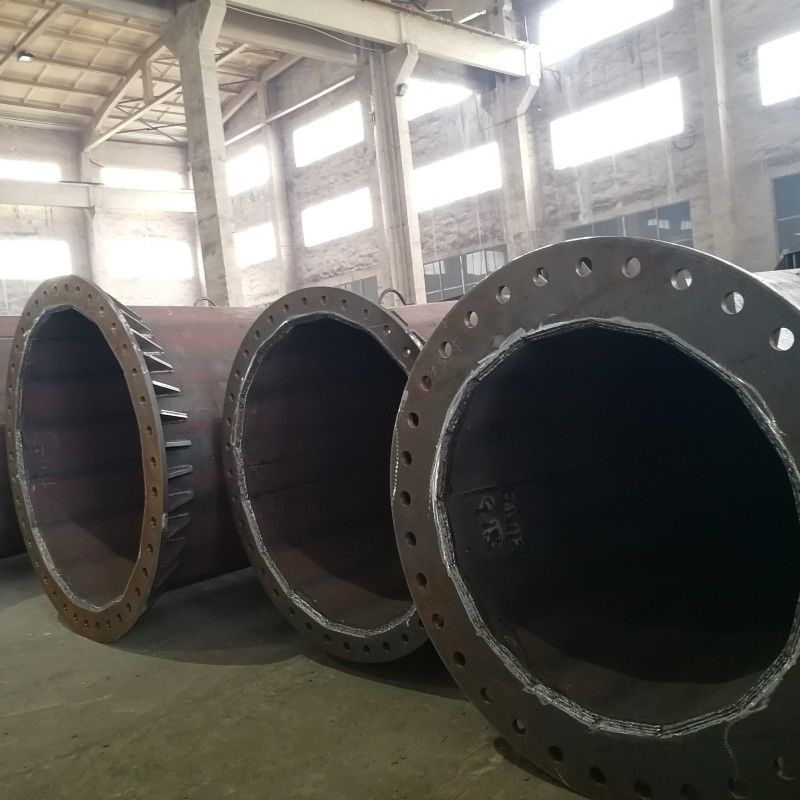

10kv 35kv 110kv Polygonal Pole Hot Dip Galvanized Steel Suspension Pole Tensile Pole
Product Details:
| Place of Origin: | China |
| Brand Name: | Hongxin |
| Certification: | ISO 9001 |
| Model Number: | HX-sta |
| Document: | Company Profile-HX.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 ton |
|---|---|
| Price: | 600 USD |
| Packaging Details: | Bare, Sack wrap, Fabric wrap |
| Delivery Time: | within 15 working days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 1000 tons per month |
|
Detail Information |
|||
| Product: | Steel Pole | Type: | Suspension Pole/ Tensile Pole/Angle Pole |
|---|---|---|---|
| Material: | Q345/ Q420/ Q460 | Thick: | 3mm-30mm |
| Surface: | Hot Dip Galvanized | Applied: | 10kV-550kV |
| Yield Strength: | Min 345Mpa | Welding: | AWS D1.1 |
| Warranty: | 5 Years | ||
| Highlight: | 35kv Polygonal Pole,110kv Suspension Pole,Q345 Tensile Pole |
||
Product Description
10kv 35kv 110kv 220kv Hot Dip Galvanized Steel Suspension Pole Tensile Pole Strain Pole Angle Pole
Direct China Steel Pole Factory: Yixing Hongxin Illumination Facilites Co.,Ltd.
Over 25 Years History! 30 Million RMB Registered Capital! 15000 Square Meters!
Advanced Machines! Experienced Engineers! Skilled Workers!
Specialized in Manufacturing Hot Dip Galvanizing Steel Poles!
Production Capacity Over 1000 Tons Per Month!
Specifications:
| Type | Straight Pole ,Tensile Pole ,Turn Pole |
| Suit for | Electricity Network |
| Shape | polygonal |
| Material | Steel |
| Torlance of dimenstion | +- 2% |
| Power | 10 KV ~550 KV |
| Safety Factor | Safety factor for conducting wine : 8 |
| Design Load in Kg | 300~ 1000 Kg appliced to 50cm from the top pole |
| Marks | Name plate through rivert or glue ,engrave ,emboss as per customer requirement |
| Surface treatment |
Hot dip galvanized with ASTM A 123, color as client required. |
| Joint of Poles |
Insert mode,innerflange mode,face to face joint mode |
| Design of pole | Against earthquake of 8 grade |
| Wind Speed | 160 Km/Hour . 30 m /s |
| Minimum yield strength | 355 mpa |
| Minimum ultimate tensile strength | 490 mpa |
| Max ultimate tensile strength | 620 mpa |
| Standard | ISO 9001 |
| Length of per section | Within 14m once forming without slip joint |
| Welding | Welding Standard :AWS ( American Welding Society ) D 1.1 |
| Thickness | 2.5 mm to 30 mm |
Material
Applied to the material of general-purpose steel GB/T1591-2008, Q235, Q345, Q420, Q460 used in China.
| CHINA-GB | AMERICA-ASTM | EQUIVALENT |
| Q235 | Grade D | SS400, S235JO |
| Q345 | Grade50 | S355JR |
| Q420 | Grade60 | S420NL |
| Q460 | Grade65 | S460NL |
Terms and Conditions
1. Price Term: EXW, FOB, CFR or CIF.
Ø EXW: Poles Cost
Ø FOB : Pole Cost + Land Transportation + Fee on Port
Ø CFR : Pole Cost + Land Transportation + Fee on Port + Sea Freight
Ø C I F : Pole Cost + Land Transportation + Fee on Port + Sea Freight + Insurance.
2. MOQ: One 40FT Container.
3. Payment Term: Typically 30% by T/T as a deposit, balance by T/T or L/C at sight before shipment. Other payment way can be negotiated.
4. Delivery Time: 30 working days after PI/drawing/ prepayment confirmed.
5. Package: Normally wrapped by plastic bags or burlap cloth at the top and bottom, or according to clients’ requirement.
