Philippines Electric Steel Pole 15kv 500KGF Galvanized 40FT Galvanized Metal Posts
Product Details:
| Place of Origin: | China |
| Brand Name: | Hongxin |
| Certification: | ISO 9001 |
| Model Number: | HX-40 |
| Document: | Company Profile-HX.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 tons |
|---|---|
| Price: | 800 USD |
| Packaging Details: | Bare delivery, Sack Wrap or Fabrics |
| Delivery Time: | Within 15 working days |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 1000 tons per month |
|
Detail Information |
|||
| Height: | 40FT | Shape: | Octagonal/ 8 Sides |
|---|---|---|---|
| Material: | Q355/Q235 | Thick: | 2.75mm/ 3.0mm |
| Load: | 500KGF | Surface: | Hot Dip Galvanized / Black Tar Painting |
| Galvanizing Thick: | Min Average Over 86 Microns | Applied: | 15kv Power Line |
| Warranty: | 5 Years | ||
| Highlight: | Philippines Electric Steel Pole 15kv,Electric Steel Pole 500KGF,40FT galvanized metal posts |
||
Product Description

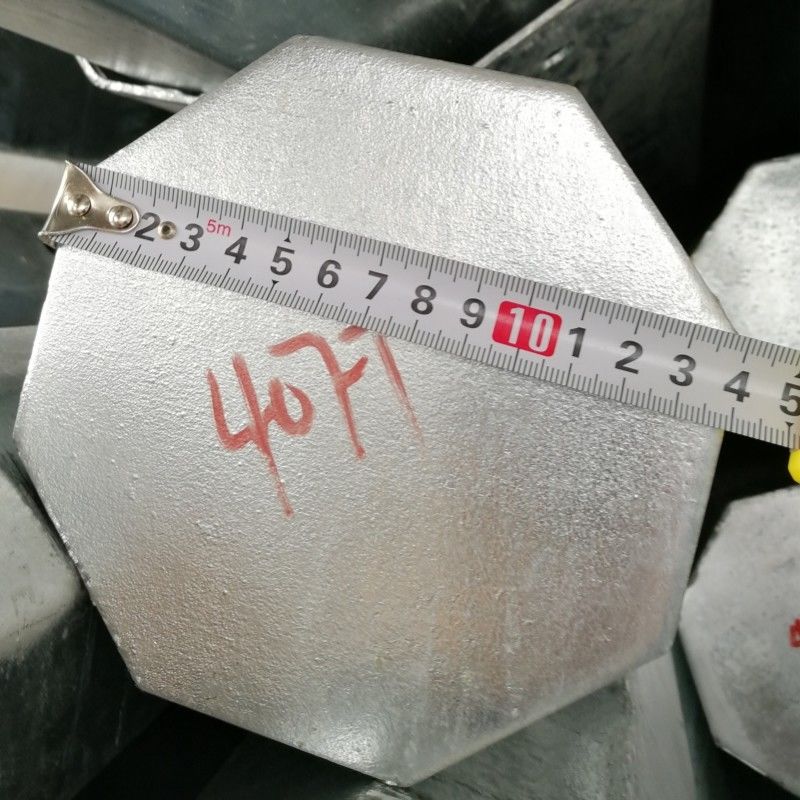

Philippines Nea Standard 15kv 500KGF Galvanized 40FT Steel Pole
Yixing Hongxin Illumination Facilities Co.,Ltd. is the direct factory specialized in manufacturing the hot dip galvanized 40FT electric steel poles.
Height: 40FT (11900mm)
Material: Q355B/ ASTM A36
Thickness: 3.0mm/ 2.75mm
Shape: Octagonal/ 8 sides
Design Load: 500KGF
Hongxin was established in 2001 with a registered capital of 30 million RMB yuan. The factory covers an area of 15,000 square meters. With 50 staff working together, the monthly production capacity of our factory is more than 1000 tons of steel poles and steel tube components. Moreover, our factory has the professional engineer team, experienced overseas department and domestic marketing department. Advanced test equipment, high-quality producing machines and sophisticated technology ensures us to provide the best products and services to meet customers’ different requirements.
Material
Raw material of general-purpose steel GB/T1591-2008, Q255, Q355, Q420, Q460 used in China.
|
China-GB |
America-ASTM |
Equivalent |
|
Q255 |
Grade D |
SS400,S235JO |
|
Q355 |
Grade50[345] |
S355JR |
|
Q420 |
Grade60[415] |
S420NL |
|
Q460 |
Grade65[450] |
S460NL |
Manufacturing Process
Our factory owns advanced production lines and machines including two bending calibration machines, hydraulic plate shearing machine, cutting machine, slitting machine, two gas welding machines, hydraulic straightener, etc. All insure us to produce steel poles with best quality.

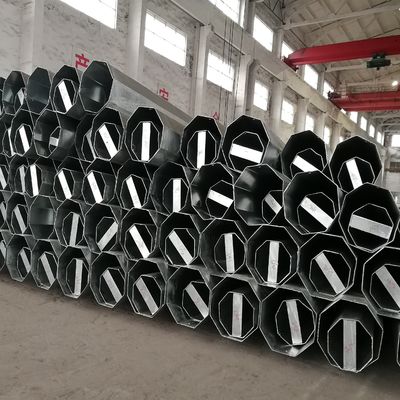

Finshed Products
Steel Pole of National Electrification Administration
(PHILIPPINES)
Specification for Distribution Steel Pole 25FT, 30FT, 35FT, 40FT,45FT.
|
Height (ft) |
Thickness (mm) |
Butt Diameter (mm) |
Top Diameter (mm) |
Design Load (kg) |
Yield Stress (MPA) |
Zinc Coating (microns) |
|
25 |
2.5 |
152 |
120 |
300 |
345 |
86 |
|
30 |
3.0 |
226 |
127 |
500 |
345 |
86 |
|
35 |
3.0 |
248 |
127 |
500 |
345 |
86 |
|
40 |
3.0 |
317 |
127 |
500 |
345 |
86 |
|
45 |
4.0 |
328 |
127 |
750 |
345 |
86 |
Inspection
To ensure the quality, we have professional engineers to inspect the poles during the manufacturing and before delivery.
We have Lab Test, Workload Test, Steel thickness Test, Galvanization thickness Test, etc.

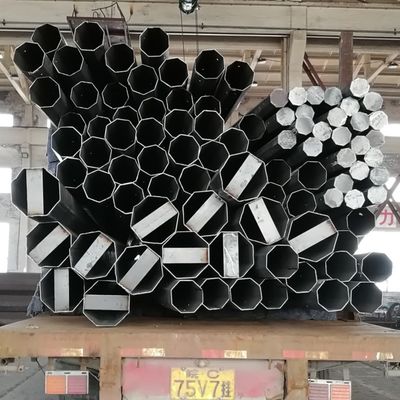

Delivery
We normally use 40HQ containers and our Port limit weight for a 40HQ is 26 tons.
