127mm 45FT Metal Utility Pole 750KGF Galvanized Tapered Steel Tube
Product Details:
| Place of Origin: | China |
| Brand Name: | Hongxin |
| Certification: | ISO 9001 |
| Model Number: | HX-45 |
| Document: | Company Profile-HX.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 tons |
|---|---|
| Price: | 800 USD |
| Packaging Details: | Bare delivery, Sack Wrap or Fabrics |
| Delivery Time: | Within 15 working days |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 1000 tons per month |
|
Detail Information |
|||
| Height: | 45FT | Shape: | Octagonal/ 8 Sides |
|---|---|---|---|
| Material: | Q355/Q235 | Thick: | 3.75mm/ 4.0mm |
| Load: | 750KGF | Surface: | Hot Dip Galvanized |
| Galvanizing Thick: | Min Average Over 86 Microns | Applied: | 15kv Power Line |
| Warranty: | 5 Years | ||
| Highlight: | 127mm Metal Utility Pole,45FT Metal Utility Pole,750KGF tapered steel tube |
||
Product Description
Philippines 45FT Nea Standard 750KGF Load Galvanized Steel Pole
This 45FT distribution steel pole is widely used in 15kv lines in the Philippines. It's Nea Standard poles. It's easily transported and installed. Yixing Hongxin Illumination Facilities Co.,Ltd. is the direct China factroy with production capacity of 1000 tons per month. Diameters of the poles are as follows:
Pole height:45FT
Shape: Octagonal
Material: ASTM A572 with Fy≥50ksi min yield strength (equals to Q355B Steel)
Top diameter: 127mm
Butt diameter: 328mm
Thickness: 4.0mm
Design load: 750KGF
Material
Raw material of general-purpose steel GB/T1591-2008, Q255, Q355, Q420, Q460 used in China.
|
China-GB |
America-ASTM |
Equivalent |
|
Q255 |
Grade D |
SS400,S235JO |
|
Q355 |
Grade50[345] |
S355JR |
|
Q420 |
Grade60[415] |
S420NL |
|
Q460 |
Grade65[450] |
S460NL |
Manufacturing Process
Our factory owns advanced production lines and machines including two bending calibration machines, hydraulic plate shearing machine, cutting machine, slitting machine, two gas welding machines, hydraulic straightener, etc. All insure us to produce steel poles with best quality.

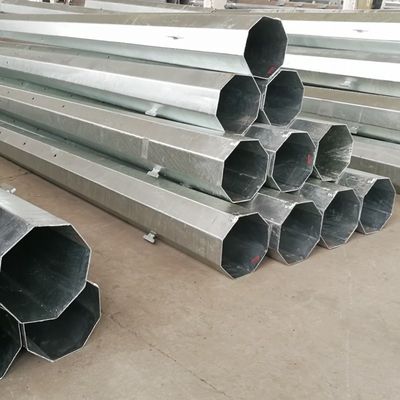

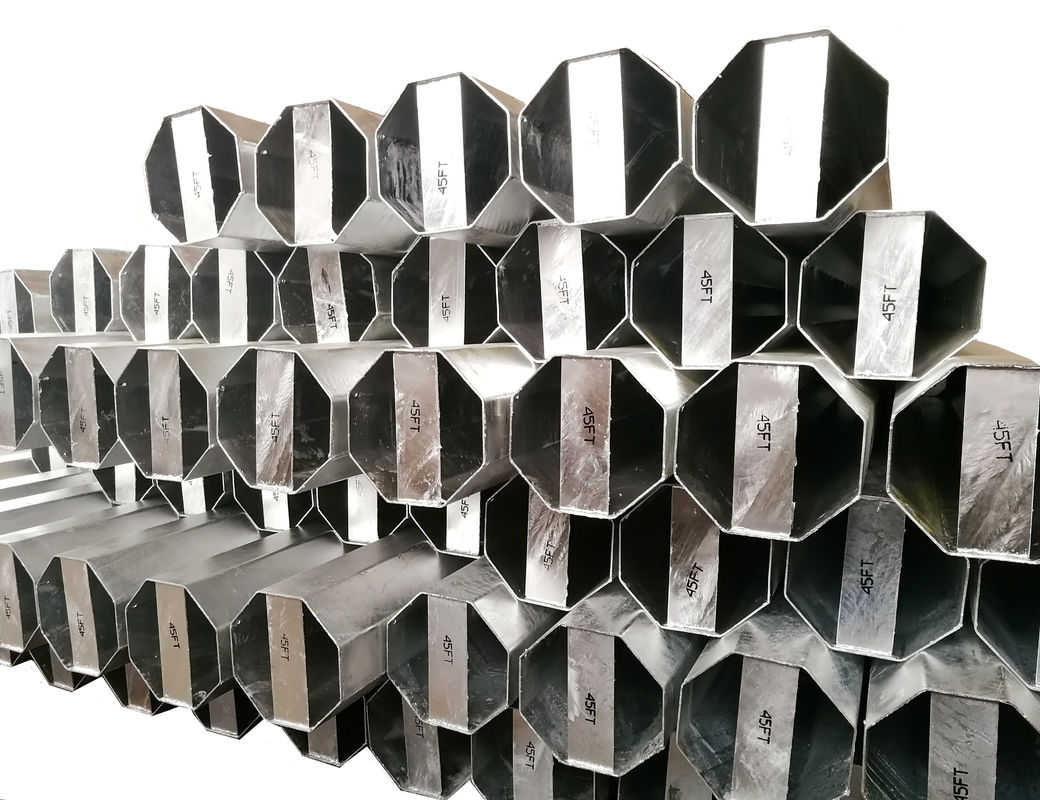

Finshed Products
Steel Pole of National Electrification Administration
(PHILIPPINES)
Specification for Distribution Steel Pole 25FT, 30FT, 35FT, 40FT,45FT.
|
Height (ft) |
Thickness (mm) |
Butt Diameter (mm) |
Top Diameter (mm) |
Design Load (kg) |
Yield Stress (MPA) |
Zinc Coating (microns) |
|
25 |
2.5 |
152 |
120 |
300 |
345 |
86 |
|
30 |
3.0 |
226 |
127 |
500 |
345 |
86 |
|
35 |
3.0 |
248 |
127 |
500 |
345 |
86 |
|
40 |
3.0 |
317 |
127 |
500 |
345 |
86 |
|
45 |
4.0 |
328 |
127 |
750 |
345 |
86 |
Inspection
To ensure the quality, we have professional engineers to inspect the poles during the manufacturing and before delivery.
We have Lab Test, Workload Test, Steel thickness Test, Galvanization thickness Test, etc.
Delivery
We normally use 40HQ containers and our Port limit weight for a 40HQ is 26 tons.
