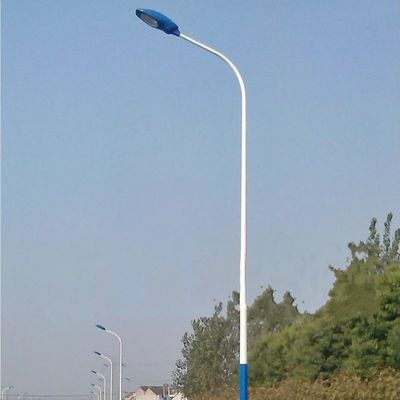

Q235 Single Arm Galvanized Solar Light Steel Lamp Pole
Product Details:
| Place of Origin: | China |
| Brand Name: | Hongxin |
| Certification: | ISO 9001 |
| Model Number: | HX-612 |
| Document: | Company Profile-HX.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 tons |
|---|---|
| Price: | 800 USD |
| Packaging Details: | Bare delivery, Sack Wrap or Fabrics |
| Delivery Time: | Within 15 working days |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 1000 tons per month |
|
Detail Information |
|||
| Height: | 6m-12m | Shape: | Round, Octagonal |
|---|---|---|---|
| Material: | Q355/Q235 | Thick: | 3.0mm-5.0mm |
| Arm: | Single/ Double | Surface: | Hot Dip Galvanized / Powder Coating |
| Applied: | Street, Park, Garden, Railway, Airport | Warranty: | 5 Years |
| Highlight: | q235 lighting lamp pole,q235 steel lighting pole,galvanized lighting lamp pole |
||
Product Description
Material
Raw material of general-purpose steel GB/T1591-2008, Q255, Q355, Q420, Q460 used in China.
|
China-GB |
America-ASTM |
Equivalent |
|
Q255 |
Grade D |
SS400,S235JO |
|
Q355 |
Grade50[345] |
S355JR |
|
Q420 |
Grade60[415] |
S420NL |
|
Q460 |
Grade65[450] |
S460NL |
Manufacturing Process
Our factory owns advanced production lines and machines including two bending calibration machines, hydraulic plate shearing machine, cutting machine, slitting machine, two gas welding machines, hydraulic straightener, etc. All insure us to produce steel poles with best quality.
Finshed Products
|
Material: |
Hot rolled steel, Q235,Q345,S235,S355,SS400,Gr 50 |
|
Yield strength of Material |
Minimum yield strength>=235n/mm2 for Q235, S235 and SS400 |
|
Minimum yield strength>=345n/mm2 for Q345 S355 and Gr 50 |
|
|
Wall thickness |
2~15mm or more |
|
Pole's Shape Available |
Round, Polygonal, Taper Octagonal, Taper round, Round conical, Taper Square, Square. |
|
Welding |
Advanced submerge-arc welding and CNC welding equipment. It has past flaw testing, internal and external double welding makes the welding beautiful in shape. |
|
Manufacture Capacity |
200 pcs /day |
|
Wall thickness Tolerance |
+- 0.1mm from 2.3mm to 4mm. +- 0.2mm from 5mm to 20mm. +- 0.5mm from 22mm to 30mm |
|
Painting color |
( RAL ) Color card or customized |
|
Surface treatment 1 |
Hot dip Galvanized |
|
Surface treatment 2 |
Hot dip galvanizing with powder coating |
|
Temperature range |
-35 °C~+45 °C |
|
Wind Speed: |
Against wind pressure of 120Km/h to 180Km/h, according to client’s design. |
|
Base plate mounted |
Base plate is square, octagonal or round in shape with slotted holes for anchor bolt and dimension as per customer’s requirement. |
|
Ground mounted: |
The length buried underground as per customer’s requirement. |
|
Quality Control |
According to ISO9001-2008 requirements. |
|
Other |
Less land occupation & easy maintenance. |
Inspection
To ensure the quality, we have professional engineers to inspect the poles during the manufacturing and before delivery.
We have Lab Test, Workload Test, Steel thickness Test, Galvanization thickness Test, etc.

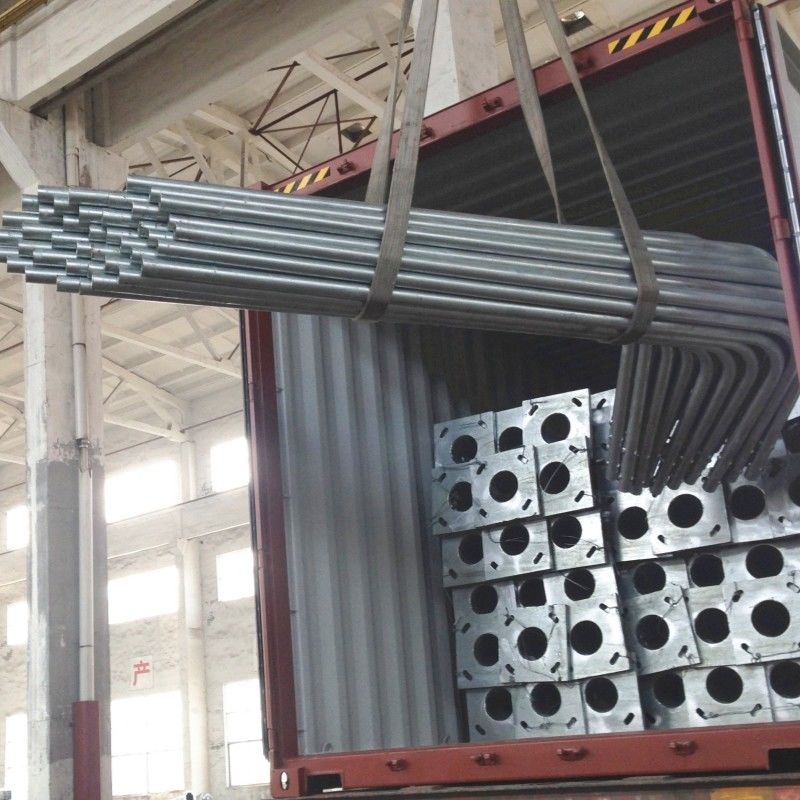

Delivery
We normally use 40HQ containers and our Port limit weight for a 40HQ is 26 tons.
