80FT Dodecagonal Metal Transmission Steel Pole For 69KV Power Line
Product Details:
| Place of Origin: | China |
| Brand Name: | Hongxin |
| Certification: | ISO 9001 |
| Model Number: | HX-80 |
| Document: | Company Profile-HX.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 tons |
|---|---|
| Price: | 800 USD |
| Packaging Details: | Bare delivery, Sack Wrap or Fabrics |
| Delivery Time: | Within 15 working days |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 1000 tons per month |
|
Detail Information |
|||
| Height: | 80FT | Shape: | Dodecagonal/ 12 Sides |
|---|---|---|---|
| Material: | Q355/Q460 | Thick: | 5mm |
| Load: | 1200KGF | Surface: | Hot Dip Galvanized |
| Galvanizing Thick: | Min Average Over 86 Microns | Applied: | 69KV Power Line |
| Warranty: | 5 Years | ||
| Highlight: | 80FT Transmission Steel Pole,Dodecagonal Transmission Steel Pole,metal transmission pole 69KV |
||
Product Description

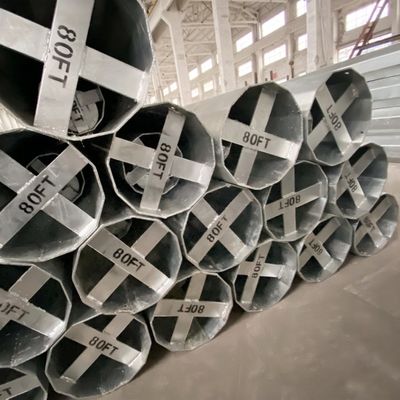

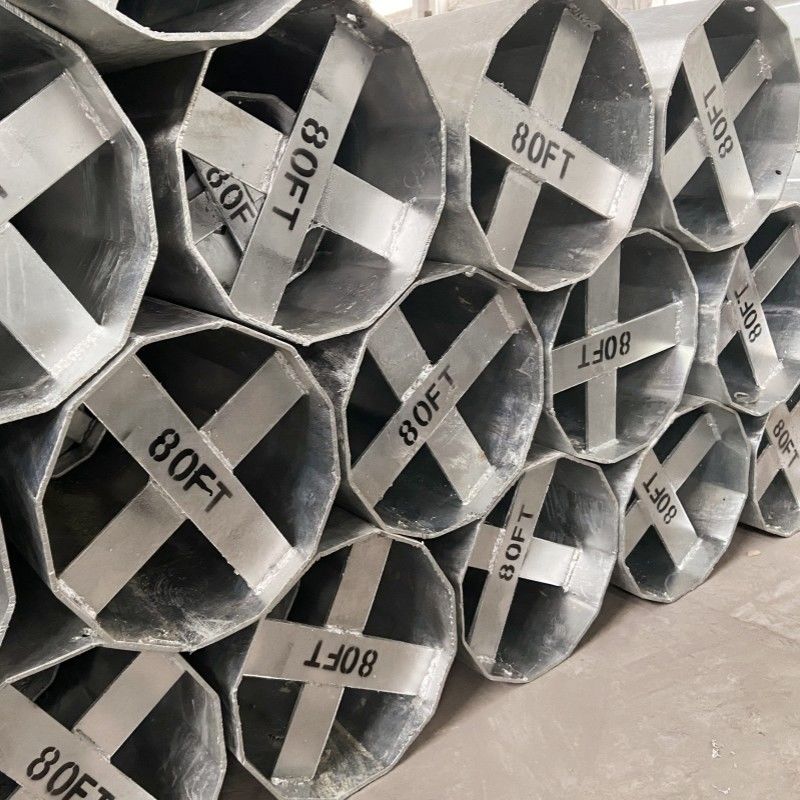

80FT Dodecagonal Galvanized Power Transmission Steel Pole
Galvanized Poles
Yixing Hongxin Illumination Facilities Co.,Ltd. is the direct China factory specialized in producing 50FT-120FT Transmission poles, Steel Lighting Poles, Traffic Signal Poles, Substation Structures, Steel Crossarm, Steel Towers and other steel components.
Our factory has professional engineers to design the practical poles and save the cost for our clients. But to design the poles, normally we need customer to provide us some parameters as follows :
- Pole Top Design Load
- Safety Factor
- Pole type with Direct Buried Type or Flanged Bolted type
- Steel Pole Shape
- Steel Material required
- Segments required
- and others we can further more discuss when we need.
Material
Raw material of general-purpose steel GB/T1591-2008, Q255, Q355, Q420, Q460 used in China.
|
China-GB |
America-ASTM |
Equivalent |
|
Q255 |
Grade D |
SS400,S235JO |
|
Q355 |
Grade50[345] |
S355JR |
|
Q420 |
Grade60[415] |
S420NL |
|
Q460 |
Grade65[450] |
S460NL |
Manufacturing Process
Our factory owns advanced production lines and machines including two bending calibration machines, hydraulic plate shearing machine, cutting machine, slitting machine, two gas welding machines, hydraulic straightener, etc. All insure us to produce steel poles with best quality.
Inspection
To ensure the quality, we have professional engineers to inspect the poles during the manufacturing and before delivery.
We have Lab Test, Workload Test, Steel thickness Test, Galvanization thickness Test, etc.
Packing and Delivery
* We have different packing to meet your requirement.
1. No packing, just bare poles to be delivered directly. This is the most economic way.
2. Sack wrap.
3. Non-woven fabrics wrap.
* We normally use 40ft container and our Port limit weight for 40ft container is 26Ton.
* If poles are with flange or in order to avoid any scratch while delivery, we will use 40ft open top container, which is a
bit more costive than the 40ft container.
We normally use 40HQ containers and our Port limit weight for a 40HQ is 26 tons.
