Home ProductsStreet Lighting Pole

20 W - 400 W Lamp Power Street Lighting Pole 355 mpa Min Yield Strength

Certification
China Jiangsu Baojuhe Science and Technology Co.,Ltd certification
China Jiangsu Baojuhe Science and Technology Co.,Ltd certification
I'm Online Chat Now

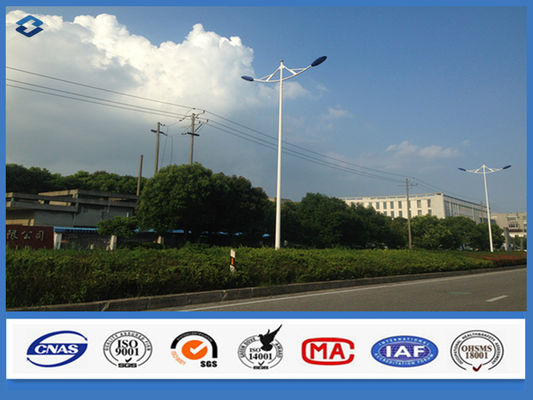

20 W - 400 W Lamp Power Street Lighting Pole 355 mpa Min Yield Strength

20 W - 400 W Lamp Power Street Lighting Pole 355 mpa Min Yield Strength
20 W - 400 W Lamp Power Street Lighting Pole 355 mpa Min Yield Strength

Large Image :  20 W - 400 W Lamp Power Street Lighting Pole 355 mpa Min Yield Strength

Product Details:
Place of Origin: Jiangsu, China
Brand Name: JSBS
Certification: ISO9001 ISO14001 OHSAS18001
Model Number: Q235
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 30-300 per piece
Packaging Details: as required
Delivery Time: within 15 working days
Payment Terms: T/T, , L/C, Western Union
Supply Ability: 18000 tons per year
Detailed Product Description
Material: Steel Sheet Surface Treatment: Hot Dip Galvanized & Powder Coating
Thickness: 3mm Or Above Galvanization: 86um
Height: 5m-12m Shape: Conical Or Polygonal
Color: White
High Light:

street lighting columns

,

electrical street light pole

Galvanized and White Powder Coating Double Arm Electric LED Light Steel Pole



Specifications

Height 5 m to 12m
Application Road, Street, Highway, etc
Shape Conical
Lamp Power 20 W- 400 W (HPS/MH)
220V (+-10%) /50Hz
Arm Double
Lighting Fixture IP 65
Working Atmosphere of Lighting Fixture -35℃~+45℃
Surface Treatment Hot dip galvanized with ASTM A 123, color as required.
Safety Against earthquake of 8 grade
Wind Speed 160 Km/Hour
Min Yield Strength 355 mpa
Min Ultimate Tensile Strength 490 mpa
Max ultimate tensile strength 620 mpa
Standard ISO 9001
Thickness 3mm or as required



Description:
Material
Normally Q235 high-quality mild steel sheet. Silicon is less than 2%. We have raw material checked in our lab test room after purchasing the steel sheet. We control the quality at the first beginning.
Shape of Pole
Round conical; Octagonal conical; Straight square; Tubular stepped; Polygonal
Shafts are made of steel sheet that folded into required shape and welded longitudinally by automatic arc welding machine
Brackets
Double brackets are in the shape and dimension as per customer's requirement
Welding
Welding confirms with international welding standard of CWB. No crack, no leakage welding, no bite edge, weld smooth level off without the concavo-convex fluctuation or any welding defects.
Base plate mounted
Base plate is square in shape with slotted holes for anchor bolts and dimension as per customer's requirement
Ground mounted
The length buried underground as per customer's requirement
Galvanizing
Hot dip galvanization with thickness of 80-100µm average. Inside and outside surface anti-corrosion treatment by hot dipping acid. Zinc coating is more than 85 um thick, which is in accord with GB/T13912-92 standard.



20 W - 400 W Lamp Power Street Lighting Pole 355 mpa Min Yield Strength 0

Manufacturing


Our penetration rate is above 95%.
Our factory owns advanced production lines and machines including bending calibration machine, hydraulic plate shears machine, shears machine, slitting machine, 208T hydraulic straightener, etc. All insure us to produce steel poles with the best quality.


After the fabrication process as cutting plate, bending, forming, automatic welding, drilling holes, we get poles checked before galvanized, hot dip galvanized and powder coating and finally we get poles checked according to client's requirements.

20 W - 400 W Lamp Power Street Lighting Pole 355 mpa Min Yield Strength 1


FAQ

1. Are you a manufacturer or a trading company?

A: We are the direct factory manufacturer and the trading company.



2. Where is your company located?

A: Our factory is located in Industrial Zone No.37, Heqiao Town, Yixing District, Wuxi City, Jiangsu Province, China(mainland).



3. What are your main products?

A: Our main products are electric poles, street lighting poles, high mast pole, telecommunication tower poles, traffic signal poles, wind generation poles, etc.



4. What's your nearest port?

A: The nearest port is Shanghai Port. We normally use 40HQ containers and our Port limit weight for a 40HQ is 26 tons.



5. What's your payment term?

A: Normally 30% deposit and rest by TT before shipping. Or L/C.



6. What's your delivery time?

A: Normally within 15 working days. If our factory is busy and your quantity is large, then around one month.



20 W - 400 W Lamp Power Street Lighting Pole 355 mpa Min Yield Strength 2
