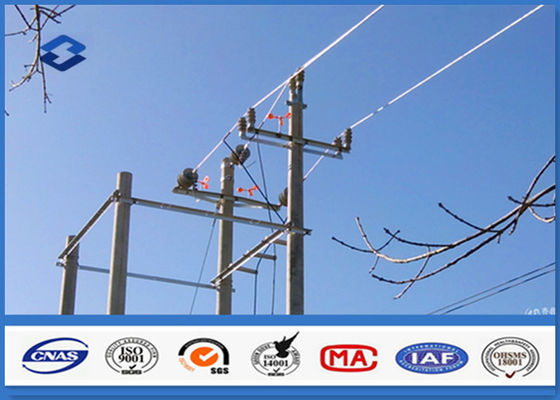

Overhead Transmission Line metal utility poles , ASTM A 123 Galvanized steel post

Overhead Transmission Line metal utility poles , ASTM A 123 Galvanized  steel post
Overhead Transmission Line metal utility poles , ASTM A 123 Galvanized  steel post Overhead Transmission Line metal utility poles , ASTM A 123 Galvanized  steel post Overhead Transmission Line metal utility poles , ASTM A 123 Galvanized  steel post Overhead Transmission Line metal utility poles , ASTM A 123 Galvanized  steel post Overhead Transmission Line metal utility poles , ASTM A 123 Galvanized  steel post Overhead Transmission Line metal utility poles , ASTM A 123 Galvanized  steel post

Large Image :  Overhead Transmission Line metal utility poles , ASTM A 123 Galvanized steel post

Product Details:
Place of Origin: China
Brand Name: JSBS
Certification: ISO9001:2008
Model Number: BS/PT - 12
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: Use sack package the poles or as customer’s request.
Delivery Time: 15 - 25 work days
Payment Terms: D/P, L/C, T/T, Western Union
Supply Ability: 2500 Ton per month
Detailed Product Description
Product Name: Steel Utility Poles Shape: Polygonal / Round
Material: Steel Q345 Welding: ASW D1.1
Finishing: Hot Dip Galvanized Galvanized: ASTM A 123
Zinc Coating: ≥86 Microns
High Light:

steel light pole

,

galvanised steel posts

Overhead Transmission Line Galvanized Steel Utility Power Poles , Metal Tubular Post



Specification



Following are some specification for customers' reference.



Distribution Range
Product Code Length ULS Pole Dimension
Top Base
11M 13.5KN 11M 13.5kN 160 328
12.5M 12KN 12.5M 12KN 160 340
12.5M 16KN 12.5M 16KN 180 380
12.5M 24KN 12.5M 24KN 200 420
14M 16KN 14M 16KN 190 402
14M 24KN 14M 24KN 210 465
15.5M 12KN 15.5M 12KN 160 405
15.5M 24KN 15.5M 24KN 210 500
Note:Tapered 12-sided, direct buried
Pole deflection less than 5% of pole height at 50% ULS

Sub Transmission Range
Product Code Length ULS Pole Dimension
Top Base
18.5M 24KN 18.5M 24KN 210 660
18.5M 40KN 18.5M 40KN 260 730
21M 40KN 21M 30KN 220 697
21M 40KN 21M 40KN 260 795
24M 30KN 24M 30KN 220 755
24M 40KN 24M 40KN 300 760
Note:Tapered 12-sided, direct buried





Description



The Overhead Transmission Line Galvanized Steel Utility Power Poles , Metal Tubular Post are widely used in electrical power transmission line and distribution industry . In order to meet the increasingly higher demand for Electrical Power Pole, our company design and produce many kinds of steel poles for the power transmission and distribution system use to satisfied different customer's request.



Products
  • Hot Dip Galvanized Electrical Transmission Power Pole in Shape Dodecagonal
Type
  • Burial Type
Voltage Grade
  • Low Voltage
  • Middle Voltage
  • High Voltage
  • 10~500KV (10KV, 13.8KV,33KV, 35KV, 66KV, 110KV,132KV, 220KV, 230KV, 330KV, 500KV or Others )
Height
  • ≥ 6M .
Shape
  • Conical / Round
  • Polygonal (Octagonal, Dodecagonal, Hexadecagonal, etc).
Material
  • Hot Roll Steel Sheet Q345, GR50 which equivalent to S355JR.
  • Min Yield Stree 345 Mpa
  • Tensile Strength 470 Mpa ~ 630 Mpa
Wall thickness
  • 3 ~ 20mm
Once Forming
  • 14m Once forming without joint
  • 40GP, 40HQ container Length is 12m , so the poles will be or more than 2 segments if longer than 12m.
Welding
  • Welding complies with AWS D1.1 standard.
  • CO2 welding or submerged arc auto methods
  • No fissure, scar, overlap, layer or other defects
  • Internal and external welding
  • Ensure 100% complete penetration welds.
Joint
  • Joint with insert mode, flange mode.
Base plate
  • Base plate is square/round/Polygon with slotted holes for anchor bolts installation.





We supply the poles based on customer's request. Different specification with different price. And the price is based on the weight of pole. The weighter, the more expensive. So to save the cost, our factory has the professional technical team to design the practical poles and save the cost for our clients.



But to design the practical poles for customers use, normally we need customer to provide us some parameter, like as following :





- Pole top design load

- Where is the position of the load , the distance from the top

- The wind Speed

- How will the wire distribute

- Pole type with Burial Type or Base Plate type

- The connections mode , use slip joint or flange

- and others we can further more discuss when we need.



Overhead Transmission Line metal utility poles , ASTM A 123 Galvanized  steel post 0



Accessories:



1. Pole

2. Base Plate

3. Pole Top Cap

4. Butt Bearing Plate

5. Holes

6. CrossArm

7. Grounding Nut & Bolts

8. Anchor Bolts

9. Climbing Rungs

10. Identification Plate

11. Bituminous Painting if needed

12. Hot dip galvanized.





Production Line


The fabrication process is cutting plate, bending/forming, automatic welding, drilling holes, quality check before galvanized, hot dip galvanized , recalibration, inspect according to client’s requirements then deliver the poles on time as contract.



Material Test:


1. All of our material are purchased from famous mill factory to assure the quality.

2. A mill certificate issued by the mill factory with stamp and signature must be provided before
     unload the material in our factory;


3. Before put into production, all the material must pass the chemical and physical analysis to
    make sure that they have met the requested strength and component.



Overhead Transmission Line metal utility poles , ASTM A 123 Galvanized  steel post 1



Our Services



1. Reply your inquiry in 24 working hours.



2. Experienced staffs answer all your questions in fluent English.



3. Customized design is available. UEM & UBM are welcomed.



4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.



5. Special discount and protection of sales are provided to our distributor.



6. Professional factory : We are manufacturer, specializing in producing all kinds of steel poles

for more than 10 years, competitive with good quantity.



7 Sample: We can send out sample for test in one week if the order quantity is big enough.

But the shipment charges is usually paid by your side, the charges will be rebounded when we have formal order.



8. As an honest seller, we always use superior raw material, advanced machines,

skilled technicians to ensure our products to be finished in high quality and stable feature.



Overhead Transmission Line metal utility poles , ASTM A 123 Galvanized  steel post 2



Terms and Conditions


1. Price Term: EXW, FOB, CFR or CIF.



Ø EXW: Poles Cost

Ø FOB : Pole Cost + Land Transportation + Fee on Port

Ø CFR : Pole Cost + Land Transportation + Fee on Port + Sea Freight

Ø C I F : Pole Cost + Land Transportation + Fee on Port + Sea Freight + Insurance.



2. MOQ: One 40FT Container.


3. Payment Term: Typically 30% by T/T as deposit, balance by T/T or L/C at sight before shipment. Other

    payment way can be negotiated.


4. Delivery Time: 15 working days per container after PI / drawing / prepayment confirmed.


5. Package: Normally wrapped by plastic bags or burlap cloth at the top and bottom,or according to clients’

    requirement.



Overhead Transmission Line metal utility poles , ASTM A 123 Galvanized  steel post 3
