30FT 35FT Hot Dip Galvanized Steel Pole in 500kgs Design Load 69KV Power

Certification
China Jiangsu Baojuhe Science and Technology Co.,Ltd certification
China Jiangsu Baojuhe Science and Technology Co.,Ltd certification
I'm Online Chat Now

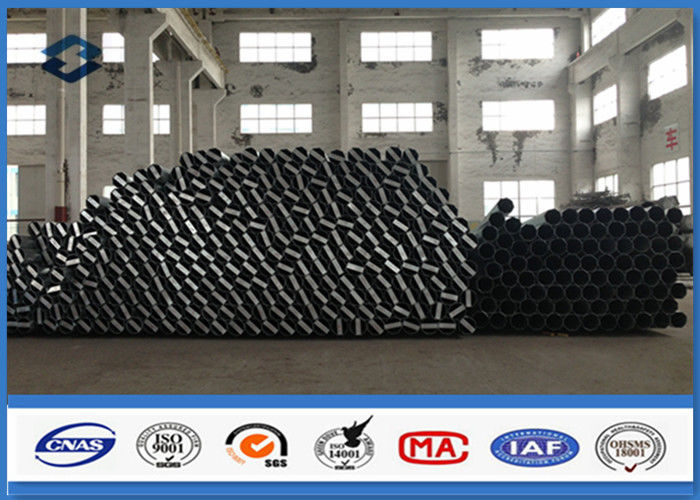

30FT 35FT Hot Dip Galvanized Steel Pole in 500kgs Design Load 69KV Power

30FT 35FT Hot Dip Galvanized Steel Pole in 500kgs Design Load 69KV Power
30FT 35FT Hot Dip Galvanized Steel Pole in 500kgs Design Load 69KV Power 30FT 35FT Hot Dip Galvanized Steel Pole in 500kgs Design Load 69KV Power 30FT 35FT Hot Dip Galvanized Steel Pole in 500kgs Design Load 69KV Power 30FT 35FT Hot Dip Galvanized Steel Pole in 500kgs Design Load 69KV Power 30FT 35FT Hot Dip Galvanized Steel Pole in 500kgs Design Load 69KV Power

Large Image :  30FT 35FT Hot Dip Galvanized Steel Pole in 500kgs Design Load 69KV Power

Product Details:
Place of Origin: China
Brand Name: JSBS
Certification: ISO9001:2008
Model Number: BS/GS - 5
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: Use sack package the poles or as customer’s request.
Delivery Time: 15 ~ 25 work day
Payment Terms: L/C, T/T, Western Union, D/P
Supply Ability: 2500 Ton per month
Detailed Product Description
Product Name: Galvanized Steel Pole Type: Burial
Material: Steel Q345 Diameter: 127mm / 226mm ; 127mm / 248mm
Surface Trement: Hot Dip Galvanized. Galvanized: ASTM A 123
Shape: Octagonal Zinc Coating: ≥ 86 Microns
Highlight:

galvanised steel pole

,

galvanized steel post



30FT 35FT Hot Dip Galvanized Octagonal Steel Pole in 500kgs Design Load


Material:

Steel Q235, SS400 ; Q345 , Gr50.

Yield strength of Material:



Minimum yield strength ≥345n/mm2



Pole’s height:

30FT , 9150MM ; 35FT 10670MM

Section

1

Wall thickness:

2.75MM , 3.0MM

Pole's Shape :

Octagonal

Power:

69LV

Welding

Welding in accordance with standard of CWB and AWS D 1.1

Galvanization:

Hot dip galvanization with min thickness 86µm on average in accordance with Chinese standardGB/T 13912-2002 or American standard ASTM A123, ISO: 2626-1985.

Manufactury Capacity Per Day: 250 pcs

Wall thickness Tolerance:



+- 0.1mm from 2.3mm to 4mm. +- 0.2mm from 5mm to 20mm. +- 0.5mm from 22mm to 30mm



Diameter:

127mm / 226mm

Finishing

Hot Dip Galvanized

Temperature range

-35 °C~+45 °C

Wind Speed:

Aganist wind pressure of 120Km/h to 180Km/h.

Install Type

Burial Type

Design Load:

500 kgs

Quality Control

According to ISO9001-2008 requirements.

Certificates

ISO9001-2008, SGS Audited Supplier, The AAA grade certificate.

Other Less land occupation & easy maintenance







Description:


Standard Accessories


- Top Cap
- Butt Plate
- Standard hole
- Grounding Nuts & Bolts

- Bolts




Philippines Nea Standard Steel Poles 25FT, 30FT, 35FT, 40FT,45FT



Height

(ft)

Thickness

(mm)

Butt Diameter

(mm)

Tip Diameter

(mm)

Design Load

(kg)

Yield Stress

(MPA)

Zinc Coating

(microns)

25 2.5 152 120 300 345 86
30 3.0 226 127 500 345 86
35 3.0 248 127 500 345 86
40 3.0 317 127 500 345 86
45 4.0 328 127 750 345

86

30FT 35FT Hot Dip Galvanized Steel Pole in 500kgs Design Load 69KV Power 0



Through the efforts of the company staff, the support and cooperation from all over the world. The company's products have been exported to Philippines, Malaysia, Australia, America, Africa, Latin America, Panama, Suriname, Costa Rica, Colombia, Jordan, Nigeria, etc. We have good export experience and with 1 container export to World in average every day.





Production Process

  • Raw material test
  • Cutting
  • Bending
  • Welding (longitudinal )
  • Dimension verify
  • Flange welding
  • Hole drilling
  • Calibration
  • Deburr
  • Galvanization or powder coating or Bituminous painting
  • Recalibration
  • Packages



30FT 35FT Hot Dip Galvanized Steel Pole in 500kgs Design Load 69KV Power 1





Our Services



1. Reply your inquiry in 24 working hours.



2. Experienced staffs answer all your questions in fluent English.



3. Customized design is available. UEM & UBM are welcomed.



4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.



5. Special discount and protection of sales are provided to our distributor.



6. Professional factory : We are manufacturer, specializing in producing all kinds of steel poles

for more than 10 years, competitive with good quantity.



7 Sample: We can send out sample for test in one week if the order quantity is big enough.

But the shipment charges is usually paid by your side, the charges will be rebounded when we have formal order.



8. As an honest seller, we always use superior raw material, advanced machines,

skilled technicians to ensure our products to be finished in high quality and stable feature.



30FT 35FT Hot Dip Galvanized Steel Pole in 500kgs Design Load 69KV Power 2





30FT 35FT Hot Dip Galvanized Steel Pole in 500kgs Design Load 69KV Power 3





Terms and Conditions

1. Price Term: EXW, FOB, CFR or CIF.


Ø EXW: Poles Cost

Ø FOB : Pole Cost + Land Transportation + Fee on Port

Ø CFR : Pole Cost + Land Transportation + Fee on Port + Sea Freight

Ø C I F : Pole Cost + Land Transportation + Fee on Port + Sea Freight + Insurance.



2. MOQ: One 40FT Container.


3. Payment Term: Typically 30% by T/T as deposit, balance by T/T or L/C at sight before shipment. Other payment way can be negotiated.


4. Delivery Time: 15 working days per container after PI / drawing / prepayment confirmed.


5. Package: Normally wrapped by plastic bags or burlap cloth at the top and bottom,or according to clients’ requirement.
