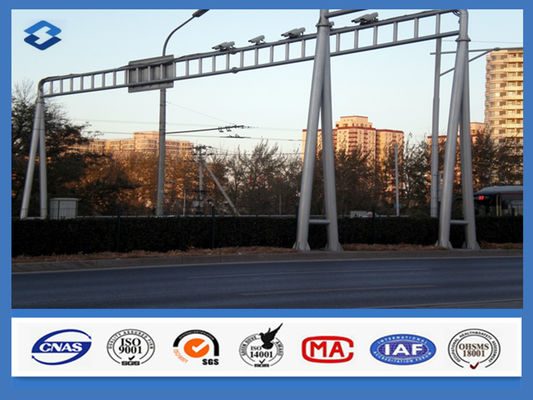

Traffice Signal Frame Structure street sign posts , Above 95% Penetration rate road sign pole

Certification
China Jiangsu Baojuhe Science and Technology Co.,Ltd certification
China Jiangsu Baojuhe Science and Technology Co.,Ltd certification
I'm Online Chat Now

Traffice Signal Frame Structure street sign posts , Above 95% Penetration rate road sign pole

Traffice Signal Frame Structure street sign posts , Above 95% Penetration rate road sign pole
Traffice Signal Frame Structure street sign posts , Above 95% Penetration rate road sign pole Traffice Signal Frame Structure street sign posts , Above 95% Penetration rate road sign pole Traffice Signal Frame Structure street sign posts , Above 95% Penetration rate road sign pole Traffice Signal Frame Structure street sign posts , Above 95% Penetration rate road sign pole Traffice Signal Frame Structure street sign posts , Above 95% Penetration rate road sign pole

Large Image :  Traffice Signal Frame Structure street sign posts , Above 95% Penetration rate road sign pole

Product Details:
Place of Origin: Jiangsu, China
Brand Name: JSBS
Certification: ISO9001 ISO14001 OHSAS18001
Model Number: Q235
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 30-300 per piece
Packaging Details: as request
Delivery Time: within 15 working days
Payment Terms: T/T, , L/C, Western Union
Supply Ability: 18000 tons per year
Detailed Product Description
Material: Steel Sheet Surface Treatment: Hot Dip Galvanized & Powder Coated
Thickness: 3mm Or Above Galvanization: 86um
Shape: Polygonal Silicon: Less Than 2%
Penetration Rate: Above 95%
High Light:

traffic sign pole

,

traffic light post

Hot Dip Galvanized Traffice Signal Frame Structure Steel Pole Post


Quick Details

Material: Hot rolled steel, Q235,Q345,S235,S355,SS400,Gr 50
Yield strength of Material Minimum yield strength>=235n/mm2 for Q235, S235 and SS400
Minimum yield strength>=345n/mm2 for Q345 S355 and Gr 50
Pole’s height: 3m ~ 15m
Length of one part Within 16m once forming without slip joint
Wall thickness 2~15mm or more
Pole's Shape Available

Round, Polygonal, Taper Octagonal, Taper round, Round conical,

Taper Square, Square.

Arm type can be made: Single arm, Double arm, Tri-arm, Four-arm
Arm Diameter: Diameter as 42mm, 48mm, 60mm, 76mm and etc, can fit to any diameter’s lamps.
Welding

Advanced submerge-arc welding and CNC welidng equipment.

It has past flaw testing, internal and external double welding makes the welding beautiful in shape.

Manufacture Capacity 200 pcs /day
Wall thickness Tolerance

+- 0.1mm from 2.3mm to 4mm. +- 0.2mm from 5mm to 20mm.

+- 0.5mm from 22mm to 30mm

Painting color ( RAL ) Color card or customized
Surface treatment 1 Hot dip Galvanized
Surface treatment 2 Hot dip galvanizing with power coating
Temperature range -35 °C~+45 °C
Wind Speed: Against wind pressure of 120Km/h to 180Km/h, according to client’s design.
Base plate mounted Base plate is square, octagonal or round in shape with slotted holes for anchor bolt and dimension as per customer’s requirement.
Ground mounted: The length buried underground as per customer’s requirement.
Quality Control According to ISO9001-2008 requirements.
Other Less land occupation & easy maintenance.


Description:

Silicon: Less than 2%

Service time: According to the installation environment, usually over 25 years.

Traffice Signal Frame Structure street sign posts , Above 95% Penetration rate road sign pole 0



Producing Process

Our factory owns advanced production lines and machines including bending calibration machine, hydraulic plate shearing machine, shearing machine, slitting machine, 208T hydraulic straightener, etc. All insure us to produce steel poles with best quality.

After the fabrication process as cutting plate, bending, forming, automatic welding, drilling holes, we get poles checked before galvanized, hot dip galvanized and powder coating and finally we get poles checked according to client's requirements.

Traffice Signal Frame Structure street sign posts , Above 95% Penetration rate road sign pole 1



Test
To ensure the quality, we have Microcomputer Automatic Carbon Sulfur Silicon Analyzer to check the raw material after purchasing the steel sheet.



Then we have Physical Performance Test, Mechanical Test, Galvanization Thickness Test, Load Test and Lad Test during and after the manufacturing process. All the effort is to meet our clients' requirements.

Traffice Signal Frame Structure street sign posts , Above 95% Penetration rate road sign pole 2



Factory

Jiangsu Baojuhe Science and Technology Co.,Ltd. (previous name Jiangsu Bosheng Steel Poles Co.,Ltd.) is located in Heqiao Town Industrial Zone, Yixing District, Wuxi City, Jiangsu Province, China.

Baojuhe is the specialized manufacturer of various steel poles and steel components including street lighting poles, electric power poles, traffic signal poles, flag poles, wind power poles and microwave communication towers, etc.

Through Shanghai Port, which is one of the largest ports in China, we export poles to South America, Middle East, Africa, Australia, Philippines and other countries.





Delivery

We normally use 40HQ containers and our Port limit weight for one 40HQ is 26 tons.



FAQ:
1. Port of Loading: Shanghai, China
2. Price term: EXW,FOB,CFR AND CIF.
3. Payment Term: 30%TT in deposit, 70%TT before shipment. Or LC.
4. Delivery: Based on your order quantity. Normally 15 days after receiving your deposit.
