High-Strength Anti-Corrosion Coated Traffic Steel Pole for Road Sign & Light Installation
Product Details:
| Place of Origin: | China |
| Brand Name: | Hongxin |
| Certification: | ISO 9001 |
| Model Number: | HX-ts2 |
| Document: | Company Profile-HX.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 tons |
|---|---|
| Price: | 800 USD |
| Packaging Details: | Bare delivery, Sack Wrap or Fabrics |
| Delivery Time: | Within 15 working days |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 1000 tons per month |
|
Detail Information |
|||
| Height: | 3m-12m | Shape: | Round/ Polygonal |
|---|---|---|---|
| Material: | Q355/Q235 | Thick: | 2.5mm-30.0mm |
| Surface: | Hot Dip Galvanized | Galvanizing Thick: | Min Average Over 86 Microns |
| Applied: | Traffic Light | Warranty: | 5 Years |
Product Description

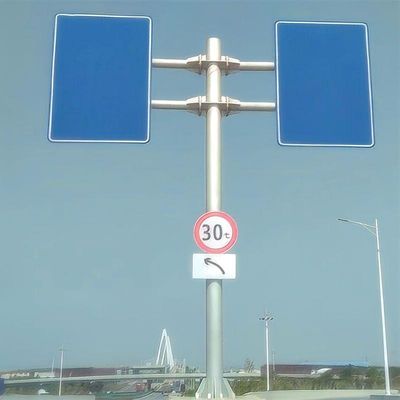

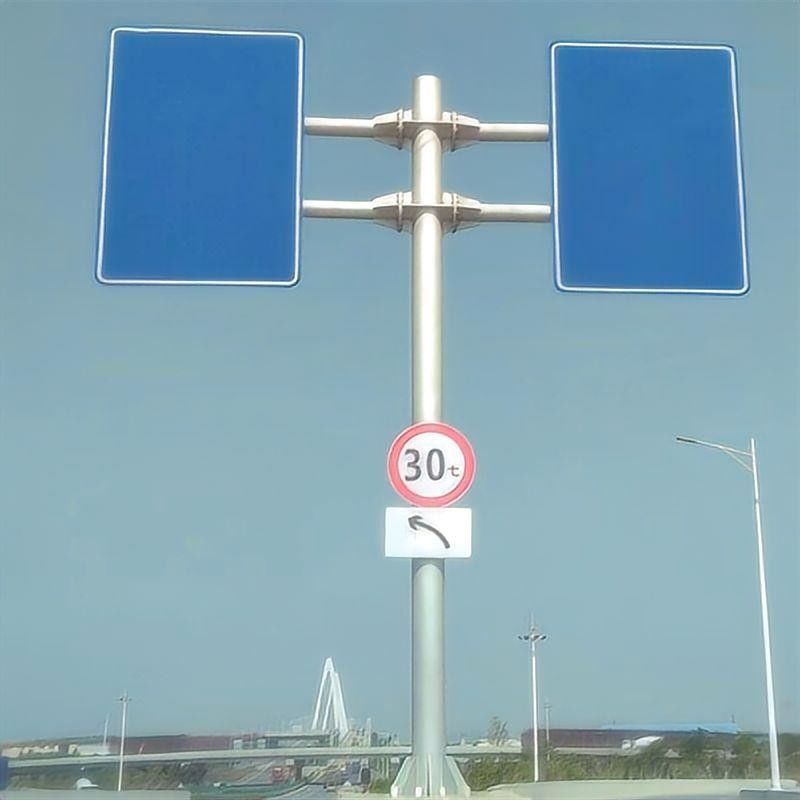

High-Strength Anti-Corrosion Coated Traffic Steel Pole for Road Sign & Light Installation
A hot-dip galvanized traffic steel pole offers superior corrosion resistance via zinc coating, ideal for outdoor traffic infrastructure. Manufactured from high-strength steel, it withstands harsh weather and heavy loads, suitable for road signs, lights, and CCTV mounts. The galvanization process ensures a durable, low-maintenance finish, extending service life in urban, highway, and coastal environments. CE-certified options meet international standards, with custom sizes (3-12m) and base plate designs for easy installation.
Direct China Steel Pole Factory: Yixing Hongxin Illumination Facilites Co.,Ltd.
Over 25 Years History! 30 Million RMB Registered Capital! 15000 Square Meters!
Advanced Machines! Experienced Engineers! Skilled Workers!
Specialized in Manufacturing Hot Dip Galvanizing Steel Poles!
Production Capacity Over 1000 Tons Per Month!
Material
Raw material of general-purpose steel GB/T1591-2008, Q255, Q355, Q420, Q460 used in China.
|
China-GB |
America-ASTM |
Equivalent |
|
Q255 |
Grade D |
SS400,S235JO |
|
Q355 |
Grade50[345] |
S355JR |
|
Q420 |
Grade60[415] |
S420NL |
|
Q460 |
Grade65[450] |
S460NL |

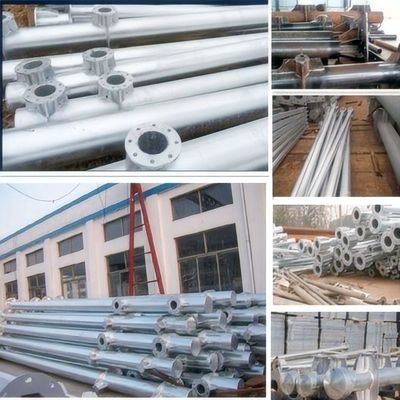

Manufacturing Process
Our factory owns advanced production lines and machines including two bending calibration machines, hydraulic plate shearing machine, cutting machine, slitting machine, two gas welding machines, hydraulic straightener, etc. All insure us to produce steel poles with best quality.
Finshed Products
|
Height |
3m to 12m |
|
Application |
Road ,Street, Highway, etc |
|
Shape |
Conical , polygonal , Round |
|
Lamp Power |
20 W- 400 W (HPS/MH) |
|
Arm |
Single or Double |
|
Lighting Fixture |
IP 65 |
|
Working Atmosphere of Lighting Fixture |
-35℃~+45℃ |
|
Surface Treatment |
Hot dip galvanized with ASTM A 123, color as request. |
|
Safety |
Against earthquake of 8 grade |
|
Wind Speed |
150 Km/Hour |
|
Min Yield Strength |
355 mpa |
|
Min Ultimate Tensile Strength |
490 mpa |
|
Max ultimate tensile strength |
620 mpa |
|
Standard |
ISO 9001 |
|
Thickness |
2.5 mm to 30 mm |
Inspection
To ensure the quality, we have professional engineers to inspect the poles during the manufacturing and before delivery.
We have Lab Test, Workload Test, Steel thickness Test, Galvanization thickness Test, etc.
Delivery
We normally use 40HQ containers and our Port limit weight for a 40HQ is 26 tons.
FAQ
