110KV Polygonal Pole Single Circuit Dodecagonal Transmission Steel Poles
Product Details:
| Place of Origin: | China |
| Brand Name: | Hongxin |
| Certification: | ISO 9001 |
| Model Number: | HX-110 |
| Document: | Company Profile-HX.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 ton |
|---|---|
| Price: | 600 USD |
| Packaging Details: | Bare, Sack wrap, Fabric wrap |
| Delivery Time: | within 15 working days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 1000 tons per month |
|
Detail Information |
|||
| Product: | Transmission Steel Pole | Type: | Suspension Pole/ Strain Pole/ Angle Pole/ Dead-end Pole |
|---|---|---|---|
| Material: | Q345/ Q420/ Q460 | Thick: | 3mm-30mm |
| Surface: | Hot Dip Galvanized | Applied: | 110KV |
| Yield Strength: | Min 345Mpa | Welding: | AWS D1.1 |
| Warranty: | 5 Years | ||
| Highlight: | 110KV Polygonal Pole,Polygonal Pole Single Circuit,Dodecagonal Transmission Steel Poles |
||
Product Description

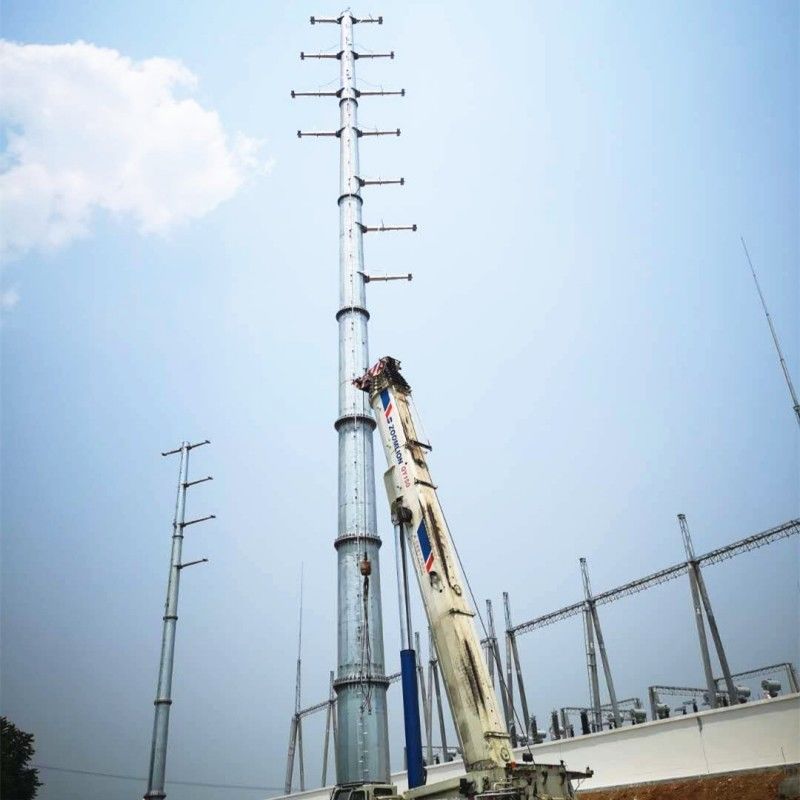

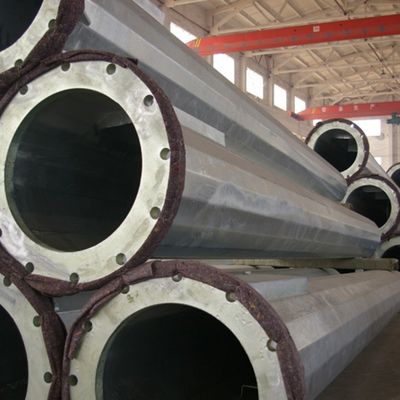

110KV Single Circuit Dodecagonal Hot Dip Galvanized Transmission Steel Poles
Specifications:
Application: 110KV Transmission Line
Loop: Single Circuit
Type: Suspension Pole/ Strain Pole/ Angle Pole/ Dead-end Pole
Shape: Polygonal/ Dodecagonal
Material: ASTM A572
Material
Applied to the material of general-purpose steel GB/T1591-2008, Q235, Q345, Q420, Q460 used in China.
| CHINA-GB | AMERICA-ASTM | EQUIVALENT |
| Q235 | Grade D | SS400, S235JO |
| Q345 | Grade50 | S355JR |
| Q420 | Grade60 | S420NL |
| Q460 | Grade65 | S460NL |
Terms and Conditions
1. Price Term: EXW, FOB, CFR or CIF.
Ø EXW: Poles Cost
Ø FOB : Pole Cost + Land Transportation + Fee on Port
Ø CFR : Pole Cost + Land Transportation + Fee on Port + Sea Freight
Ø C I F : Pole Cost + Land Transportation + Fee on Port + Sea Freight + Insurance.
2. MOQ: One 40FT Container.
3. Payment Term: Typically 30% by T/T as a deposit, balance by T/T or L/C at sight before shipment. Other payment way can be negotiated.
4. Delivery Time: 30 working days after PI/drawing/ prepayment confirmed.
5. Package: Normally wrapped by plastic bags or burlap cloth at the top and bottom, or according to clients’ requirement.
