Q420 10FT 12FT Steel Cross Arm Galvanized Pole Cross Arm
Product Details:
| Place of Origin: | China |
| Brand Name: | Hongxin |
| Certification: | ISO 9001 |
| Model Number: | HX-812 |
| Document: | Company Profile-HX.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 tons |
|---|---|
| Price: | 800 USD |
| Packaging Details: | Bare delivery, Sack Wrap or Fabrics |
| Delivery Time: | Within 15 working days |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 1000 tons per month |
|
Detail Information |
|||
| Height: | 8FT 10FT 12FT | Shape: | Rectangular |
|---|---|---|---|
| Material: | Q355/Q235 | Thick: | 2.75mm/ 3.0mm |
| Surface: | Hot Dip Galvanized | Galvanizing Thick: | Min Average Over 86 Microns |
| Applied: | Transmission Power Line | Warranty: | 5 Years |
| Highlight: | Q420 10FT Steel Cross Arm,12FT Steel Cross Arm,Q420 pole cross arm |
||
Product Description
8FT 10FT 12FT Galvanized Rectangular Steel Cross Arm
Specifications:
8FT Crossarm Size: 80*100*2438mm
10FT Crossarm Size: 80*100*3048mm
12FT Crossarm Size: 80*100*3658mm
Material
Raw material of general-purpose steel GB/T1591-2008, Q255, Q355, Q420, Q460 used in China.
|
China-GB |
America-ASTM |
Equivalent |
|
Q255 |
Grade D |
SS400,S235JO |
|
Q355 |
Grade50[345] |
S355JR |
|
Q420 |
Grade60[415] |
S420NL |
|
Q460 |
Grade65[450] |
S460NL |
Manufacturing Process

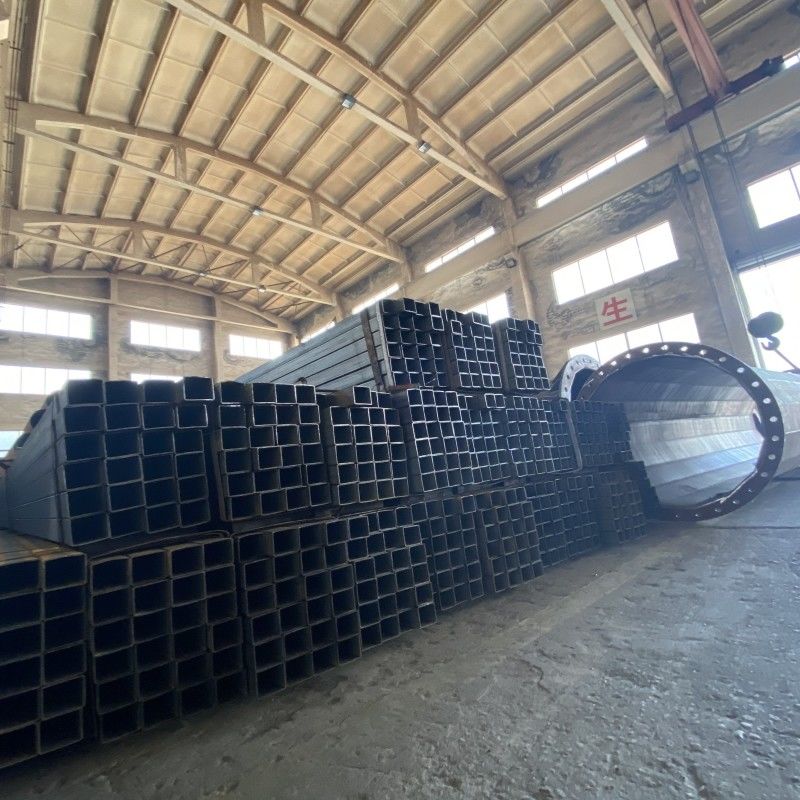

Our factory owns advanced production lines and machines including two bending calibration machines, hydraulic plate shearing machine, cutting machine, slitting machine, two gas welding machines, hydraulic straightener, etc. All insure us to produce steel poles with best quality.
Finshed Products
All the steel crossarms are hot dip galvanized and well packed before delivery.
Besides the Nea standard poles, our factory also produces 50FT-120FT Transmission poles, Steel Lighting Poles, Traffic Signal Poles, Substation Structures, Steel Crossarm, Steel Towers and other steel components.
Inspection
To ensure the quality, we have professional engineers to inspect the poles during the manufacturing and before delivery.
We have Lab Test, Workload Test, Steel thickness Test, Galvanization thickness Test, etc.
Delivery

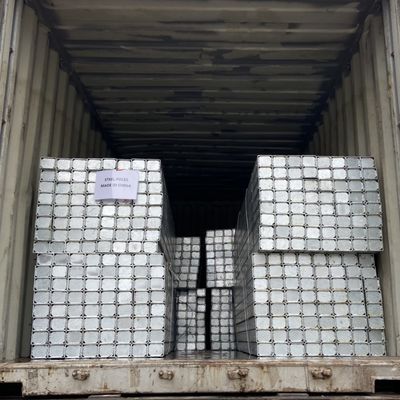

We normally use 40HQ containers and our Port limit weight for a 40HQ is 26 tons.
