| Material: | Steel Q235 | Surface Trement: | Hot Dip Galvanized. |
|---|---|---|---|
| Zinc Coating: | ≥ 100 Microns | Tolerance: | +-2% |
| Shape: | Polygonal | Accessories: | Base Plate, Anchor Bolts, Climbing Rungs |
| Install: | Use Anchor Bolt | Life Time: | 50 Years |
| High Light: | Q235 Galvanized Steel Pole,Polygonal Galvanized Steel Pole,Galvanized Steel Pole 100 microns |
||

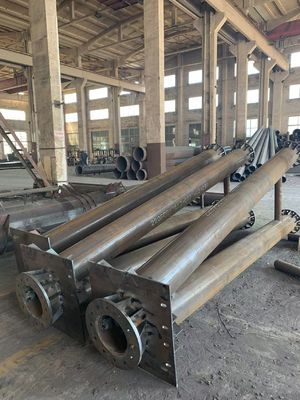

Electric Transmission Line Steel Tower Pole Tubular Power Pole in Polygonal
Specification
| Type | Flange Type |
| Shape of pole | Polygonal |
| Material | Q460 with min yield strength 460Mpa |
| Thickness | above 5.0mm |
| Welding |
Welding complies with CSA and AWS D1.1 standard The welders have got corresponding certificate after testing and inspection. |
| Galvanizing | Hot dip galvanization in accordance with Chinese standard GB/T 13912-2002 or American standard ASTM A123. |
| Fcbrication process | Cutting plate, bending, forming, automatic welding, drilling holes, quality check before galvanized, hot dip galvanized, final quality check according to clients' requirement. |
Characters and advantages
Material
Applied to the material of general-purpose steel GB/T1591-2008, Q235, Q345, Q420, Q460 used in China.
| CHINA-GB | AMERICA-ASTM | EQUIVALENT |
| Q235 | Grand D | SS400, S235JO |
| Q345 | Grand50 | SS355JR |
| Q420 | Grand60 | S420NL |
| Q460 | Grand65 | S460NL |
Production Process
Packaging and delivery
Because of there is nearly no any accessories on the poles shaft, so most of the clients agree with delivery the 25ft -40ft steel poles without package which is can save the space of the container, and also can save the purchasing cost.
Of course ,if our clients have request or standard for the package of the steel poles, we are also glad to packing the steel poles according to client's request.
| Packaging | |
| Packaging Details |
1.No packaging, just bare poles to be delivered directly. This is the most economic way. 2.Sack wrap. 3.Non -woven fabtics wrap. Also can following by clients' requirements |
| Delivery | |
| Time | It depends on your quantity. Normally within 30 working days. |
|
Delivery Details |
1.We normally use 40ft container and our port limit weight for 40ft container is 26 Tons. 2.If poles are with flange or in order to avoid scratch on poles during delivery, we will use 40ft open top container, which is a bit more costive than the 40ft container. |
Company profie
Jiangsu Baojuhe Science and Technology Co.,Ltd. (the previous name is Jiangsu Bosheng Steel Poles Co.,Ltd. founded in 2013), is located in Heqiao Town Industrial Zone, Yixing District, Wuxi City, Jiangsu Province. Bosheng is the specialized manufacturer of various steel poles including street lighting poles, electric power poles, traffic signal poles, flag poles, wind power poles and microwave communication towers, etc.
Testing plant
When the raw material arrives at the warehouse, the quality department must take testing to make sure the raw material have meet all the standard that the needed before production. Before galvanization, we will check the pole quality during the fabrication process from cutting raw plate, bending/forming, automatic welding to drilling holes, Then after hot dip galvanization, we will check th diameters, aglvanization thickness and do th load test according to clients' different requirements and then deliver the poles on time based on the contract.
Terms and Conditions
1. Price Term: EXW, FOB, CFR or CIF.
Ø EXW: Poles Cost
Ø FOB : Pole Cost + Land Transportation + Fee on Port
Ø CFR : Pole Cost + Land Transportation + Fee on Port + Sea Freight
Ø C I F : Pole Cost + Land Transportation + Fee on Port + Sea Freight + Insurance.
2. MOQ: One 40FT Container.
3. Payment Term: Typically 30% by T/T as a deposit, balance by T/T or L/C at sight before shipment. Other
payment way can be negotiated.
