| Material: | Steel Q345 | Surface Trement: | Galvanized > 86 Microns |
|---|---|---|---|
| Galvanized: | ASTM A123 | Shape: | Octagonal |
| Thick: | 3.0mm | Height: | 11900mm |
| Diameters: | 127-317mm | ||
| High Light: | 40ft hot dip galvanized octagonal pole,40ft galvanized octagonal pole,q345 hot dip galvanized octagonal pole |
||

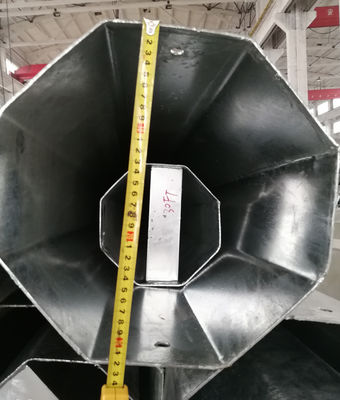

40FT 11900mm 3mm Thick Octagonal Galvanized Electric Steel Poles
Description:
Steel Pole of National Electrification Administration
(PHILIPPINES)
Specification for Distribution Steel Pole 25FT, 30FT, 35FT, 40FT,45FT.
|
Height (ft) |
Thickness (mm) |
Butt Diameter (mm) |
Top Diameter (mm) |
Design Load (kg) |
Yield Stress (MPA) |
Zinc Coating (microns) |
| 25 | 2.5 | 152 | 120 | 300 | 345 | 86 |
| 30 | 3.0 | 226 | 127 | 500 | 345 | 86 |
| 35 | 3.0 | 248 | 127 | 500 | 345 | 86 |
| 40 | 3.0 | 317 | 127 | 500 | 345 | 86 |
| 45 | 4.0 | 328 | 127 | 750 | 345 | 86 |
Material
Applied to the material of general-purpose steel GB/T1591-2008, Q235, Q345, Q420, Q460 used in China.
| China-GB | America-ASTM | Equivalent |
| Q235 | Grade D | SS400,S235JO |
| Q345 | Grade50[345] | S355JR |
| Q420 | Grade60[415] | S420NL |
| Q460 | Grade65[450] | S460NL |
Load Test
We have professional teams to check the poles during manufacturing process and before delivery. Most importantly, we have special plant to do the load test for poles with various heights.
Delivery
* We have different packing to meet your requirement.
1. No packing, just bare poles to be delivered directly. This is the most economic way.
2. Sack wrap.
3. Non-woven fabrics wrap.
* We normally use 40ft container and our Port limit weight for 40ft container is 26Tons.
* If poles are with flange or in order to avoid scratch on poles during delivery, we will use 40ft open top container, which is a bit more costive than the 40ft container.
Factory Profile
Jiangsu Baojuhe Science and Technology Co.,Ltd. ( previous name Jiangsu Bosheng Steel Poles Co.,Ltd) is located in Heqiao Town Industrial Zone, Yixing District, Wuxi City, Jiangsu Province, China.
Baojuhe is the specialized manufacturer of various steel poles and steel components including street lighting poles, electric power poles, traffic signal poles, flag poles, wind power poles and microwave communication towers, etc.
Through Shanghai Port, which is one of the largest ports in China, we export poles to South America, Middle East, Africa, Australia, Philippines and other countries.
