Jiangsu Baojuhe Science and Technology Co., Ltd.
(previous name Jiangsu Bosheng Steel Poles Co.,Ltd)
Sales & Support:
|
Product Details:
Payment & Shipping Terms:
|

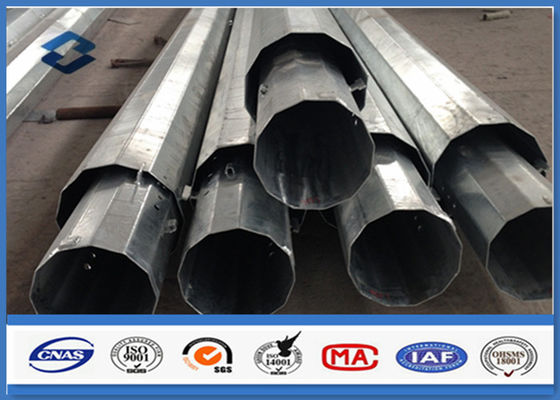

| Product Name: | Power Transmission Pole | Size: | 50FT / 15240MM |
|---|---|---|---|
| Material: | Steel Q345 | Section: | 2 |
| Surface Trement: | Hot Dip Galvanized | Galvanized: | ASTM A 123 |
| Shape: | Dodecagonal | Zinc Coating: | ≥ 86 Microns |
| High Light: | 50ft steel transmission pole,50ft power transmission pole,burial type power transmission pole |
||
| Type | 50FT / 15240MM |
|---|---|
| Shape of pole | Dodecagonal |
| Material |
Applied to the material of general-purpose steel GB/T1591-2008, Q345 ,Q460 used in China. Q345 equivalent to S355JR,Grade 50 Q460 equivalent to S460, Grade 65 |
| Wall thickness | 4.0MM / 4.5MM / 4.75MM / 5.0MM/ 6.0MM |
| Welding | Welding complies with AWS D1.1 standard. |
| Jointing | Slip Joint 600mm |
| Install | Burial Type |
| Galvanizing | Hot dip galvanized accordance with ASTM A123, min 86μm. |
| Design Load | 1280kgs |
| Certificates | ISO9001:2008 ; SGS ; AAA credit rating, etc |
| Warranty | 20 years |
Production Line
During the fabrication process as cutting plate, bending/forming, automatic welding, drill holes, we will check the quality before galvanization, and after the poles are galvanized , we will straighten the poles, check the pole surface and holes and all the specifications according the production drawings. Then we will deliver the poles according to the contract.
Steel Pole Test
Baojuhe factory has professional inspection team to test the poles before delivery. We can do the raw material thickness test, galvanization thickness test, load test and lab test according to clients' requirements.
FAQ
1. Are you a manufacturer or a trading company?
A:We are the direct factory manufacturer and the trading company.
2. Where is your company located?
A:Our factory is located in Industrial Zone No.37, Heqiao Town, Yixing District, Wuxi City, Jiangsu Province, China(mainland).
3. What are your main products?
A:Our main products are electric poles, street lighting poles, high mast pole, telecommunication tower poles, traffic signal poles, wind generation poles, etc.
4. What's your nearest port?
A: Shanghai Port is our nearest port.
5. What's your payment term?
A: Normally 30% deposit and rest by TT before shipping. Or L/C.
6. What's your delivery time?
A: Normally within 30 working days.
7. Price Term: EXW, FOB, CFR or CIF.
EXW: Poles Cost
FOB : Pole Cost + Land Transportation + Fee on Port
CFR : Pole Cost + Land Transportation + Fee on Port + Sea Freight
C I F : Pole Cost + Land Transportation + Fee on Port + Sea Freight + Insurance.
Company Introduce
Jiangsu Baojuhe Science and Technology Co.,Ltd. ( previous name Jiangsu Bosheng Steel Poles Co., Ltd.) is located in Heqiao Town Industrial Zone, Yixing District, Wuxi City, Jiangsu Province, China.
Baojuhe is the specialized manufacturer of various steel poles and steel components including street lighting poles, electric power poles, traffic signal poles, flag poles, wind power poles and microwave communication towers, etc.
Through Shanghai Port, which is one of the largest ports in China, we export poles to South America, Middle East, Africa, Australia, Philippines and other countries.Our company's products have been exported to the Philippines, Malaysia, Australia, America, Africa, Latin America, Panama, Suriname, Costa Rica, Colombia, Jordan, Nigeria, etc. We have good export experience and with 1 container export to World per day on average.
