Bituminous Painting Utility Power Pole / Hot Dip Galvanized Steel Telegraph Poles

China Bituminous Painting Utility Power Pole / Hot Dip Galvanized Steel Telegraph Poles supplier
Bituminous Painting Utility Power Pole / Hot Dip Galvanized Steel Telegraph Poles supplier

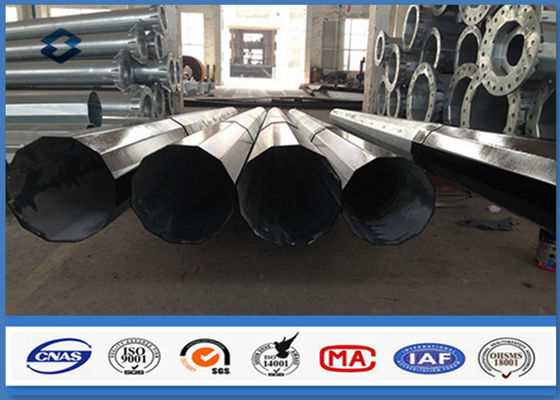

Large Image :  Bituminous Painting Utility Power Pole / Hot Dip Galvanized Steel Telegraph Poles

Product Details:

Place of Origin: China
Brand Name: BOSHENG
Certification: ISO9001:2008
Model Number: BS/PT - 21

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: Use sack to pack the poles or as customers' requests.
Delivery Time: 15 - 25 work days
Payment Terms: D/P, L/C, T/T, Western Union
Supply Ability: 2500 Ton per month
Contact Now
Detailed Product Description
Shape: Polygonal Material: Steel Q345 Q420 Q460
Type: Burial Type Zinc Coating: ≥ 86 μm
Coating: Hot Dip Galvanized Warrantly: 25 Years
Painting: Bituminous Painting Design Load: 1020kgs
High Light:

steel transmission poles

,

utility power pole

Galvanized Transmission Line Steel Pole in Bituminous Painting


Specification



Type Straight Pole, Tensile Pole, urn Pole
Applicant Electrical Transmission Line and Distribution
Shape Round, Multi-pyramidal, polygonal or conical
Material

Applied to the material of general-purpose steel GB/T1591-2008, Q235, Q345 used in China.
Q235 equipment to SS400. Min Yield Stress 235 Mpa.
Q345 equivalent to S355JR. Gr 50. Min Yield Stress 345 Mpa.
Others material steel Q420, Q460 provided according to customers' request.

Tolerance of dimension +- 2%
Power 69KV
Safety Factor Safety factor for conducting wine : 8
Safety factor for grounding wine : 8
Design Load in Kg 1020 Kg applied to 2ft from the top pole
Marks Nane plate through rivert or glue, engrave, emboss as per customer
requirement
Surface treatment Hot dip galvanized in accordance with ASTM A 123.
Joint of Poles Insert mode,innerflange mode, face to face joint mode .
Design of pole Against earthquake of 8 grade
Wind Speed 160 Km/Hour . 30 m /s
Minimum yield strength 355 mpa
Minimum ultimate tensile strength 470 mpa
Max ultimate tensile strength 630 mpa
Standard ISO 9001 : 2008
Welding Welding complies with AWS D1.1 standard.
Thickness  6.0mm
Production Process Raw material test → Cutting →Molding or bending →Welding
(longitudinal )→Dimension verify →Flange welding →Hole drilling
→Calibration→ Deburr →Galvanization or powder coating, painting
→Recalibration →Thread →Packages



Description

1. Philippines 25FT ~ 45FT Distribution pole are standard according to NEA National Bid. But for transmission line power pole, we can also supply the poles based on customer's request. And different specification poles with different prices. On the other side, the price is according to each pole weight. The weighter the expensive. So to save the cost, our factory has the professional technical team to design the practical poles and save the cost for our clients.

But to design the practical poles for customers use, normally we need customers to provide us some parameter, like as the followings :

- Pole top design load
- Where is the position of the load, the distance from the top
- The wind Speed
- How will the wire distribute
- Pole type with Burial Type or Base Plate type
- The connections mode, use slip joint or flange
- and others can be furthermore discussed when needed.



Bituminous Painting Utility Power Pole / Hot Dip Galvanized Steel Telegraph Poles



Accessories:

1. Pole
2. Base Plate
3. Pole Top Cap
4. Butt Bearing Plate
5. Holes
6. CrossArm
7. Grounding Nut & Bolts
8. Anchor Bolts
9. Climbing Rungs
10. Identification Plate
11. Bituminous Painting if needed
12. Hot dip galvanized.



Company Introduce


Our staff supply excellent after service, track and get the product information after our client got the products. We asked our client to fill a “Survey form for Satisfaction degree from Client”. We will solve the problems from clients in 24 hours, and we improve the quality and working method according to clients' good suggestions.
Through the efforts of the company staff, the support and cooperation from all over the world. The company's products have been exported to the Philippines, Malaysia, Australia, America, Africa, Latin America, Panama, Suriname, Costa Rica, Colombia, Jordan, Nigeria, etc. We have good export experience and with 1 container export to World per day on average.



Bituminous Painting Utility Power Pole / Hot Dip Galvanized Steel Telegraph Poles

Production Process

  • Raw material test
  • Cutting
  • Bending
  • Welding (longitudinal )
  • Dimension verify
  • Flange welding
  • Hole drilling
  • Calibration
  • Deburr
  • Galvanization or powder coating or Bituminous painting
  • Recalibration
  • Packages



Our Services

1. Reply your inquiry in 24 working hours.

2. Experienced staffs answer all your questions in fluent English.

3. Customized design is available. UEM & UBM are welcomed.

4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.

5. Special discount and protection of sales are provided to our distributor.

6. Professional factory: We are the manufacturer, specializing in producing all kinds of steel poles
for more than 10 years, competitive with good quantity.

7 Sample: We can send out samples for testing in one week if the order quantity is big enough.

But the shipment charges are usually paid by your side, the charges will be rebounded when we have formal order.

8. As an honest seller, we always use superior raw material, advanced machines,
skilled technicians to ensure our products to be finished in high quality and stable feature.


 Bituminous Painting Utility Power Pole / Hot Dip Galvanized Steel Telegraph Poles


FAQ

1. What is the MOQ order for your Pole?
For the distribution of steel poles, MOQ is one container. For the transmission, pole is 1 pcs.

2. Can I use LCL container Loading?
Sure. We can load on LCL.

3. Can you supply sample poles?
Of course, we can delivery the sample poles for customers to test.

4. Can I get a lower price if I make the large order?
Of course! Cheaper prices with a large order.

5. What is the payment term?
30% as deposit in advance and 70% before delivery. Or LC at sight. Or D/P.
Or we can discuss with others payment term.
