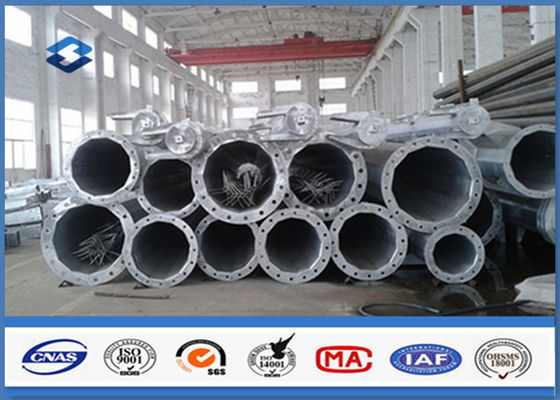

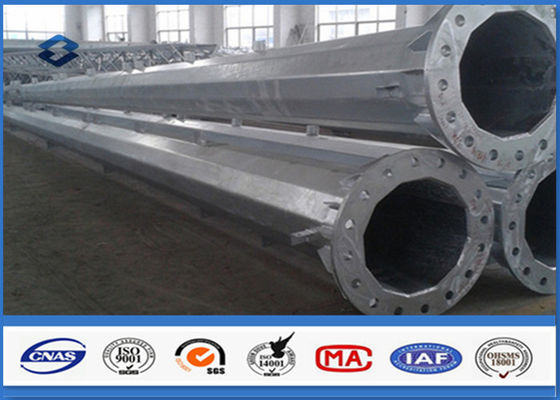

HDG Electrical Tubular Steel Pole High strength low alloy structural steels

HDG Electrical Tubular Steel Pole High strength low alloy structural steels
HDG Electrical Tubular Steel Pole High strength low alloy structural steels HDG Electrical Tubular Steel Pole High strength low alloy structural steels HDG Electrical Tubular Steel Pole High strength low alloy structural steels HDG Electrical Tubular Steel Pole High strength low alloy structural steels HDG Electrical Tubular Steel Pole High strength low alloy structural steels

Large Image :  HDG Electrical Tubular Steel Pole High strength low alloy structural steels

Product Details:
Place of Origin: China
Brand Name: BOSHENG
Certification: ISO9001:2008
Model Number: BS/ST - 13
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiation
Packaging Details: Pack the poles with sack or straw or wood or steel strap, etc
Delivery Time: 15 working days after received the downpayment
Payment Terms: T/T OR LC
Supply Ability: 2000Ton per month
Detailed Product Description
Surface Trement: Hot Dip Galvanized. Zinc Coating: ≥ 86 Microns
Standard: ASTM A123 Material: Steel
Tolerance: +-2% Shape: Round
Product Name: Steel Tubular Pole Warrantly: 20 Years
Highlight:

tubular steel pole

,

steel power pole


Hot dip Galvanized Column Tubular Steel Pole for Transmission Line


Specification



SteelYield Strength(MPa)standardStandard TitleMetallic elementContent
main ingredient Q345345 for Thickness<=16

GB/T 1591-2008
(ASTM A572/A572M-15 ,EN10025 S355N)

High strength low alloy structural steelsC≤0.20
Mn≤1.70
Si≤0.50
Accessories Q235235

GB/T 700-2006
(ASTM A283 Gr.B ,EN10025 S235JR)

Carbon structural steels
P≤0.035
S≤0.035




WeldingStandardStandard Title

Pole shafts&multi-sided tubular
Cross arms&all accessories

AWS D1.1/D1.1M:2010Structural Welding Code-Steel
Welding wireAWS D1.1/D1.1M:2010Structural Welding Code-Steel




Hot dip galvanizingStandardSteel thickness/mmMean coating thickness/μmMetallic elementContent
Pole shafts, cross arms&bolted on accessoriesASTM A123/A123M-15 AS/NZS 4680>685Mn0.25%-0.40%
<3-670
1.5-355Cu<0.15%
<1.555
Bolts,nuts&washers

GB/T 5267.3-2008
(ISO 10684-2004)

_____≥ 54P<0.025%
Foundation BoltsASTM A153/A153M-09_____≥ 54S<0.03%



Description

The HDG Electrical Steel Tubular Pole was designed as customer's request. For Distribution and Transmission Line use. And with Base Plate use Anchor Bolts to Install. Sections with 2 and use flange to connect each segment. The hot dip galvanized in accordance with ASTM 123 and the zinc coating at least 86 microns.

But to design the practical poles for customers use, normally we need customers to provide us some parameter, like as the followings :

- Pole top design load
- Where is the position of the load, the distance from the top
- The wind Speed
- How will the wire distribute
- Pole type with Burial Type or Base Plate type
- The connections mode, use slip joint or flange
- and others can be furthermore discussed when needed.


Through the efforts of the company staff, the support and cooperation from all over the world. The company's products have been exported to the Philippines, Malaysia, Australia, America, Africa, Latin America, Panama, Suriname, Costa Rica, Colombia, Jordan, Nigeria, etc. We have good export experience and with 1 container export to World per day on average.


HDG Electrical Tubular Steel Pole High strength low alloy structural steels 0

Parameter



1. Steel materials conform to ASTM A36 with Q345 (S355JR), Q460, etc
2. Welding: Welding complies with CSA and AWS, AWS D1.1 standard. The welders have got corresponding
    certificate after testing and inspection.

3. Finish: Hot-dip galvanized in accordance with ASTM A123.

4. Pole Height: >5M

5. Pole Shape: Conical / Round

6. Type: Straight Pole ,Tensile Pole ,Turn Pole (Double-loop corner pole, Single or double loops/circuit pole,
    single or double tensile/terminal/straight pole, etc)
7. Resistant: Against earthquake of 8.8 grade. Wind speed as design.
8. Quality Standard: ISO9001:2008, AAA credit rating, etc
9. Easy install and maintenance
10. Voltage:10-550KV



HDG Electrical Tubular Steel Pole High strength low alloy structural steels 1


Material Test:
1. All of our materials are purchased from famous mill factory to assure the quality.
2. A mill certificate issued by the mill factory with stamp and signature must be provided before unloading the material in our factory;
3. Before putting into production, all the material must pass the chemical and physical analysis to make sure that they have met the requested strength and component.

Production Process


  • Raw material test
  • Cutting
  • Bending
  • Welding (longitudinal )
  • Dimension verify
  • Flange welding
  • Hole drilling
  • Calibration
  • Deburr
  • Galvanization or powder coating or Bituminous painting
  • Recalibration
  • Packages


Best Service: -- Jiangsu Bosheng Steel Poles Co., Ltd, which always been providing
our clients with great quality products and superior Customer service.

Quick Lead Time.--We inform the client the exact delivery time when they place the order and work Hard to
ensure that all of your deadlines are met.

Unbeatable Prices-- Raw Material Cost + Produce Cost 1200 RMB/Ton
Unbeatable Quality -- We always supply good quality also leading products to all of our customers.
Brand Awareness -- We achieve a good reputation among our clients and develop long term business.
Special Offers. -- We quote first and then you compare, finally choose us!
Special support.-- we have a policy term to support our customers for products also payment.





Our Certifications

HDG Electrical Tubular Steel Pole High strength low alloy structural steels 2
 HDG Electrical Tubular Steel Pole High strength low alloy structural steels 3HDG Electrical Tubular Steel Pole High strength low alloy structural steels 4HDG Electrical Tubular Steel Pole High strength low alloy structural steels 5



Terms and Conditions
1. Price Term: EXW, FOB, CFR or CIF.

Ø EXW: Poles Cost
Ø FOB : Pole Cost + Land Transportation + Fee on Port
Ø CFR : Pole Cost + Land Transportation + Fee on Port + Sea Freight
Ø C I F : Pole Cost + Land Transportation + Fee on Port + Sea Freight + Insurance.

2. MOQ: One 40FT Container.
3. Payment Term: Typically 30% by T/T as a deposit, balance by T/T or L/C at sight before shipment. Other
    payment way can be negotiated.
4. Delivery Time: 15 working days per container after PI/drawing/ prepayment confirmed.
5. Package: Normally wrapped by plastic bags or burlap cloth at the top and bottom, or according to clients’
    requirement.

 HDG Electrical Tubular Steel Pole High strength low alloy structural steels 6
After - Sales Service

Our staff supply excellent after service, track and get the product information after our client got the products. We asked our client to fill a “Survey form for Satisfaction degree from Client”. We will solve the problems from clients in 24 hours, and we improve the quality and working method according to client’s good suggestions.
