Jiangsu Baojuhe Science and Technology Co., Ltd.
(previous name Jiangsu Bosheng Steel Poles Co.,Ltd)
Sales & Support:
|
Product Details:
Payment & Shipping Terms:
|
| Surface Treatment: | Hot Dip Galvanized | Thickness: | 3mm Or Above |
|---|---|---|---|
| Galvanization: | 86um | Material: | Steel Sheet |
| Arm: | 60mm | Silicon: | Less Than 2% |
| Shape: | Conical Or Polygonal | ||
| High Light: | electrical street light pole,metal light pole |
||

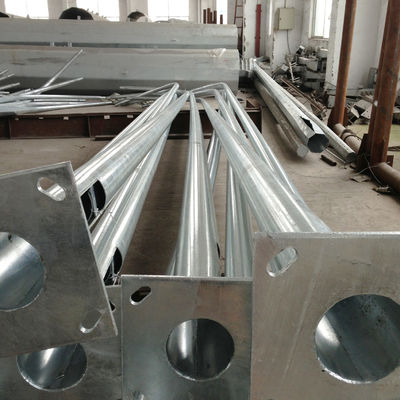

Galvanized Double Arm Q235 Customized Street Lighting Steel Column Pole
Description:
1.Material: hot rolled coil from Q235
2.Deal: Hot dip galvanized Following ASTM A 123 or any other standard by client required.
3.Packing: Plastic bubble, Mat &Straw Bale or following client required
4.Length: within 12 meters once forming( single section)
5.Thickness: from 1mm to 22mm
6.Shape: Conical, polygonal(6-side,8side,12-side,16side) round tapered.
7.Easy install and maintenance.
| Place of Origin: | Jiangsu, China (Mainland) |
| Brand name: | JSBS |
| Color: | As Request |
| Certificate: | ISO9001:2008 |
| Surface Treatment: | Hot Dip Galvanized |
| Service life: | 25 years |
| Material: | Steel |
| Spare Parts: | Parts for connection or installation |
| Height: | 5-12m |
| Packaging details: | Standard seaworthy package(wooden boxes,cotton, steel strip, and other packages or as buyers' requirement |
| Product Catalogue | Street Light Steel Pole |
| Yield strength of Material | Minimum yield strength>=235n/mm2 for Q235, S235, and SS400 |
| Minimum yield strength>=345n/mm2 for Q345 S355 and Gr 50 | |
| Pole’s height: | 5-12m |
| Length of one part | Within 12m once forming without slip joint |
| Wall thickness | 3mm or as required |
| Pole's Shape Available |
Round, Conical |
| Arm type can be made: | Double Arm |
| Arm Diameter: | Diameter as 42mm, 48mm, 60mm, 76mm and etc, can fit any diameter’s lamps. |
| Welding |
Advanced submerged arc welding and CNC welding equipment. It has passed flaw testing, internal and external double welding makes the welding beautiful in shape. |
| Manufacture Capacity | 200 pcs /day |
| Wall Thickness Tolerance |
+- 0.1mm from 2.3mm to 4mm. +- 0.2mm from 5mm to 20mm. +- 0.5mm from 22mm to 30mm |
| Painting color | ( RAL ) Color card or customized |
| Surface treatment 1 | Hot Dip Galvanized |
| Surface treatment 2 | Hot dip galvanizing with power coating |
| Temperature range | -35 °C~+45 °C |
| Wind Speed: | Against wind pressure of 160Km/h, according to client’s design. |
| Base plate mounted | Base plate is square, octagonal or round in shape with slotted holes for anchor bolt and dimension as per customer’s requirement. |
| Ground mounted: | The length buried underground as per customer’s requirement. |
| Quality Control | According to ISO9001-2008 requirements. |
| Other | Less land occupation & easy maintenance. |
Inspection
We buy the raw materials from famous mill factory here in China. We'll check the elements of the raw material like silicon, carbon, sulfur etc. in our lab test room. If they are unqualified, we'll return them. In this way, we can control the quality from the first beginning.
To ensure the quality, we have professional technicists to inspect the poles during the manufacturing and before delivery. We have Lab Test, Workload Test, Steel thickness Test, Galvanization thickness Test, etc.
FAQ:
1. Port of Loading: Shanghai, China
2. Price term: EXW,FOB,CFR AND CIF.
3. Payment Term: 30%TT in deposit, 70%TT before shipment. Or LC.
4. Delivery: Based on your order quantity. Normally 15 days after receiving your deposit.
