9m 30ft Hot Dip Galvanized and Bitumen Painted 69kv Electric Steel Pole

9m 30ft Hot Dip Galvanized and Bitumen Painted 69kv Electric Steel Pole
9m 30ft Hot Dip Galvanized and Bitumen Painted 69kv Electric Steel Pole 9m 30ft Hot Dip Galvanized and Bitumen Painted 69kv Electric Steel Pole 9m 30ft Hot Dip Galvanized and Bitumen Painted 69kv Electric Steel Pole 9m 30ft Hot Dip Galvanized and Bitumen Painted 69kv Electric Steel Pole 9m 30ft Hot Dip Galvanized and Bitumen Painted 69kv Electric Steel Pole 9m 30ft Hot Dip Galvanized and Bitumen Painted 69kv Electric Steel Pole

Large Image :  9m 30ft Hot Dip Galvanized and Bitumen Painted 69kv Electric Steel Pole

Product Details:
Place of Origin: Jiangsu, China (mainland)
Brand Name: JSBS
Certification: ISO9001:2008
Model Number: Q345
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 30-300 per piece
Packaging Details: plastic or as request
Delivery Time: within 15 working days
Payment Terms: T/T, L/C
Supply Ability: 200 pieces per day
Detailed Product Description
Application: Electricity Transmission Material: Q345
Height: 9m Surface: Hot Dip Galvanized
Voltage: 69kv Welding: Once Forming, One Section
Thickness: 3mm
High Light:

galvanised steel pole

,

galvanized steel post

9m 30ft Hot Dip Galvanized and Bitumen Painted 69kv Electric Steel Pole

Description:



Height: 9m

Top diameter: 127mm

Butt diameter: 226mm

Thickness: 3mm

Surface: Galvanized and bitumen painted



Steel Yield Strength(MPa) standard Standard Title Metallic element Content
Main ingredient Q345 345 for Thickness<=16

GB/T 1591-2008

(ASTM A572/A572M-15 ,EN10025 S355N)

High strength low alloy structural steels C ≤0.20
Mn ≤1.70
Si ≤0.50
Accessories Q235 235

GB/T 700-2006

(ASTM A283 Gr.B ,EN10025 S235JR)

Carbon structural steels
P ≤0.035
S ≤0.035



Electric steel poles have been a new kind of equipment for erecting power lines in recent years. They are replacing the traditional concrete electric poles step by step. Because their advantages are outstanding.



1. They need less occupied area. Nowadays, land price is getting more and more expensive with more and more pupulaton. While steel poles only take 1/3 area of the self supporting towers. This makes steel poles the first option of power transmission. They take less occupation expenditure.



2. Pole parts are not easy to be stolen. For the traditional concrete poles, pole parts like anchor bolts are easy to be stolen, which is one of the biggest problems for the safe operation of the power transmission. But steel poles are whole planted or flange connected, which prevents the parts being stolen.



3. It's easy to produce, assemble and construct. This advantage increases efficiency and shorten the time limit for the project.



4. Compared with traditional concrete poles, steel poles are Small and exquisite. This meets the requirement of urban landscape in most cities.



Our low voltage electric steel poles have been mainly exported to Philippines, South America, South Africa since 2005.



Our Service:

1. Reply your inquiry in 24 working hours.


2. Experienced staffs answer all your questions in fluent English.

3. We provice OBM and ODM service.

4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.

5. Special discount and protection of sales are provided to our distributors.

6. Professional factory: We are the direct manufacturer, specialized in producing all kinds of steel poles since 2005 with competitive price and good quality.


FAQ:

1. Are you a manufacturer or a trading company?

A:We are the direct factory manufacturer and the trading company.



2. Where is your company located?

A:Our factory is located in Industrial Zone No.37, Heqiao Town, Yixing District, Wuxi City, Jiangsu Province, China(mainland).



3. What are your main products?

A:Our main products are electric poles, street lighting poles, high mast pole, telecommunication tower poles, traffic signal poles, wind generation poles, etc.



4. What's your nearest port?

A: Shanghai Port.



5. What's your payment term?

A: Normally 30% deposit and rest by TT before shipping. Or L/C.



6. What's your delivery time?

A: Normally within 15 working days. If our factory is busy and your quantity is large, then around one month.



7. What's your price term?

A: Price Term: EXW, FOB, CFR or CIF.



EXW: Poles Cost

FOB: Pole Cost + Land Transportation + Fee on Port

CFR: Pole Cost + Land Transportation + Fee on Port + Sea Freight

CIF: Pole Cost + Land Transportation + Fee on Port + Sea Freight + Insurance.



9m 30ft Hot Dip Galvanized and Bitumen Painted 69kv Electric Steel Pole 0

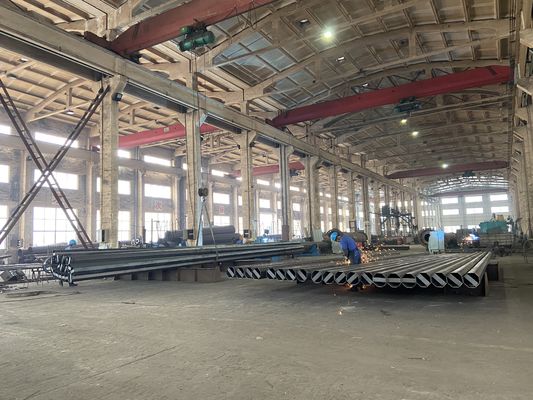

Factory Profile


Jiangsu Baojuhe Science and Technology Co.,Ltd. (previous name Jiangsu Bosheng Steel Poles Co.,Ltd.) is located in Heqiao Town Industrial Zone, Yixing District, Wuxi City, Jiangsu Province, China.

Baojuhe is the specialized manufacturer of various steel poles and steel components including street lighting poles, electric power poles, traffic signal poles, flag poles, wind power poles and microwave communication towers, etc.

Through Shanghai Port, which is one of the largest ports in China, we export poles to South America, Middle East, Africa, Australia, Philippines and other countries.
