| Surface: | Hot Dip Galvanized | Application: | Electricity Transmission |
|---|---|---|---|
| Welding: | Penetration Above 95% | Silicon: | Less Than 2% |
| Service Life: | Over 25 Years | Packing: | As Request |
| Voltage: | 10kv-550kv | ||
| High Light: | galvanized steel post,galvanized metal pipe |
||

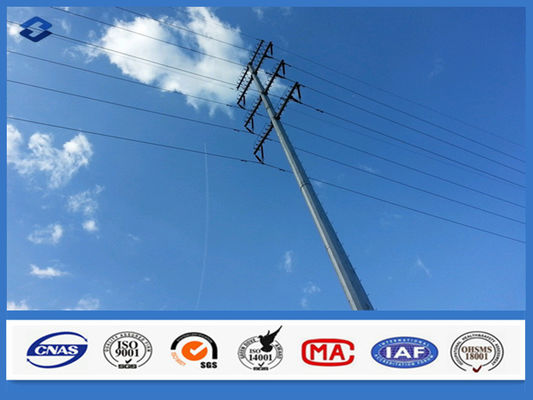

Hot Dip Galvanized Suspension Straight Electric Steel Pole with Flange
Description:
Type: Straight Pole; Tensile Pole; Turn Pole
Double-loop corner pole, Single or double loops pole, single or double tensile/terminal/straight pole
10KV;35KV;69KV;110KV;220KV,etc
Material: Steel Q235; Q345; Q420; Q460
Thickness: ≥2.5mm
Finishing: Hot-Dip Galvanized.
We buy the raw material from famous mill factory here in China. We'll check the elements of the raw material like silicon, carbon, sulfur etc. in our lab test room. If they are unqualified, we'll return them. In this way, we can control the quality from the first beginning.
Our factory offers ODM and OBM service. Of course, it'll be better if you have the drawing and detailed specifications of the steel poles. So we can immediately calculate the weight and give you the exact quotation.
To ensure the quality, we have professional technicists to inspect the poles during the manufacturing and before delivery. We have Lab Test, Workload Test, Steel thickness Test, Galvanization thickness Test, etc.
| Type | Straight Pole ,Tensile Pole ,Turn Pole |
| Suit for | Electricity Network |
| Shape | polygonal |
| Material | Steel |
| Torlance of dimenstion | +- 2% |
| Power | 10 KV ~550 KV |
| Safety Factor | Safety factor for conducting wine : 8 |
| Design Load in Kg | 300~ 1000 Kg appliced to 50cm from the top pole |
| Marks | Name plate through rivert or glue ,engrave ,emboss as per customer requirement |
| Surface treatment |
Hot dip galvanized with ASTM A 123, color as client required. |
| Joint of Poles |
Insert mode,innerflange mode,face to face joint mode |
| Design of pole | Against earthquake of 8 grade |
| Wind Speed | 160 Km/Hour . 30 m /s |
| Minimum yield strength | 355 mpa |
| Minimum ultimate tensile strength | 490 mpa |
| Max ultimate tensile strength | 620 mpa |
| Standard | ISO 9001 |
| Length of per section | Within 14m once forming without slip joint |
| Welding | Welding Standard :AWS ( American Welding Society ) D 1.1 |
| Thickness | 2.5 mm to 30 mm |
Delivery
Our nearest port is Shanghai Port. We normally use 40HQ containers and our Port limit weight for a 40HQ is 26 tons.
FAQ:
1. Port of Loading: Shanghai, China
2. Price term: EXW,FOB,CFR AND CIF.
3. Payment Term: 30%TT in deposit, 70%TT before shipment. Or LC.
4. Delivery: Based on your order quantity. Normally 15 days after receiving your deposit.
