| Material: | Q345 Steel Sheet | Height: | 35ft |
|---|---|---|---|
| Surface: | Hot Dip Galvanized | Voltage: | 69kv |
| Welding: | Once Forming, One Section | Peneration: | Above 95% |
| Application: | Electricity Transmission | ||
| High Light: | galvanised steel pole,galvanized metal pipe |
||

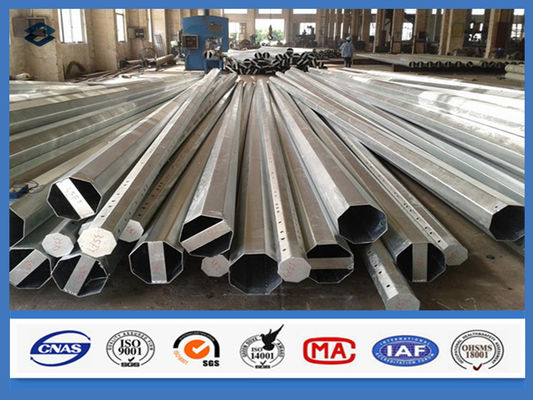

Q345 Material 35FT Galvanized 69KV Electric Power Distrubution Steel Pole
Description:
| Pole's height | 25ft,30ft,35ft,40ft or customized |
| Type | Steel Pole |
| Shape of pole | Tubular Concial Octagonal Dedocagonal Polygonal |
| Material | Steel |
| Wall thickness | 3.0mm or above |
| Once forming | yes |
| Welding | Welding complies with CSA and AWS, AWS D1.1 standard. The welders have got corresponding certificate after testing and inspection. |
| Galvanizing | Hot dip galvanization in accordance with Chinese standard GB/T 13912-2002 or American standard ASTM A123. |
| Voltage | 69kv |
Material
Applied to the material of general-purpose steel GB/T1591-2008, Q235, Q345, Q420, Q460 used in China.
| China-GB | America-ASTM | Equivalent |
| Q235 | Grade D | SS400,S235JO |
| Q345 | Grade50[345] | S355JR |
| Q420 | Grade60[415] | S420NL |
| Q460 | Grade65[450] | S460NL |
Our low voltage electric steel poles have been mainly exported to Philippines, Malaysia, South America, South Africa since 2005.
Manufacturing, Test & Delivery
Our factory owns advanced production lines and machines including bending calibration machine, hydraulic plate shears machine, shears machine, slitting machine, 208T hydraulic straightener, etc. All insure us to produce steel poles with best quality.
After the fabrication process as cutting plate, bending, forming, automatic welding, drilling holes, we get poles checked before galvanized, hot dip galvanized and powder coating and finally we get poles checked according to client's requirements.
To ensure the quality, we have professional technicians to check the pole during the manufacturing and before delivery.
We use sack to pack the poles at the pole top and bottom, which is our normal package. We also use wood between the poles but it costs just a bit more than normal package. We normally use 40HQ containers and our Port limit weight for a 40HQ is 26 tons.
Factory Profile
Jiangsu Baojuhe Science and Technology Co.,Ltd is located in Heqiao Town Industrial Zone, Yixing District, Wuxi City, Jiangsu Province, China.
Baojuhe is the specialized manufacturer of various steel poles and steel components including street lighting poles, electric power poles, traffic signal poles, flag poles, wind power poles and microwave communication towers, etc.
Through Shanghai Port, which is one of the largest ports in China, we export poles to South America, Middle East, Africa, Australia, Philippines and other countries.
