|Surface Treatment:||Hot Dip Galvanized & Powder Coated||Thickness:||3mm Or Above|
|Material:||Steel Sheet||Welding:||Once Forming|
street lighting columns,
metal light pole
Q235 Material 8M High Single Arm Galvanzied Steel Lighting Pole
|Material:||Q235 = ASTM A36, SS400|
|Yield strength of Material||Minimum yield strength>=235n/mm2 for Q235, S235 and SS400|
|Minimum yield strength>=345n/mm2 for Q345 S355 and Gr 50|
|Length of one part||Within 12m once forming without slip joint|
|Wall thickness||3mm or as request|
|Pole's Shape Available||
Round, Polygonal, Taper Octagonal, Taper round, Round conical,
Taper Square, Square.
|Arm type can be made:||Single arm, Double arm, Tri-arm, Four-arm|
|Arm Diameter:||Diameter as 42mm, 48mm, 60mm, 76mm and etc, can fit to any diameter’s lamps.|
Advanced submerged arc welding and CNC welidng equipment.
It has passed flaw testing, internal and external double welding makes the welding beautiful in shape.
|Manufacture Capacity||200 pcs /day|
|Wall thickness Tolerance||
+- 0.1mm from 2.3mm to 4mm. +- 0.2mm from 5mm to 20mm.
+- 0.5mm from 22mm to 30mm
|Painting color||( RAL ) Color card or customized|
|Surface treatment 1||Hot dip Galvanized|
|Surface treatment 2||Hot dip galvanizing with power coating|
|Temperature range||-35 °C~+45 °C|
|Wind Speed:||Against wind pressure of 160Km/h, according to client’s design.|
|Base plate mounted||Base plate is square, octagonal or round in shape with slotted holes for anchor bolt and dimension as per customer’s requirement.|
|Ground mounted:||The length buried underground as per customer’s requirement.|
|Quality Control||According to ISO9001-2008 requirements.|
|Other||Less land occupation & easy maintenance.|
|Hot dip galvanizing||Standard||Steel thickness/mm||Mean coating thickness/μm||Metallic element||Content|
|Pole shafts,cross arms&bolted on accessories||ASTM A123/A123M-15 AS/NZS 4680||>6||85||
|Foundation bolts||ASTM A153/A153M-09||_____||≥ 54||
To ensure the quality, we have professional technicists to inspect the poles during the manufacturing and before delivery.
We have Lab Test, Workload Test, Steel thickness Test, Galvanization thickness Test, etc.

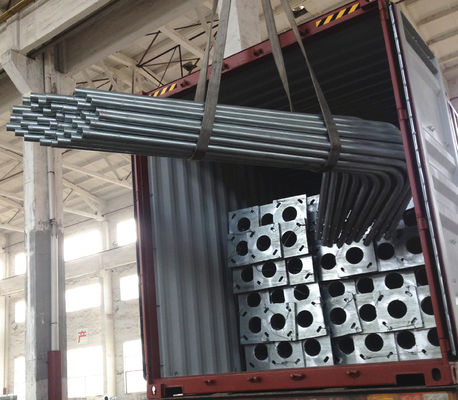

We normally use 40HQ containers and our Port limit weight for a 40HQ is 26 tons.
1. Port of Loading: Shanghai, China
2. Price term: EXW,FOB,CFR AND CIF.
3. Payment Term: 30%TT in deposit, 70%TT before shipment. Or LC.
4. Delivery: Based on your order quantity. Normally 15 days after receiving your deposit.
