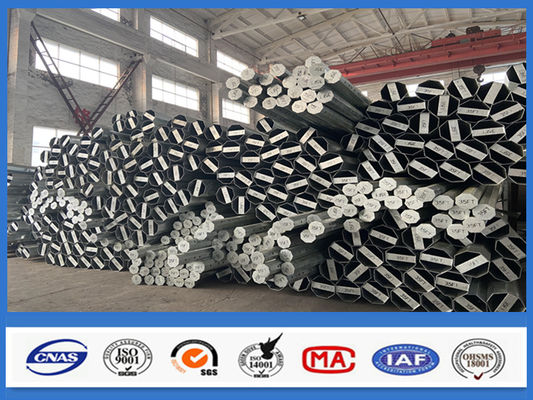

500KGS Design Load galvanized steel pipe with Bituminous Painting 30 m /s Wind Speed

500KGS Design Load galvanized steel pipe with Bituminous Painting 30 m /s Wind Speed
500KGS Design Load galvanized steel pipe with Bituminous Painting 30 m /s Wind Speed 500KGS Design Load galvanized steel pipe with Bituminous Painting 30 m /s Wind Speed

Large Image :  500KGS Design Load galvanized steel pipe with Bituminous Painting 30 m /s Wind Speed

Product Details:
Place of Origin: China
Brand Name: JSBS
Certification: ISO9001:2008
Model Number: BS/GS - 17
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: Use sack package the poles or as customer’s request.
Delivery Time: 15 ~ 25 work day
Payment Terms: L/C, T/T, Western Union, D/P
Supply Ability: 2500 Ton per month
Detailed Product Description
Type: Burial Shape: Octagonal / Conical
Material: Steel Q345 Design Load: 500 KGS
Pole Thick: 4.0mm Painting: Bituminous Painting
Finishing: Hot Dip Gakvanized Tolerance: +-2%
High Light:

galvanised steel pole

,

galvanized metal pipe


500KGS Design Load Low Voltage Hot Dip Galvanized Electric Metal Steel Pole with Bituminous Painting

Specification


TypeBurial
ApplicantElectrical Distribution n Power Line
ShapeOctagonal
Material

Applied to the material of general-purpose steel GB/T1591-2008, Q235, Q345 used in China.
Q235 equipment to SS400. Min Yield Stress 235 Mpa.
Q345 equivalent to S355JR. Gr 50. Min Yield Stress 345 Mpa.

Tolerance of dimension+- 2%
Power10 KV ~550 KV
Safety FactorSafety factor for conducting wine : 8
Safety factor for grounding wine : 8
Design Load in Kg300~ 1000 Kg applied to 50cm from the top pole
Surface treatmentHot dip galvanized in accordance with ASTM A 123.
SectionOne
Design of poleAgainst earthquake of 8 grade
Wind Speed160 Km/Hour . 30 m /s
Minimum yield strength355 mpa
Minimum ultimate tensile strength470 mpa
Max ultimate tensile strength630 mpa
StandardISO 9001 : 2008
PaintingBituminous Painting
WeldingWelding complies with AWS D1.1 standard.
Thickness3.0mm, 3.5mm, 4.0mm
Production ProcessRaw material test → Cutting →Molding or bending →Welding
(longitudinal )→Dimension verify →Flange welding →Hole drilling
→Calibration→ Deburr →Galvanization or powder coating ,painting
→Recalibration →Thread →Packages
Advantage
  • Short Construction Cycle
  • Less Land Occupation
  • Low Overall Cost
  • Easy Installation and Maintenance
  • Weather Resistance
  • Anti-corrosion
  • ODM & OEM are available
  • Capable to Handle Volume Orders
  • Provide Professional Design by Our Experienced R&D Engineers



Description


Through the efforts of the company staff, the support and cooperation from all over the world. The company's products have been exported to Philippines, Malaysia, Australia, America, Africa, Latin America, Panama, Suriname, Costa Rica, Colombia, Jordan, Nigeria, etc. We have good export experience and with 1 container export to World in average every day.





Others Standard poles  25FT, 30FT, 35FT, 40FT,45FT


Height
(ft)

Thickness
(mm)

Butt Diameter
(mm)

Tip Diameter
(mm)

Design Load
(kg)

Yield Stress
(MPA)

Zinc Coating
(microns)

252.515212030034586
303.022612750034586
353.024812750034586
403.031712750034586
453.032812750034586




500KGS Design Load galvanized steel pipe with Bituminous Painting 30 m /s Wind Speed 0

Material Test:
1. All of our material are purchased from famous mill factory to assure the quality.
2. A mill certificate issued by the mill factory with stamp and signature must be provided before
    unload the material in our factory;
3. Before put into production, all the material must pass the chemical and physical analysis to
    make sure that they have met the requested strength and component.


Production Process

  • Raw material test
  • Cutting
  • Bending
  • Welding (longitudinal )
  • Dimension verify
  • Flange welding
  • Hole drilling
  • Calibration
  • Deburr
  • Galvanization or powder coating or Bituminous painting
  • Recalibration
  • Packages



500KGS Design Load galvanized steel pipe with Bituminous Painting 30 m /s Wind Speed 1


500KGS Design Load galvanized steel pipe with Bituminous Painting 30 m /s Wind Speed 2


Terms and Conditions
1. Price Term: EXW, FOB, CFR or CIF.


Ø EXW: Poles Cost

Ø FOB : Pole Cost + Land Transportation + Fee on Port

Ø CFR : Pole Cost + Land Transportation + Fee on Port + Sea Freight

Ø C I F : Pole Cost + Land Transportation + Fee on Port + Sea Freight + Insurance.



2. MOQ: One 40FT Container.


3. Payment Term: Typically 30% by T/T as deposit, balance by T/T or L/C at sight before shipment. Other payment way can be negotiated.


4. Delivery Time: 15 working days per container after PI / drawing / prepayment confirmed.


5. Package: Normally wrapped by plastic bags or burlap cloth at the top and bottom,or according to clients’ requirement.
