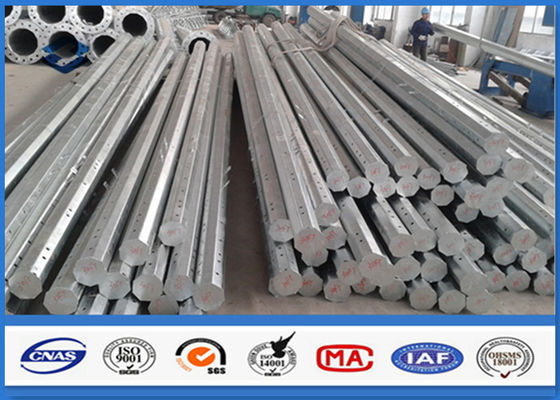

NEA ASTM A 123 Galvanized Steel Pole 2 Safety Factor Against earthquake of 8 grade

NEA ASTM A 123 Galvanized Steel Pole 2 Safety Factor Against earthquake of 8 grade
NEA ASTM A 123 Galvanized Steel Pole 2 Safety Factor Against earthquake of 8 grade NEA ASTM A 123 Galvanized Steel Pole 2 Safety Factor Against earthquake of 8 grade NEA ASTM A 123 Galvanized Steel Pole 2 Safety Factor Against earthquake of 8 grade NEA ASTM A 123 Galvanized Steel Pole 2 Safety Factor Against earthquake of 8 grade NEA ASTM A 123 Galvanized Steel Pole 2 Safety Factor Against earthquake of 8 grade

Large Image :  NEA ASTM A 123 Galvanized Steel Pole 2 Safety Factor Against earthquake of 8 grade

Product Details:
Place of Origin: China
Brand Name: JSBS
Certification: ISO9001:2008
Model Number: BS/GS - 13
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: Use sack package the poles or as customer’s request.
Delivery Time: 15 ~ 25 work day
Payment Terms: L/C, T/T, Western Union, D/P
Supply Ability: 2500 Ton per month
Detailed Product Description
Product Name: Galvanized Steel Pole Type: NEA Pole
Material: Steel Q345 Voltage: 69KV
Surface Trement: Hot Dip Galvanized. Design Load: 500KGS From Top 2FT
Shape: Octagonal Zinc Coating: ≥ 86 Microns
High Light:

galvanized steel post

,

galvanized metal pipe



Philippines NEA Galvanized Octagonal Steel Pole for 69KV Distribution Use





Specification



Height

(ft)

Thickness

(mm)

Butt Diameter

(mm)

Tip Diameter

(mm)

Design Load

(kg)

Yield Stress

(MPA)

Zinc Coating

(microns)

25 2.5 152 120 300 345 86
30 3.0 226 127 500 345 86
35 3.0 248 127 500 345 86
40 3.0 317 127 500 345 86
45 4.0 328 127 750 345 86





Description





1. Philippines 25FT ~ 45FT Distribution pole are standard according to NEA National Bid. But besides above,  we can also supply the poles based on customer's request. And different specification poles with different price. On the other side, the price is according to each pole weight. The weighter the expensive. So to save the cost, our factory has the professional technical team to design the practical poles and save the cost for our clients.



But to design the practical poles for customers use, normally we need customer to provide us some parameter, like as following :



-  Pole top design load

-  Where is the position of the load , the distance from the top

- The wind Speed

-  How will the wire distribute

-  Pole type with Burial Type or Base Plate type

-  The connections mode , use slip joint or flange

-  and others we can further more discuss when we need.





Production Process

  • Raw material test
  • Cutting
  • Bending
  • Welding (longitudinal )
  • Dimension verify
  • Flange welding
  • Hole drilling
  • Calibration
  • Deburr
  • Galvanization or powder coating or Bituminous painting
  • Recalibration
  • Packages

NEA ASTM A 123 Galvanized Steel Pole 2 Safety Factor Against earthquake of 8 grade 0





Our Services



1. Reply your inquiry in 24 working hours.



2. Experienced staffs answer all your questions in fluent English.



3. Customized design is available. UEM & UBM are welcomed.



4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.



5. Special discount and protection of sales are provided to our distributor.



6. Professional factory: We are manufacturer, specializing in producing all kinds of steel poles

    for more than 10 years, competitive with good quantity.



7 Sample: We can send out sample for test in one week if the order quantity is big enough.

   But the shipment charges is usually paid by your side, the charges will be rebounded when we have formal

   order.



8. As an honest seller, we always use superior raw material, advanced machines,

    skilled technicians to ensure our products to be finished in high quality and stable feature.





NEA ASTM A 123 Galvanized Steel Pole 2 Safety Factor Against earthquake of 8 grade 1



NEA ASTM A 123 Galvanized Steel Pole 2 Safety Factor Against earthquake of 8 grade 2




Terms and Conditions

1. Price Term: EXW, FOB, CFR or CIF.


Ø EXW: Poles Cost

Ø FOB : Pole Cost + Land Transportation + Fee on Port

Ø CFR : Pole Cost + Land Transportation + Fee on Port + Sea Freight

Ø C I F : Pole Cost + Land Transportation + Fee on Port + Sea Freight + Insurance.



2. MOQ: One 40FT Container.


3. Payment Term: Typically 30% by T/T as deposit, balance by T/T or L/C at sight before shipment. Other payment way can be negotiated.


4. Delivery Time: 15 working days per container after PI / drawing / prepayment confirmed.


5. Package: Normally wrapped by plastic bags or burlap cloth at the top and bottom,or according to clients’ requirement.







Company Introduce:



Jiangsu Baojuhe Science and Technology Co.,Ltd. (the previous name is Jiangsu Bosheng Steel Poles Co.,Ltd. founded in 2013), is located in Heqiao Town Industrial Zone, Yixing District, Wuxi City, Jiangsu Province. Bosheng is the specialized manufacturer of various steel poles including street lighting poles, electric power poles, traffic signal poles, flag poles, wind power poles and microwave communication towers, etc.

NEA ASTM A 123 Galvanized Steel Pole 2 Safety Factor Against earthquake of 8 grade 3
