Transmission Line 30ft High 3mm Thickness Steel Utility Poles

Transmission Line 30ft High 3mm Thickness Steel Utility Poles
Transmission Line 30ft High 3mm Thickness Steel Utility Poles Transmission Line 30ft High 3mm Thickness Steel Utility Poles Transmission Line 30ft High 3mm Thickness Steel Utility Poles Transmission Line 30ft High 3mm Thickness Steel Utility Poles Transmission Line 30ft High 3mm Thickness Steel Utility Poles

Large Image :  Transmission Line 30ft High 3mm Thickness Steel Utility Poles

Product Details:
Place of Origin: Jiangsu,China(Mainland)
Brand Name: JSBS
Certification: ISO9001:2008
Model Number: Q345
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 30~300 per set
Packaging Details: as required
Delivery Time: within 15 work days
Payment Terms: L/C, T/T
Supply Ability: 200 set per day
Detailed Product Description
Shape: Octagonal Type: Burial Type
Material: Q345 Height: 30FT
Thickness: 3mm
High Light:

30ft high steel utility poles

,

30 ft metal utility pole

,

3mm thickness steel utility poles


We can design products as customers' demand or manufacture for you if you have pictures or drawing.
Also, if you want to consult the price, please provide the drawings so that we can tell you the price quickly and accurately.


Product Description



Steel Pole of National Electrification Administration (Philippines)
Specification for Distribution Steel Pole 25FT, 30FT, 35FT, 40FT, 45FT

Height(ft) Thickness(mm) Butt Diameter(mm) Top Diameter(mm) Design Load(kg) Yield Stress(MPA) Zinc Coating(microns)
25 2.5 152 120 300 345 86
30 3.0 226 127 500 345 86
35 3.0 248 127 500 345 86
40 3.0 317 127 500 345 86
45 4.0 328 127 750 345 86



Details

Height

30FT

Type Burial Type
Shape of pole Octagonal
Diameter 127mm / 226mm
Material Q345 equivalent to S355JR,Grade 50
Thickness 3.0mm
Design Load 500KGS
Welding Welding complies with CSA and AWS, AWS D1.1 standard.
The welders have got corresponding certificate after testing and inspection.
Standard NEA
Galvanizing Hot dip galvanization in accordance with Chinese standard GB/T 13912-2002 or American standard ASTM A123.
Voltage 15kv
Fabrication process Cutting plate, bending ,forming, automatic welding, drilling holes ,quality check before galvanized, hot dip galvanized, final quality check according to client's requirement.





Material

CHINA-GB AMERICA-ASTM EQUIVALENT
Q235 Grade D SS400, S235JO
Q345 Grade50 S355JR
Q420 Grade60 S420NL
Q460 Grade65 S460NL



Technology:

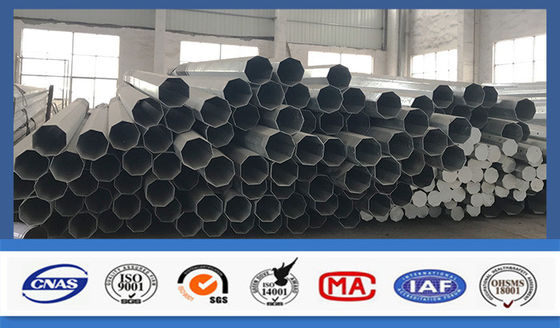

The octagonal steel electrical poles of our company are made of qualified sheets through bending, forming, automatic welding, hot dip galvanization. We own advanced production lines, including auto shearing machine,1600 ton CNC hydraulic bending machine,CNC cutting machine,auto submerged-arc welding machine,auto welding machine,hydrautic trimmer,splitting machine.



Welding:
we weld the steel poles with auto submerged-arc welding and auto welding machines with perfect seam and good quality,we strickly control the test of the welding by the flaw testing with ultrasonic crack detection to make sure there is no crack,undercut,slag inclusion,hole vent for the welding.



Hot dip galvanization:
All our products must be hot dip galvanized which can keep the steel poles without rust more than 30 years. For steel poles with 3.0mm bare metal thickness, the ASTM A123 standard requires min average coating thickness 86 microns



Packing&Delivery:
Because there is nearly no any accessories on the poles shaft,so most of the clients agree with delivery the 25ft -45ft steel poles without package which can save the space of the container,and also can save the purchasing cost.
Of couse,if our clients have request or standard for the package of the steel poles,we are also glad to pack the steel poles according to client's request.



Customer Service:
After-sale service, Solve your problems within 24 hours, Contact anytime!


Our Company



Jiangsu Baojuhe Science and Technology Co.,Ltd (the previous name Jiangsu Bosheng Steel Poles Co.,Ltd) is located in Heqiao Town Industrial Zone, Yixing District, Wuxi City, Jiangsu Province, China.


Baojuhe is the specialized manufacturer of various steel poles and steel components including street lighting poles, electric power poles, traffic signal poles, flag poles, wind power poles and microwave communication towers, etc.



Transmission Line 30ft High 3mm Thickness Steel Utility Poles 0




Our Certifications



Transmission Line 30ft High 3mm Thickness Steel Utility Poles 1

Transmission Line 30ft High 3mm Thickness Steel Utility Poles 2Transmission Line 30ft High 3mm Thickness Steel Utility Poles 3Transmission Line 30ft High 3mm Thickness Steel Utility Poles 4




FAQ



1. Are you a manufacturer or a trading company?
A:We are the direct factory manufacturer and the trading company.



2. Where is your company located?
A:Our factory is located in Industrial Zone No.37, Heqiao Town, Yixing District, Wuxi City, Jiangsu Province, China(mainland).



3. What are your main products?
A:Our main products are electric poles, street lighting poles, high mast pole, telecommunication tower poles, traffic signal poles, wind generation poles, etc.



4. What's your nearest port?
A: Shanghai Port.



5. What's your payment term?
A: Normally 30% deposit and rest by TT before shipping. Or L/C.




6. What's your delivery time?
A: Normally within 30 working days.
