30ft 40ft Octagon Shape Galvanized Pole For Electricity Transmission Line

Certification
China Jiangsu Baojuhe Science and Technology Co.,Ltd certification
China Jiangsu Baojuhe Science and Technology Co.,Ltd certification
I'm Online Chat Now

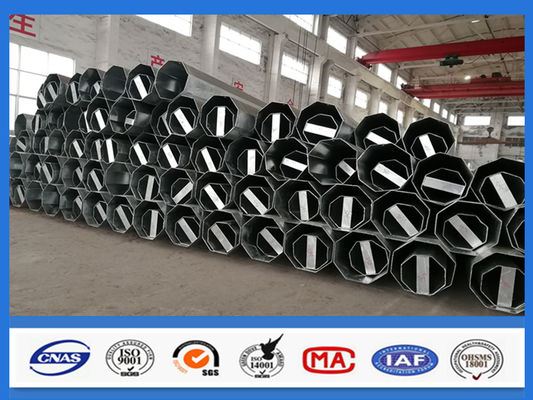

30ft 40ft Octagon Shape Galvanized Pole For Electricity Transmission Line

30ft 40ft Octagon Shape Galvanized Pole For Electricity Transmission Line
30ft 40ft Octagon Shape Galvanized Pole For Electricity Transmission Line

Large Image :  30ft 40ft Octagon Shape Galvanized Pole For Electricity Transmission Line

Product Details:
Place of Origin: China
Brand Name: JSBS
Certification: ISO9001:2008
Model Number: BS-40
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: Pack the poles with sack or straw or wood or steel strap, etc
Delivery Time: 15 - 25 working days
Payment Terms: L/C, T/T, D/P
Supply Ability: 2000 Ton per month
Detailed Product Description
Material: Steel Q345 Shape: Octagonal
Tolerance: +-2% Min Yield Stress: 345Mpa
Tensile Strength: 470 Mpa ~ 630 Mpa Finishing: Hot Dip Galvanized Over 86mm
Galvanized: ASTM A123 Welding: AWS D1.1
Length: 30FT 40FT
Highlight:

30 ft galvanized pole

,

octagon shape galvanized pole

,

electricity transmission line galvanized pole

 30FT 40FT Octagon Shape Galvanized Electric Steel Pole​ Philippines Electricity Transmission Line


Specifications:



Steel Pole of National Electrification Administration
                         PHILIPPINES)

Specification for Distribution Steel Pole 25FT, 30FT, 35FT, 40FT,45FT.


Height

(ft)

Thickness

(mm)

Butt Diameter

(mm)

Top Diameter

(mm)

Design Load

(kg)

Yield Stress

(MPA)

Zinc Coating

(microns)

25 2.5 152 120 300 345 86
30 3.0 226 127 500 345 86
35 3.0 248 127 500 345 86
40 3.0 317 127 500 345 86
45 4.0 328 127 750 345 86


30ft 40ft Octagon Shape Galvanized Pole For Electricity Transmission Line 0


Production Process

  • Raw material test
  • Cutting
  • Bending
  • Welding (longitudinal )
  • Dimension verify
  • Flange welding
  • Hole drilling
  • Calibration
  • Polishing and removing the burrs
  • Galvanization or powder coating or Bituminous painting
  • Recalibration
  • Packages
  • Delivery

30ft 40ft Octagon Shape Galvanized Pole For Electricity Transmission Line 1



Description

JSBS has passed the ISO 9001 quality management system. And we have our own Lab to do the chemical and mechanical test. For example, we test the raw material component content and the strength when we purchase the raw material. And if the material does not pass the test,we’ll not use it to produce our poles. So customers can be rest assured that we always manufacture the good quality poles. Meanwhile, our factory has the AMT ( Advanced Manufacturing Technology ), all the purposes are to provide high-quality poles to all over the world.



We will test the metal sheet thickness, galvanization Thickness and do the load test according to client's request before delivery. This ensures the quality of the steel poles we produce.
 30ft 40ft Octagon Shape Galvanized Pole For Electricity Transmission Line 2
 Our factory has built special plant for testing the load of steel poles.


Terms and Conditions
1. Price Term: EXW, FOB, CFR or CIF.

Ø EXW: Poles Cost
Ø FOB : Pole Cost + Land Transportation + Fee on Port
Ø CFR : Pole Cost + Land Transportation + Fee on Port + Sea Freight
Ø C I F : Pole Cost + Land Transportation + Fee on Port + Sea Freight + Insurance.

2. MOQ: One 40FT Container.
3. Payment Term: Typically 30% by T/T as a deposit, balance by T/T or L/C at sight before shipment. Other payment way can be negotiated.
4. Delivery Time: 30 working days after PI/drawing/ prepayment confirmed.
5. Package: Normally wrapped by plastic bags or burlap cloth at the top and bottom, or according to clients’ requirement.

Company Introduce:



Jiangsu Baojuhe Science and Technology Co.,Ltd. ( previous name Jiangsu Bosheng Steel Poles Co., Ltd.) is located in Heqiao Town Industrial Zone, Yixing District, Wuxi City, Jiangsu Province, China.

Baojuhe is the specialized manufacturer of various steel poles and steel components including street lighting poles, electric power poles, traffic signal poles, flag poles, wind power poles and microwave communication towers, etc.

Through Shanghai Port, which is one of the largest ports in China, we export poles to South America, Middle East, Africa, Australia, Philippines and other countries.Our company's products have been exported to the Philippines, Malaysia, Australia, America, Africa, Latin America, Panama, Suriname, Costa Rica, Colombia, Jordan, Nigeria, etc. We have good export experience and with 1 container export to World per day on average.
