Home ProductsGalvanized Steel Pole

Hot Dip Galvanized Tubular Flange Electric Power Transmission Steel Pole

Certification
China Jiangsu Baojuhe Science and Technology Co.,Ltd certification
China Jiangsu Baojuhe Science and Technology Co.,Ltd certification
I'm Online Chat Now

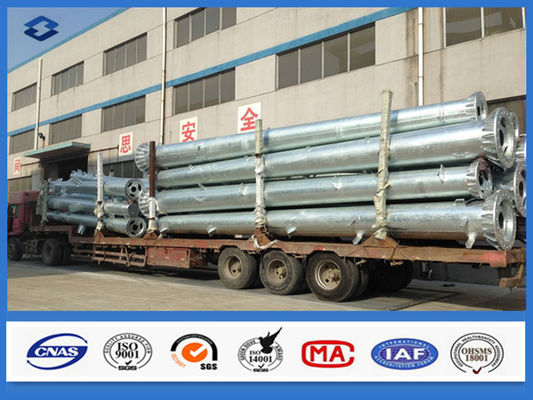

Hot Dip Galvanized Tubular Flange Electric Power Transmission Steel Pole

Hot Dip Galvanized Tubular Flange Electric Power Transmission Steel Pole
Hot Dip Galvanized Tubular Flange Electric Power Transmission Steel Pole Hot Dip Galvanized Tubular Flange Electric Power Transmission Steel Pole Hot Dip Galvanized Tubular Flange Electric Power Transmission Steel Pole Hot Dip Galvanized Tubular Flange Electric Power Transmission Steel Pole

Large Image :  Hot Dip Galvanized Tubular Flange Electric Power Transmission Steel Pole

Product Details:
Place of Origin: Jiangsu, China
Brand Name: JSBS
Certification: ISO9001:2008
Model Number: Q420
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 30-300 per set
Packaging Details: as request
Delivery Time: within 15 work days
Payment Terms: T/T, L/C
Supply Ability: 200 set per day
Detailed Product Description
Application: Electricity Transmission Welding: Penetration Above 95%
Silicon: Less Than 2% Service Life: Over 25 Years
Packing: As Request Voltage: 10kv-550kv
Surface: Galvanized
High Light:

galvanised steel pole

,

galvanized metal pipe

Hot Dip Galvanized Tubular Flange Electric Power Transmission Steel Pole 0

Hot Dip Galvanized Tubular Flange Electric Power Transmission Steel Pole



Description:



Electric steel poles have been a new kind of equipment for erecting power lines in recent years. They are replacing the traditional concrete electric poles step by step. Because their advantages are outstanding.



1. They need less occupied area. Nowadays, land price is getting more and more expensive with more and more pupulaton. While steel poles only take 1/3 area of the self supporting towers. This makes steel poles the first option of power transmission. They take less occupation expenditure.



2. Pole parts are not easy to be stolen. For the traditional concrete poles, pole parts like anchor bolts are easy to be stolen, which is one of the biggest problems for the safe operation of the power transmission. But steel poles are whole planted or flange connected, which prevents the parts being stolen.



3. It's easy to produce, assemble and construct. This advantage increases efficiency and shorten the time limit for the project.



4. Compared with traditional concrete poles, steel poles are Small and exquisite. This meets the requirement of urban landscape in most cities.



Type: Straight Pole; Tensile Pole; Turn Pole

Double-loop corner pole, Single or double loops pole, single or double tensile/terminal/straight pole

10KV;35KV;69KV;110KV;220KV,etc

Material: Steel Q235; Q345; Q420; Q460

Thickness: ≥2.5mm

Finishing: Hot-Dip Galvanized.



Manufacturing: Raw material test (silicon less than 2%) → Cutting →bending →Welding (longitudinal penetration rate over 95%)→Dimension verify →Flange welding →Hole drilling →sample assemble → surface clean→ Galvanization or powder coating ,painting →Recalibration →Packages



Hot dip galvanizing Standard Steel thickness/mm Mean coating thickness/μm Metallic element Content
Pole shafts,cross arms&bolted on accessories ASTM A123/A123M-15 AS/NZS 4680 >6 85

Mn



0.25%-0.40%



<3-6 70
1.5-3 55

Cu



<0.15%



<1.5 55
Bolts,nuts&washers

GB/T 5267.3-2008

(ISO 10684-2004)

_____ ≥ 54 P

<0.025%



Foundation bolts ASTM A153/A153M-09 _____ ≥ 54

S



<0.03%



Hot Dip Galvanized Tubular Flange Electric Power Transmission Steel Pole 1



FAQ

1. Are you a manufacturer or a trading company?

A:We are the direct factory manufacturer and the trading company.



2. Where is your company located?

A:Our factory is located in Industrial Zone No.37, Heqiao Town, Yixing District, Wuxi City, Jiangsu Province, China(mainland).



3. What are your main products?

A:Our main products are electric poles, street lighting poles, high mast pole, telecommunication tower poles, traffic signal poles, wind generation poles, etc.



4. What's your nearest port?

A: Shanghai Port is our nearest port.



5. What's your payment term?

A: Normally 30% deposit and rest by TT before shipping. Or L/C.



6. What's your delivery time?

A: Normally within 15 working days. If our factory is busy and your quantity is large, then around one month.



7. What's your price term?
A: Price Term: EXW, FOB, CFR or CIF.



EXW: Poles Cost
FOB: Pole Cost + Land Transportation + Fee on Port
CFR: Pole Cost + Land Transportation + Fee on Port + Sea Freight
CIF: Pole Cost + Land Transportation + Fee on Port + Sea Freight + Insurance.

Hot Dip Galvanized Tubular Flange Electric Power Transmission Steel Pole 2



Factory

Founded in 2005, Jiangsu Baojuhe Science and Technology Co.,Ltd. (JSBS) specializes in manufacturing various steel structures. We manufacture a variety of products like Transmission Poles and Substation Structures for the power transmission industry; high masts and street lighting poles for illumination, which are widely used in expressways, airports, ports and docks, depots, parking lots and stadiums; tower poles for funicular railways; Telcommunication poles for the telecommunication industry; Traffic Poles & Camera Poles & Sign Structures for transportation Industry and Advertising Industry.



Through Shanghai Port, which is one of the largest ports in China, we export poles to South America, Middle East, Africa, Australia, Philippines and other countries.

Hot Dip Galvanized Tubular Flange Electric Power Transmission Steel Pole 3
