69kv Dodecagonal Power Transmission Pole with Bituminous Paniting NEA Standard

Certification
China Jiangsu Baojuhe Science and Technology Co.,Ltd certification
China Jiangsu Baojuhe Science and Technology Co.,Ltd certification
I'm Online Chat Now

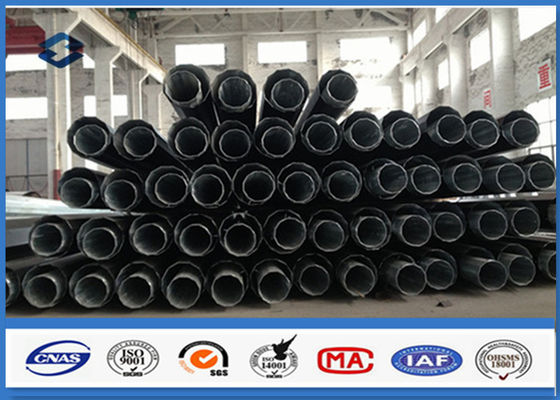

69kv Dodecagonal Power Transmission Pole with Bituminous Paniting NEA Standard

69kv Dodecagonal Power Transmission Pole with Bituminous Paniting NEA Standard
69kv Dodecagonal Power Transmission Pole with Bituminous Paniting NEA Standard 69kv Dodecagonal Power Transmission Pole with Bituminous Paniting NEA Standard 69kv Dodecagonal Power Transmission Pole with Bituminous Paniting NEA Standard 69kv Dodecagonal Power Transmission Pole with Bituminous Paniting NEA Standard

Large Image :  69kv Dodecagonal Power Transmission Pole with Bituminous Paniting NEA Standard

Product Details:
Place of Origin: China
Brand Name: JSBS
Certification: ISO9001:2008
Model Number: BS/PT - 11
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: Use sack package the poles or as customer’s request.
Delivery Time: 15 - 25 work days
Payment Terms: D/P, L/C, T/T, Western Union
Supply Ability: 2500 Ton per month
Detailed Product Description
Material: Steel Shape: Dodecagonal
Type: Burial Standard: NEA
Voltage: 69KV Zinc Coating: Min 86 Microns
Finishing: Hot Dip Galvanized Painting: Bituminous Painting Above & Below GL
High Light:

utility power pole

,

electrical utility pole

69kv Philippines Galvanized Dodecagonal Transmission Steel Power Pole with Bituminous Paniting


Specification



SteelYield Strength(MPa)standardStandard TitleMetallic elementContent
main ingredient Q345345 for Thickness<=16

GB/T 1591-2008
(ASTM A572/A572M-15 ,EN10025 S355N)

High strength low alloy structural steelsC≤0.20
Mn≤1.70
Si≤0.50
Accessories Q235235

GB/T 700-2006
(ASTM A283 Gr.B ,EN10025 S235JR)

Carbon structural steels
P≤0.035
S≤0.035




WeldingStandardStandard Title

Pole shafts&multi-sided tubular
Cross arms&all accessories

AWS D1.1/D1.1M:2010Structural Welding Code-Steel
Welding wireAWS D1.1/D1.1M:2010Structural Welding Code-Steel




Hot dip galvanizingStandardSteel thickness/mmMean coating thickness/μmMetallic elementContent
Pole shafts,cross arms&bolted on accessoriesASTM A123/A123M-15 AS/NZS 4680>685Mn0.25%-0.40%
<3-670
1.5-355Cu<0.15%
<1.555
Bolts,nuts&washers

GB/T 5267.3-2008
(ISO 10684-2004)

_____≥ 54P<0.025%
Foundation boltsASTM A153/A153M-09_____≥ 54S<0.03%





Description

Through the efforts of the company staff, the support and cooperation from all over the world. The company's products have been exported to Philippines, Malaysia, Australia, America, Africa, Latin America, Panama, Suriname, Costa Rica, Colombia, Jordan, Nigeria, etc. We have good export experience and with 1 container export to World in average every day.

1) Steel materials conform to ASTM A36 with Q235(S235,SS400),Q345(S355JR), Q460,etc

2) Welding: Welding complies with CSA and AWS, AWS D1.1 standard.

3) Finish: Hot-dip galvanized in accordance with ASTM A123. Min Zinc Coating 86 microns.

4) Pole Height: Transmission pole ≥ 15M

5) Pole shape: Conical, Round, Polygonal---Octagonal, Dodecagonal, Hexadecagonal, etc

6) Type: Straight Pole ,Tensile Pole ,Turn Pole (Double-loop corner pole, Single or double loops/circuit pole,
     single or double tensile/terminal/straight pole, etc)

7) Surface hot-dip-galvanized and sometimes with Bituminous Painting as customer's request.

8) Resistant: against earthquake of 8.8 grade. Wind speed as design.

9) Quality Standard: ISO9001:2000,AAA credit rating

10) Easy install and maintenance

11) Packages: Normally covered by sack or as customer’s requirement.


12) Voltage:10-550KV



But to design the practical poles for customers use, normally we need customer to provide us some parameter, like as following :


- Pole top design load
- Where is the position of the load , the distance from the top
- The wind Speed
- How will the wire distribute
- Pole type with Burial Type or Base Plate type
- The connections mode , use slip joint or flange
- and others we can further more discuss when we need.
 69kv Dodecagonal Power Transmission Pole with Bituminous Paniting NEA Standard 0

Accessories:

1. Pole
2. Base Plate
3. Pole Top Cap
4. Butt Bearing Plate
5. Holes
6. CrossArm
7. Grounding Nut & Bolts
8. Anchor Bolts
9. Climbing Rungs
10. Identification Plate
11. Bituminous Painting if needed
12. Hot dip galvanized.


Production Line

The fabrication process as cutting plate, bending/forming, automatic welding, drill holes, quality check before galvanized, hot dip galvanized , recalibration, inspect according to client’s required then delivery on time as Constract


69kv Dodecagonal Power Transmission Pole with Bituminous Paniting NEA Standard 1

69kv Dodecagonal Power Transmission Pole with Bituminous Paniting NEA Standard 2


69kv Dodecagonal Power Transmission Pole with Bituminous Paniting NEA Standard 3

Our Services

1. Reply your inquiry in 24 working hours.

2. Experienced staffs answer all your questions in fluent English.

3. Customized design is available. UEM & UBM are welcomed.

4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.

5. Special discount and protection of sales are provided to our distributor.

6. Professional factory : We are manufacturer, specializing in producing all kinds of steel poles
for more than 10 years, competitive with good quantity.

7 Sample: We can send out sample for test in one week if the order quantity is big enough.
But the shipment charges is usually paid by your side, the charges will be rebounded when we have formal order.

8. As an honest seller, we always use superior raw material, advanced machines,
skilled technicians to ensure our products to be finished in high quality and stable feature.



Terms and Conditions
1. Price Term: EXW, FOB, CFR or CIF.

Ø EXW: Poles Cost
Ø FOB : Pole Cost + Land Transportation + Fee on Port
Ø CFR : Pole Cost + Land Transportation + Fee on Port + Sea Freight
Ø C I F : Pole Cost + Land Transportation + Fee on Port + Sea Freight + Insurance.

2. MOQ: One 40FT Container.
3. Payment Term: Typically 30% by T/T as deposit, balance by T/T or L/C at sight before shipment. Other
    payment way can be negotiated.
4. Delivery Time: 15 working days per container after PI / drawing / prepayment confirmed.
5. Package: Normally wrapped by plastic bags or burlap cloth at the top and bottom,or according to clients’
    requirement.
 69kv Dodecagonal Power Transmission Pole with Bituminous Paniting NEA Standard 4

Company Introduce

Jiangsu Baojuhe Science and Technology Co.,Ltd. (previous name Jiangsu Bosheng Steel Poles Co.,Ltd.) is located in Heqiao Town Industrial Zone, Yixing District, Wuxi City, Jiangsu Province, China.
Baojuhe is the specialized manufacturer of various steel poles and steel components including street lighting poles, electric power poles, traffic signal poles, flag poles, wind power poles and microwave communication towers, etc.
Through Shanghai Port, which is one of the largest ports in China, we export poles to South America, Middle East, Africa, Australia, Philippines and other countries.
