Jiangsu Baojuhe Science and Technology Co., Ltd.
(previous name Jiangsu Bosheng Steel Poles Co.,Ltd)
Sales & Support:
|
Product Details:
Payment & Shipping Terms:
|
| Material: | Steel Sheet | Surface Treatment: | Hot Dip Galvanized & Powder Coated |
|---|---|---|---|
| Thickness: | 3mm Or Above | Galvanization: | 86um |
| Height: | 7600mm | Brand: | JSBS |
| Origin: | Jiangsu, China (mainland) | ||
| High Light: | road sign pole,traffic light post |
||

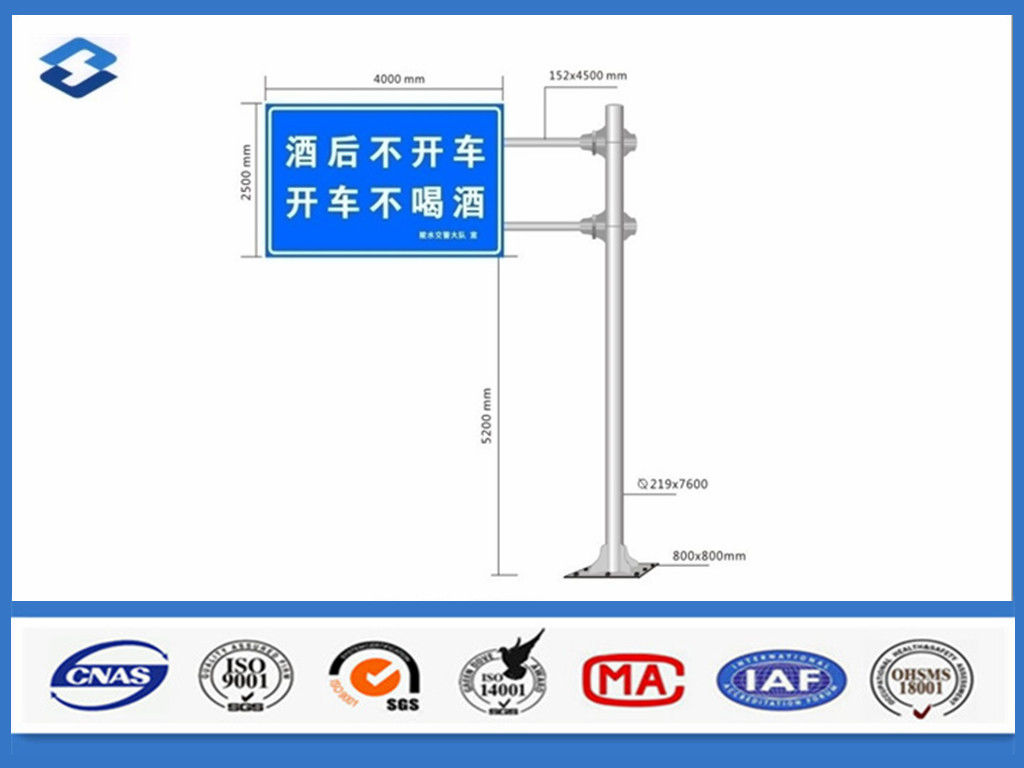

8m 7600mm ASTM A36 Galvanized Traffic Sign Steel Column Pole with Two Brackets
Description:
Material: ASTM A36 (= Q235 in China)
Height: 7600mm
Diameter: 219mm
Thickness: 3mm
Base Plate: 800*800mm
Bracket: 152*500mm
Sign billboard: 2500*4000mm
Shape: Round
Standard: ISO 9001: 2008
Application: Street / Road / Highway/ Traffic Sign, Road Slogon, Ad promotion, Billboard etc.
Surface treatment: Hot dip galvanized (powder coating)
Joint of poles: Flange connected
Manufacturing process: Raw material test → Cutting →bending →Welding (longitudinal )→Dimension verify →Flange welding →Hole drilling →sample assemble → surface clean→ Galvanization or powder coating ,painting →Recalibration →Packing
Test: Mainly galvanization thickness test
Packing: with plastic paper or according to client’s request.
Delivery: Normally use 40HQ container
Port: nearest port is Shanghai Port and the weight limit is 26 tons per conatiner.
Manufacturing
| Hot dip galvanizing | Standard | Steel thick/mm | Mean coating thick/μm | Metallic element | Content |
| Pole shafts,cross arms&bolted on accessories | ASTM A123/A123M-15 AS/NZS 4680 | >6 | 85 |
Mn |
0.25%-0.40% |
| <3-6 | 70 | ||||
| 1.5-3 | 55 |
Cu |
<0.15% |
||
| <1.5 | 55 | ||||
| Bolts,nuts&washers |
GB/T 5267.3-2008 |
_____ | ≥ 54 | P |
<0.025% |
| Foundation bolts | ASTM A153/A153M-09 | _____ | ≥ 54 |
S |
<0.03% |
Our factory owns advanced production lines and machines including bending calibration machine, hydraulic plate shearing machine, shearing machine, slitting machine, 208T hydraulic straightener, etc. All insure us to produce steel poles with best quality.
After the fabrication process as cutting plate, bending, forming, automatic welding, drilling holes, we get poles checked before galvanizing, hot dip galvanized and powder coating and finally we get poles checked according to client's requirements.
Inspection
To ensure the quality, we have Microcomputer Automatic Carbon Sulfur Silicon Analyzer to check the raw material after purchasing the steel sheet.
Then we have Physical Performance Test, Mechanical Test, Galvanization Thickness Test, Load Test and Lad Test during and after the manufacturing process. All the effort is to meet our clients' requirements.
Factory Profile
Jiangsu Baojuhe Science and Technology Co.,Ltd. is located in Heqiao Town Industrial Zone, Yixing District, Wuxi City, Jiangsu Province, China.
Baojuhe is the specialized manufacturer of various steel poles and steel components including street lighting poles, electric power poles, traffic signal poles, flag poles, wind power poles and microwave communication towers, etc.
Through Shanghai Port, which is one of the largest ports in China, we export poles to South America, Middle East, Africa, Australia, Philippines and other countries around the world.
Delivery
We normally use 40HQ containers and our Port limit weight for one 40HQ is 26 tons.
FAQ:
1. Port of Loading: Shanghai, China
2. Price term: EXW,FOB,CFR AND CIF.
3. Payment Term: 30%TT in deposit, 70%TT before shipment. Or LC.
4. Delivery: Based on your order quantity. Normally 15 days after receiving your deposit.
