Product Details:
Payment & Shipping Terms:
|
| Product Name: | Steel Electric Power Poles | Application: | Electric Power Transmission |
|---|---|---|---|
| Material: | Steel | Surface Trement: | Hot Dip Galvanized. |
| Welding: | AWS D 1.1 /BS EN 1011-1,BS EN 1011-2 | Galvanized: | ASTM A 123 |
| Shape: | Polygonal | Zinc Coating: | ≥ 86 Microns |
| High Light: | power transmission poles,composite utility poles |
||

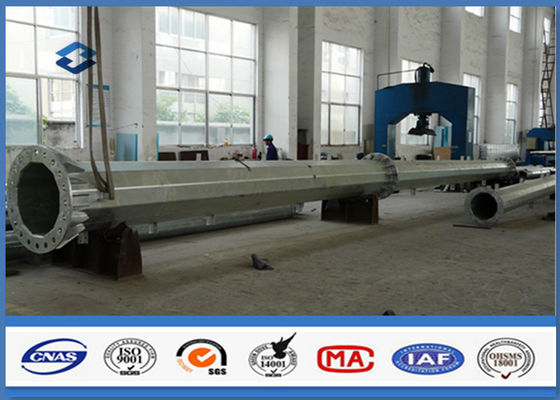

2.5mm - 20mm Wall thickness flange mode Dodecagonal shape electrical service steel pole
Product Show
Material
Applied to the material of general-purpose steel GB/T1591-2008, Q255, Q355, Q420, Q460 used in China.
| China-GB | America-ASTM | Equivalent |
| Q255 | Grade D | SS400,S235JO |
| Q355 | Grade50[345] | S355JR |
| Q420 | Grade60[415] | S420NL |
| Q460 | Grade65[450] | S460NL |
Production Process
Our factory owns advanced production lines, machine including bending calibration machine, hydraulic plate shearing machine, shearing machine, slitting machine, 208T hydraulic straightener, etc. All the purpose is to produce good quality steel poles.
Inspection
To make sure the steel pole quality, we have professional to inspect the poles before delivery. We have Lab Test, Workload Test, Steel thick Test, Galvanization thick Test, etc.
Specification
Galvanized Polygonal Electrical Power Steel Pole in Transmission Line
| Type | Straight Pole ,Tensile Pole ,Turn Pole |
| Shape of pole | Polygonal Octagonal, Dodecagonal, Hexadecagon. |
| CrossArm | Dimension as per customers’ requirement |
|
Material |
Applied to the material of general-purpose steel GB/T1591-2008, Q235, Q345 ,Q460 used in China. Q235 equivalent to SS400, S235JO. Q345 equivalent to S355JR,Grade 50 Q460 equivalent to S460, Grade 65 |
| Wall thickness | 2.5mm to 20mm |
| Welding | Welding complies with CSA and AWS standard and our welders have got corresponding certificate after testing and inspection. |
| Jointing | Joint with insert mode, flange mode, face to face joint mode. |
| Base plate mounted | Base plate is square or round with slotted holes for anchor bolt and dimension as per client’s requirement. |
| Galvanizing | Hot dip galvanized with thickness of min 86 microns on average in accordance with Chinese standard GB/T 13912-2002 or American standard ASTM A123. |
| Powder coating | Color selected by the customers. |
| Wind Resistance | Design as customer’s requirement. |
| Manufacturing | According to GB/T 1591-1994. |
| Fabrication process | Cut plate, bending ,forming, automatic welding, drill holes ,quality check before galvanized, hot dip galvanized , final quality check according by client required |
| Certificates | ISO9001:2008 ; SGS ; AAA credit rating, etc |
| Warranty | 20 years |
Factory Profile
Jiangsu Baojuhe Science and Technology Co.,Ltd. (previous name Jiangsu Bosheng Steel Poles Co.,Ltd.) is located in Heqiao Town Industrial Zone, Yixing District, Wuxi City, Jiangsu Province, China.
Baojuhe is the specialized manufacturer of various steel poles and steel components including street lighting poles, electric power poles, traffic signal poles, flag poles, wind power poles and microwave communication towers, etc.
Through Shanghai Port, which is one of the largest ports in China, we export poles to South America, Middle East, Africa, Australia, Philippines and other countries.
