Q460 Steel Hot Dip Galvanized 110kv Polygonal Pole

Certification
China Jiangsu Baojuhe Science and Technology Co.,Ltd certification
China Jiangsu Baojuhe Science and Technology Co.,Ltd certification
I'm Online Chat Now

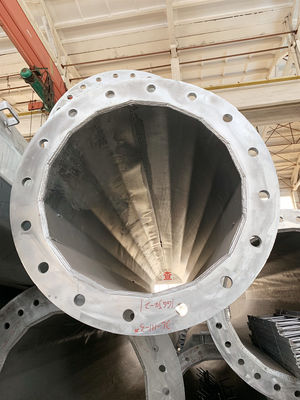

Q460 Steel Hot Dip Galvanized 110kv Polygonal Pole

Q460 Steel Hot Dip Galvanized 110kv Polygonal Pole
Q460 Steel Hot Dip Galvanized 110kv Polygonal Pole

Large Image :  Q460 Steel Hot Dip Galvanized 110kv Polygonal Pole

Product Details:
Place of Origin: China
Brand Name: JSBS
Certification: ISO9001:2008
Model Number: BS/ST - 05
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiation
Packaging Details: Pack the poles with sack or straw or wood or steel strap, etc
Delivery Time: 15 working days after received the downpayment
Payment Terms: T/T OR LC
Supply Ability: 2000Ton per month
Detailed Product Description
Material: Steel Q460 Surface Trement: Hot Dip Galvanized.
Zinc Coating: ≥ 100 Microns Tolerance: +-2%
Shape: Polygonal Accessories: Base Plate, Anchor Bolts, Climbing Rungs
Install: Use Anchor Bolt Life Time: 50 Years
High Light:

110kv polygonal pole

,

q460 steel polygonal pole

,

power transmission polygonal pole

Electric Transmission Line Steel Tower Pole Tubular Power Pole in Polygonal





Specification



Type Flange Type
Shape of pole Polygonal
Material Q460 with min yield strength 460Mpa
Thickness above 5.0mm
Welding

Welding complies with CSA and AWS D1.1 standard

The welders have got corresponding certificate after testing and inspection.

Galvanizing Hot dip galvanization in accordance with Chinese standard GB/T 13912-2002 or American standard ASTM A123.
Fcbrication process Cutting plate, bending, forming, automatic welding, drilling holes, quality check before galvanized, hot dip galvanized, final quality check according to clients' requirement.


Q460 Steel Hot Dip Galvanized 110kv Polygonal Pole 0

Q460 Steel Hot Dip Galvanized 110kv Polygonal Pole 1Q460 Steel Hot Dip Galvanized 110kv Polygonal Pole 2





Characters and advantages



  • Smart appearance
  • Short production
  • Short construction cycle
  • Less land occupation
  • Low overall cost
  • Easy maintenance
  • Q460 Steel Hot Dip Galvanized 110kv Polygonal Pole 3



Material

Applied to the material of general-purpose steel GB/T1591-2008, Q235, Q345, Q420, Q460 used in China.Q460 Steel Hot Dip Galvanized 110kv Polygonal Pole 4

CHINA-GB AMERICA-ASTM EQUIVALENT
Q235 Grand D SS400, S235JO
Q345 Grand50 SS355JR
Q420 Grand60 S420NL
Q460 Grand65 S460NL






Product Equipments


Our factory owns advanced production lines and machines including bending calibration machine, hydraulic plate shearing machine, shearing machine, slitting machine, 208T hydraulic straightener, etc. All the purpose is to produce steel poles with high quality.



Q460 Steel Hot Dip Galvanized 110kv Polygonal Pole 5



Production Process



Q460 Steel Hot Dip Galvanized 110kv Polygonal Pole 6



Packaging and delivery



Because of there is nearly no any accessories on the poles shaft, so most of the clients agree with delivery the 25ft -40ft steel poles without package which is can save the space of the container, and also can save the purchasing cost.
Of course ,if our clients have request or standard for the package of the steel poles, we are also glad to packing the steel poles according to client's request.



Q460 Steel Hot Dip Galvanized 110kv Polygonal Pole 7

Packaging
Packaging Details

1.No packaging, just bare poles to be delivered directly. This is the most economic way.

2.Sack wrap.

3.Non -woven fabtics wrap.

Also can following by clients' requirements

Delivery
Time It depends on your quantity. Normally within 30 working days.

Delivery

Details

1.We normally use 40ft container and our port limit weight for 40ft container is 26 Tons.

2.If poles are with flange or in order to avoid scratch on poles during delivery, we will use 40ft open top container, which is a bit more costive than the 40ft container.





Company profie

Q460 Steel Hot Dip Galvanized 110kv Polygonal Pole 8

Jiangsu Baojuhe Science and Technology Co.,Ltd. (the previous name is Jiangsu Bosheng Steel Poles Co.,Ltd. founded in 2013), is located in Heqiao Town Industrial Zone, Yixing District, Wuxi City, Jiangsu Province. Bosheng is the specialized manufacturer of various steel poles including street lighting poles, electric power poles, traffic signal poles, flag poles, wind power poles and microwave communication towers, etc.



Q460 Steel Hot Dip Galvanized 110kv Polygonal Pole 9

Q460 Steel Hot Dip Galvanized 110kv Polygonal Pole 10Q460 Steel Hot Dip Galvanized 110kv Polygonal Pole 11Q460 Steel Hot Dip Galvanized 110kv Polygonal Pole 12



Testing plant

When the raw material arrives at the warehouse, the quality department must take testing to make sure the raw material have meet all the standard that the needed before production. Before galvanization, we will check the pole quality during the fabrication process from cutting raw plate, bending/forming, automatic welding to drilling holes, Then after hot dip galvanization, we will check th diameters, aglvanization thickness and do th load test according to clients' different requirements and then deliver the poles on time based on the contract.

Q460 Steel Hot Dip Galvanized 110kv Polygonal Pole 13



Terms and Conditions


1. Price Term: EXW, FOB, CFR or CIF.



Ø EXW: Poles Cost

Ø FOB : Pole Cost + Land Transportation + Fee on Port

Ø CFR : Pole Cost + Land Transportation + Fee on Port + Sea Freight

Ø C I F : Pole Cost + Land Transportation + Fee on Port + Sea Freight + Insurance.



2. MOQ: One 40FT Container.


3. Payment Term: Typically 30% by T/T as a deposit, balance by T/T or L/C at sight before shipment. Other

    payment way can be negotiated.



FAQ

1. Are you a manufacturer or a trading company?
A:We are the direct factory manufacturer and the trading company.
2. Where is your company located?
A:Our factory is located in Industrial Zone No.37, Heqiao Town, Yixing District, Wuxi City, Jiangsu Province, China(mainland).
3. What are your main products?
A:Our main products are electric poles, street lighting poles, high mast pole, telecommunication tower poles, traffic signal
poles, wind generation poles, etc.
4. What's your nearest port?
A: Shanghai Port.
5. What's your payment term?
A: Normally 30% deposit and rest by TT before shipping. Or L/C.
6. What's your delivery time?
A: It depends on your quantity. Normally within 30 working days.
